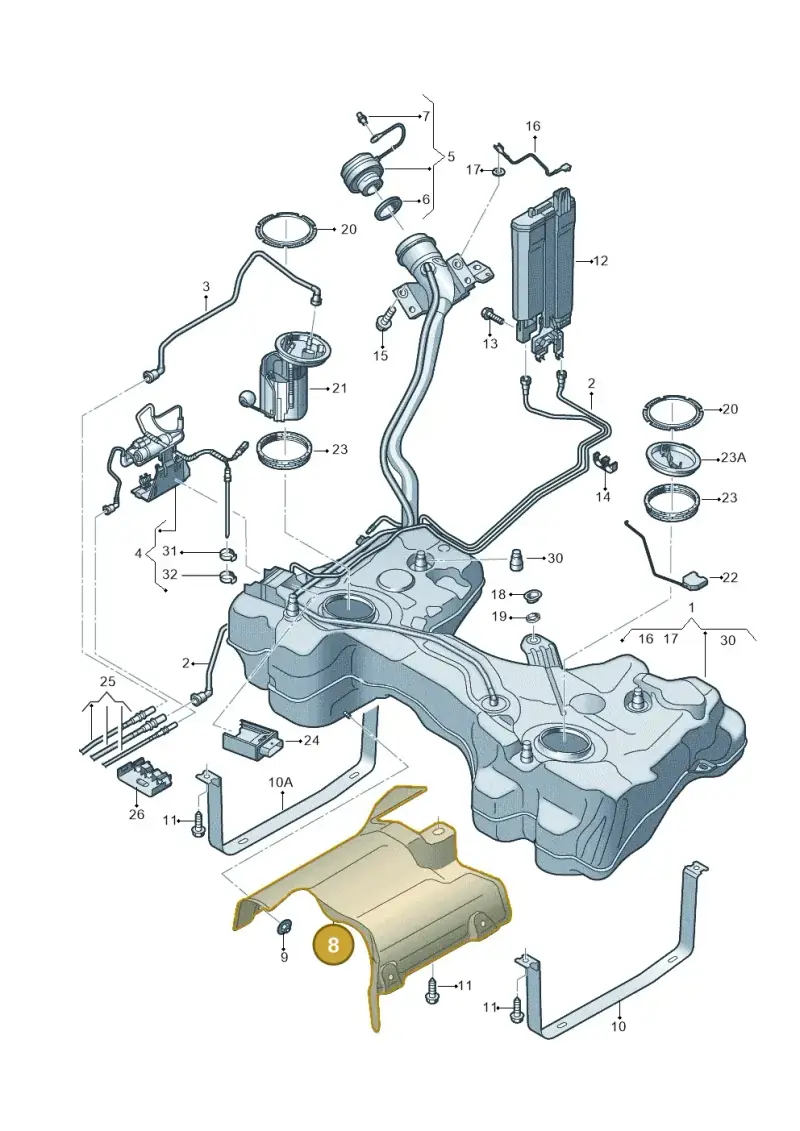

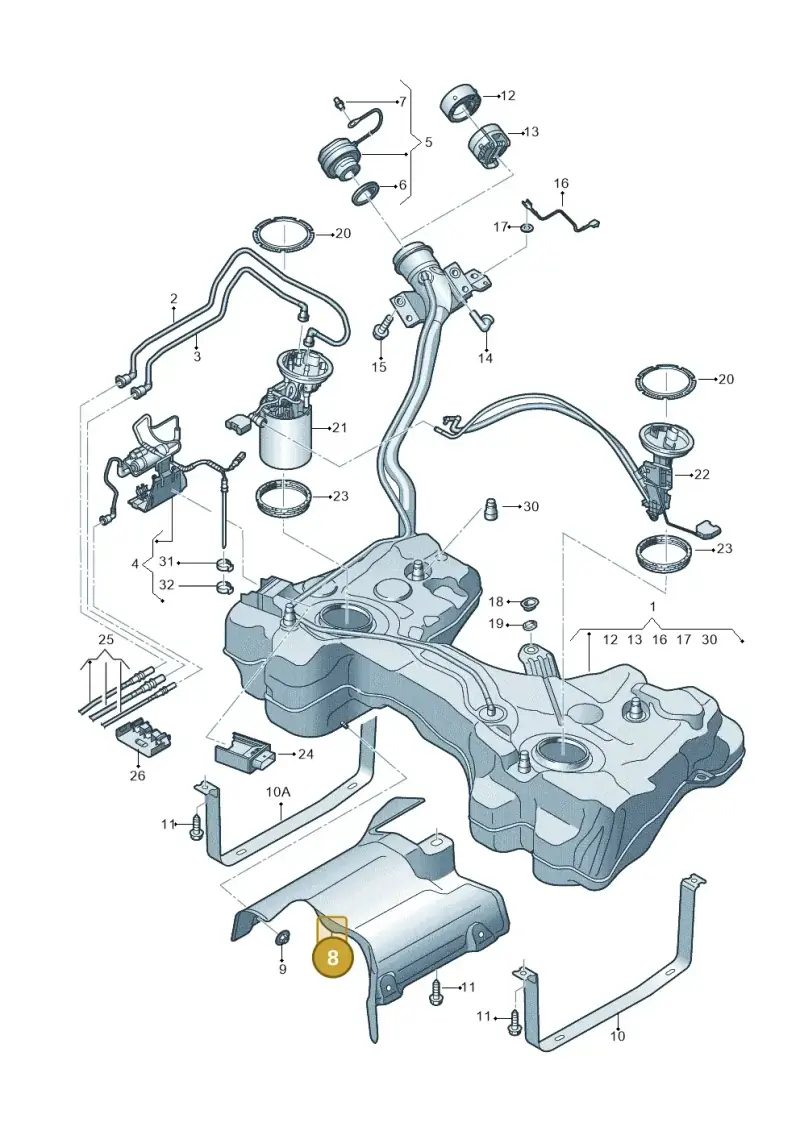

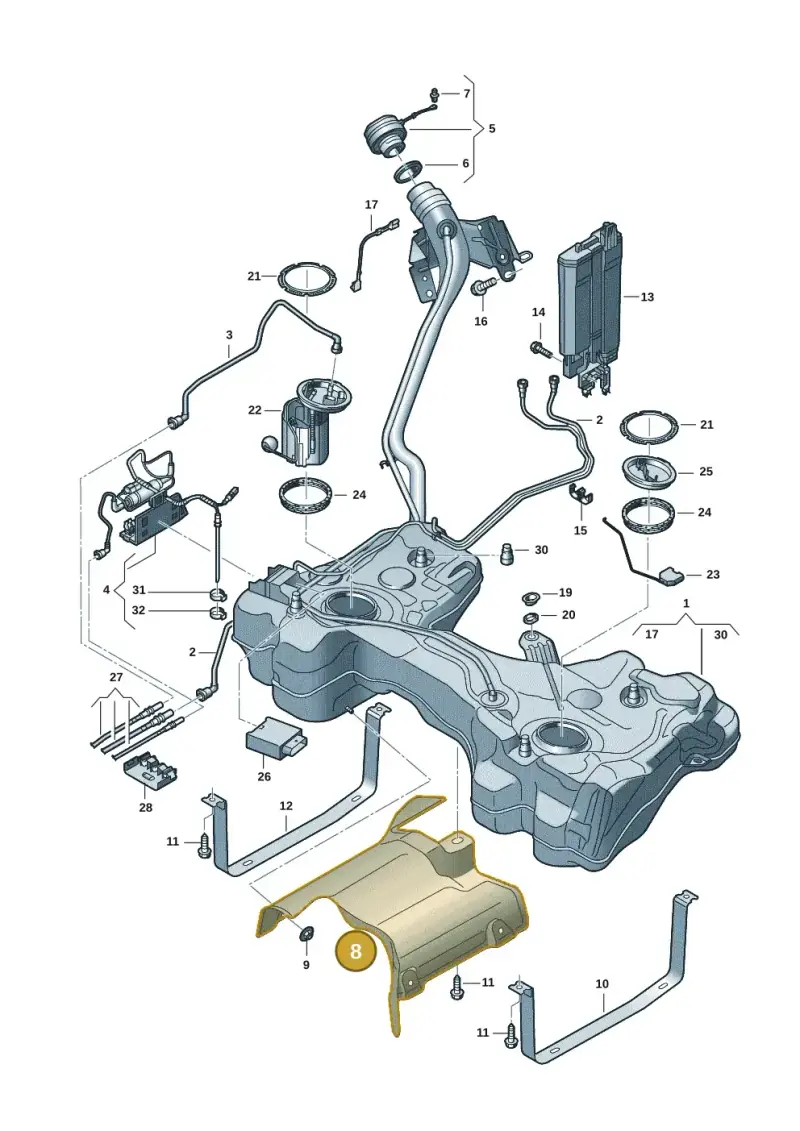

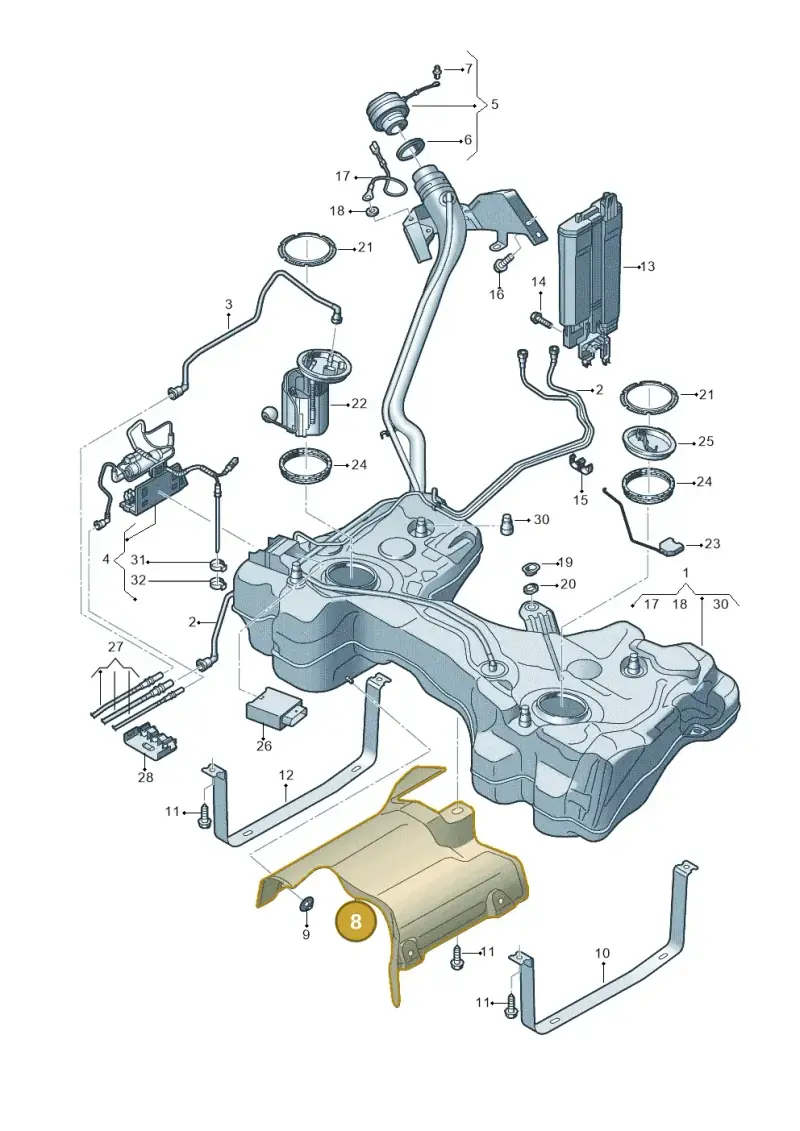

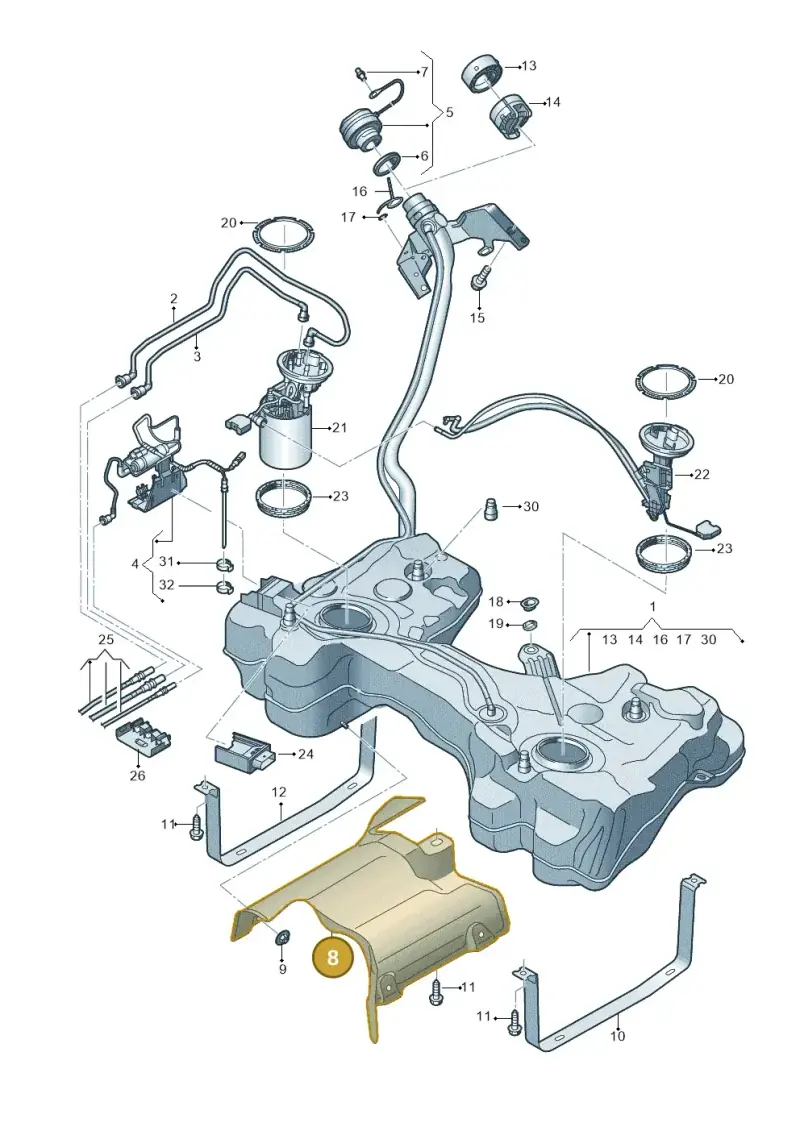

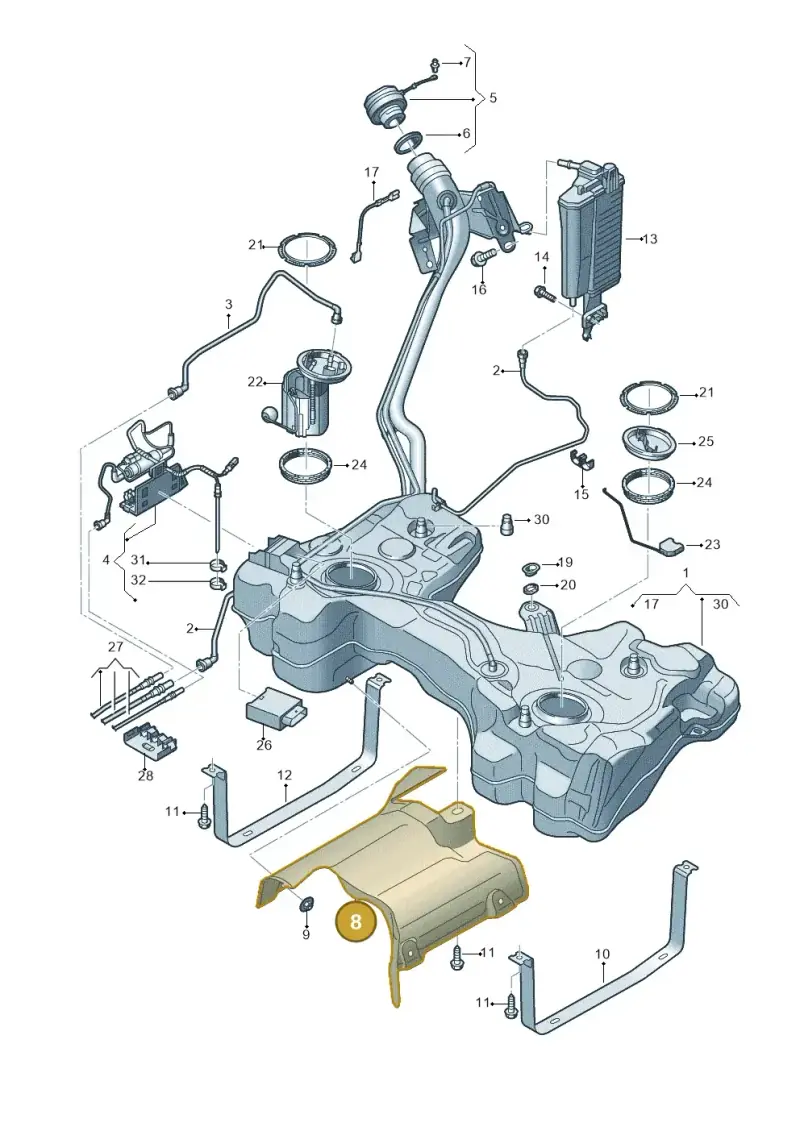

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Insulating Sheet, part number 5Q0201307S. This sheet is designed to insulate and protect the fuel tank assembly from excessive heat generated by other vehicle components. It is positioned beneath the fuel tank. Genuine OEM heat insulating sheets are made from materials that meet strict thermal resistance and durability standards, ensuring effective protection and longevity.
Technical details
- Category
- Fuel System
- Country of origin
- Slovakia
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 60 × 54 × 20.1 cm
- Shipping weight
- 0.47 kg
Parts diagram & fitment
21 vehiclesHeat Sh — locate 5Q0201307S Volkswagen Heat Insulating Sheet | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(38)
- 1Container 5Q0201055AA
- 1Container 5Q0201055AC
- 1Container 5Q0201055AQ
- 1Container 5Q0201055BA
- 1Container 5Q0201055BE
- 1Container 5Q0201055J
- 1Container 5Q0201055
- 3Seal Ring 1J0919133B
- 3Seal Ring 1K0919133D
- 4Part 1K0201375
- 5Line 5Q0201931G
- 5Line 5Q0201931K
- 5Line 5Q0201931N
- 5Line 5Q0201931F
- 7Fuel Line 5Q0201293E
- 8Heat Sh 5Q0201307D
- 9Part N91068501
- 10Part 5Q0201607L
- 10Part 5Q0201607E
- 11Strap 5Q0201653
- 12Strap 5Q0201654
- 13Bush 5Q0201693
- 14Bolt N0195308
- 15Flange 5Q0919679
- 17Rubber Bush 5Q0201840
- 20Container 5Q0201801
- 21Bolt N10240003
- 22Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550F
- 22Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550H
- 22Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550N
- 22Ap&cap With Retaining Strap For Fuel Tank Cap 3C0201550P
- 23Clip 5Q0201449E
- 24Bolt N90693804
- 25Clip 1H0201449C
- 27Prot Plate 5Q0201974E
- 28Bracket 5Q0201519
- 29Seal Ring 1K0201557A
- 30Pop Rivet N90994201
Diagrams & fitment data powered by oemdiagrams.com
5Q0201307S Volkswagen Heat Insulating Sheet | Genuine OEM is fitted on: Audi A3 Sportback 2012-2016; Audi A3 Cab. 1.4 2013-2016; Audi Q2 2.0 TDI 2016-2018; Audi TTS Coupe 2.0 2014-2023; Audi RS3 Limousine 2017-2020; Audi RS3 Sportback 2015-2016; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Audi TTRS Coupe 2016-2023; POLO HATCH "ZA"06> 2005-; Golf 1.4 BlueMotion 2012-2017; Golf Estate 2013-2017; Golf Estate 1.4 2014-2017; T-Roc BlueMotion 2017-2024; golf 2.0 2016-2020; Formentor TSI CUPRA 2020-; Leon ST Stylance 2012-2016; Leon ST Stylance 2016-2020; Ateca Style 2016-; Octavia 2017-2020; Karoq 2017-2022.
