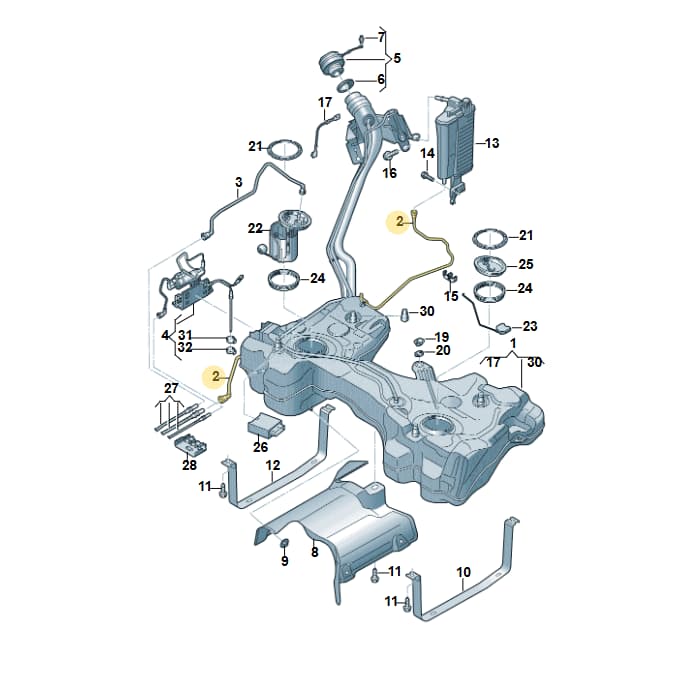

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Lock Line, part number 5Q0201931AD. This line is a critical component within the fuel tank system, often associated with the fuel tank's locking or venting mechanism. It is located as part of the complex network of lines and hoses connected to the main fuel tank. The line weighs 0.098 kg and has a length of 1.22 meters. Opting for a genuine OEM fuel line ensures precise routing, material compatibility with fuel, and resistance to degradation, preventing leaks and maintaining system integrity.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 122 × 43 × 8.5 cm
- Shipping weight
- 0.1 kg
Parts diagram & fitment
5 vehiclesBreather Line — locate 5Q0201931AD Volkswagen Fuel Tank Lock Line | Fuel System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(28)
- 1Container 5Q0201055DA
- 1Container 5Q0201055DG
- 1Container 5Q0201055BS
- 2Module 5Q0919087AH
- 3Sender 5Q0919673AK
- 4Seal Ring 1K0919133D
- 5Part 1K0201375
- 6Fuel Line 5Q0201293AN
- 6Fuel Line 5Q0201293E
- 8Metering 5Q0201607L
- 10Clip 5Q0201250K
- 11Strap 5Q0201654A
- 12Bolt N91229601
- 14Strap 5Q0201653A
- 17Heat Sh 5Q0201307S
- 18Part N91068501
- 19Bolt N0195307
- 20Line 5Q0201931N
- 21Part 5Q0201550J
- 22Bolt N90693804
- 25Control Unit 5Q0906093
- 26Clip 1H0201449C
- 27Sender 5Q0919673AC
- 28Flange 5Q0919679
- 30Loom 5Q0971727D
- 31Part 6Q0973853
- 32Part 1J0973752
- 33Part 6N0973755
Diagrams & fitment data powered by oemdiagrams.com
5Q0201931AD Volkswagen Fuel Tank Lock Line | Fuel System is fitted on: Audi Q2 2.0 TDI 2016-2018; Formentor TSI CUPRA 2020-; Ateca Style 2016-; T-Roc BlueMotion 2017-2024; Karoq 2017-2022.
