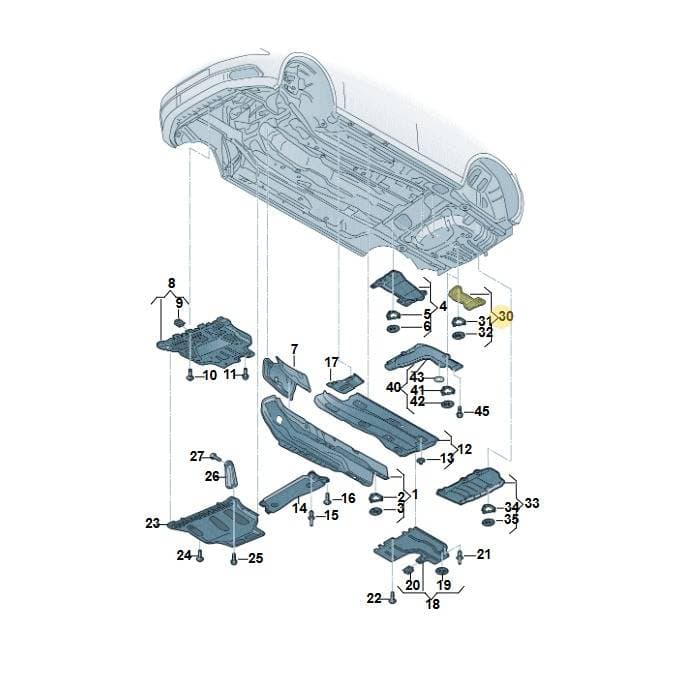

Number 30 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Side Panel Heat Shield, part number 5Q0825721D. This heat shield protects the side panel area from excessive heat. It is mounted on the side of the vehicle's underbody. Made from heat-resistant material to ensure component longevity.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 48.5 × 18 × 9.5 cm
- Shipping weight
- 0.11 kg
Parts diagram & fitment
3 vehiclesHeat Shield For Floor Panel — locate 5Q0825721D Volkswagen Side Panel Heat Shield | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0825721E — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(31)
- 1Heat Sh 5Q0825661BS
- 2Washer WHT003386
- 3Washer N90335004
- 4Heat Sh 5Q0825729
- 7Insulation 3Q0825469
- 8Insulation 3Q0825235A
- 8Insulation 5Q0825236P
- 8Insulation 5Q0825236Q
- 9Part N90959101
- 10Bolt N90974701
- 11Bolt WHT000729A
- 12TrimRight5Q0825202L
- 12TrimLeft5Q0825201L
- 13Collar Nut WHT000713
- 14Trim 5Q0825229C
- 15Spring Rivet N0385494
- 17CoverRight5Q0825272A
- 17CoverLeft5Q0825271A
- 18Trim 5Q0825206J
- 18Trim 5Q0825206K
- 23Underrun 3Q0825902
- 25Bolt N0195307
- 26Bracket MtRight5Q0825922
- 26Bracket MtRight5Q0825922A
- 26Bracket MtLeft5Q0825921
- 27Screw N90755902
- 30Heat Sh 5Q0825721F
- 33Part 5Q0825197C
- 33Part 5Q0825197E
- 33Heat Sh 5Q0825701E
- 33Heat Sh 5Q0825701C
Diagrams & fitment data powered by oemdiagrams.com
5Q0825721D Volkswagen Side Panel Heat Shield | Genuine OEM is fitted on: Golf 1.4 BlueMotion 2012-2017; Golf 1.4 BlueMotion 2014-2017; Audi A3 Sportback 2012-2016.
