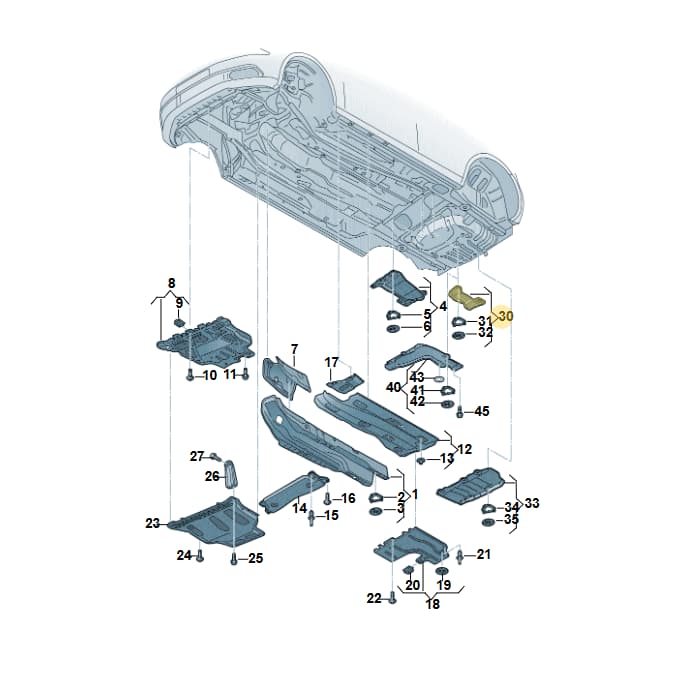

Number 30 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Insulation Sheet, part number 5Q0825721F. This component is designed to protect the vehicle's underbody from excessive heat generated by exhaust systems or other powertrain components. It is typically installed on the floor pan or near heat-producing parts. Made from specialized heat-resistant materials, it effectively dissipates thermal energy. Genuine OEM heat insulation sheets are engineered for precise fitment and optimal thermal management.
Technical details
- Category
- Electrical & Wiring
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 48 × 23 × 9.5 cm
- Shipping weight
- 0.11 kg
Parts diagram & fitment
5 vehiclesHeat Shield For Floor Panel — locate 5Q0825721F Volkswagen Heat Insulation Sheet | Underbody in the official exploded view and explore the surrounding assembly.
Parts in this assembly(31)
- 1Heat Sh 5Q0825661BS
- 2Washer WHT003386
- 3Washer N90335004
- 4Heat Sh 5Q0825729
- 7Insulation 3Q0825469
- 8Insulation 3Q0825235A
- 8Insulation 5Q0825236P
- 8InsulationRight5Q0825236Q
- 9Part N90959101
- 10Bolt N90974701
- 11Bolt WHT000729A
- 12TrimRight5Q0825202L
- 12TrimLeft5Q0825201L
- 13Collar Nut WHT000713
- 14Trim 5Q0825229C
- 15Spring Rivet N0385494
- 17CoverRight5Q0825272A
- 17CoverLeft5Q0825271A
- 18Trim 5Q0825206J
- 18Trim 5Q0825206K
- 23Underrun 3Q0825902
- 25Bolt N0195307
- 26Bracket MtRight5Q0825922
- 26Bracket MtRight5Q0825922A
- 26Bracket MtLeft5Q0825921
- 27Screw N90755902
- 30Heat Sh 5Q0825721D
- 33Part 5Q0825197C
- 33Part 5Q0825197E
- 33Heat Sh 5Q0825701E
- 33Heat Sh 5Q0825701C
Diagrams & fitment data powered by oemdiagrams.com
5Q0825721F Volkswagen Heat Insulation Sheet | Underbody is fitted on: Golf 1.4 BlueMotion 2012-2017; Golf Estate 2013-2017; Golf Sportsvan 1.6 2014-2020; golf 2.0 2016-2020; golf 1.6 2015-2019.
