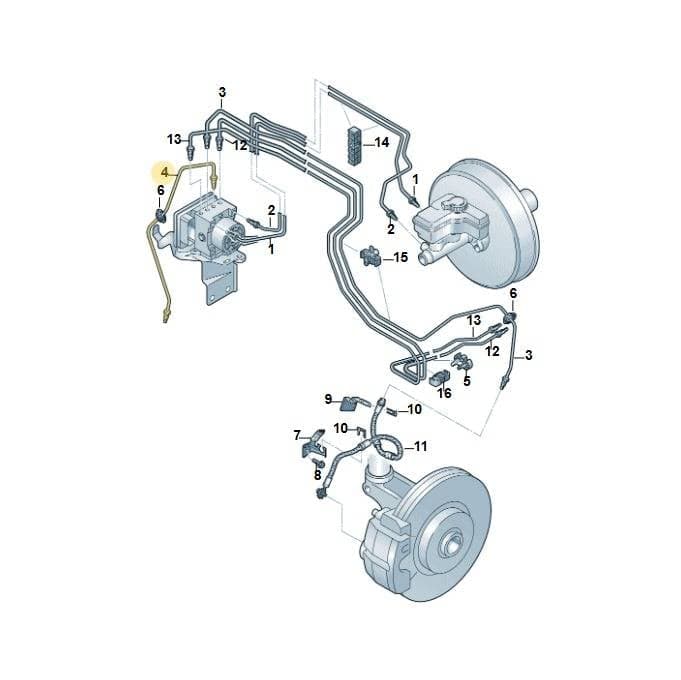

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Brake Line Heat Protection Sleeve, part number 5Q1614724. This sleeve is designed to shield the brake lines from high temperatures, particularly in areas close to exhaust components or other heat sources, preventing premature degradation of the brake fluid and lines. It is typically made of a heat-resistant material. The part weighs approximately 0.053 kg. Genuine OEM heat protection sleeves are critical for ensuring the longevity and consistent performance of the brake lines under demanding conditions.
Technical details
- Category
- Brakes
- Country of origin
- Czech Republic
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 30 × 11 × 7.3 cm
- Shipping weight
- 0.05 kg
Parts diagram & fitment
15 vehiclesBrake Pipe From Hydraulics To Brake Hose — locate 5Q1614724 Volkswagen Brake Line Heat Protection Sleeve | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Superseded by 5Q1614724A — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(35)
- 1Brake PipeRight5Q2614739D
- 1Brake PipeLeft5Q1614739D
- 1Brake PipeLeft5Q1614739E
- 1Brake PipeLeft5Q1614739F
- 2Brake PipeRight5Q2614740B
- 2Brake PipeRight5Q2614740C
- 2Brake PipeLeft5Q1614740B
- 2Brake PipeLeft5Q1614740C
- 3Brake PipeRight5Q2614723B
- 3Brake PipeRight5Q2614723C
- 3Brake PipeLeft5Q1614723C
- 3Brake PipeLeft5Q1614723D
- 4Brake PipeRight5Q2614724
- 4Brake PipeLeft5Q1614724A
- 5Bracket 1K0611853
- 6Grommet 1K0611751
- 7RetainerRight5Q0611842B
- 7RetainerLeft5Q0611841A
- 8Screw N10703001
- 9RetainerRight5Q0611846B
- 9RetainerLeft5Q0611845B
- 10Bracket 191611715
- 11Brake Hose 5Q0611701C
- 12Brake PipeLeft5Q1614725AD
- 12Brake PipeLeft5Q1614725R
- 12Brake PipeRight5Q2614725AA
- 12Brake PipeRight5Q2614725M
- 12Brake PipeLeft5Q1614725J
- 13Brake PipeLeft5Q1614726F
- 13Brake PipeLeft5Q1614726N
- 13Brake PipeRight5Q2614726J
- 13Brake PipeLeft5Q1614726C
- 14Bracket 5Q0611797A
- 15Bracket 5Q0611797E
- 16Clip 6R0611797D
