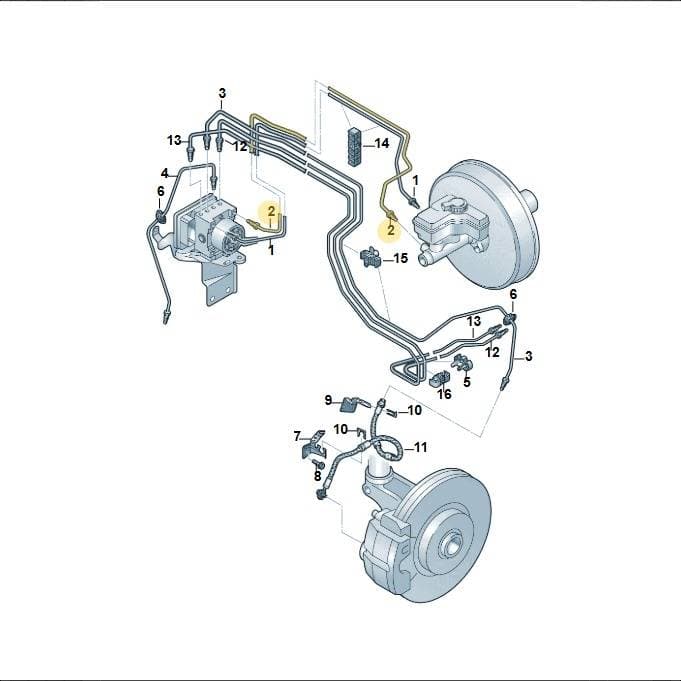

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Brake Pipe, part number 5Q2614740B. This metal brake pipe connects directly to the ABS unit, facilitating the transport of brake fluid within the hydraulic system. It is a critical component for proper braking function. Genuine OEM brake pipes ensure precise fitment and material integrity for reliable brake system operation.
Technical details
- Category
- Brakes
- Country of origin
- Czech Republic
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 80.5 × 20.5 × 7.5 cm
- Shipping weight
- 0.13 kg
Parts diagram & fitment
6 vehiclesBrake Pipe — locate 5Q2614740B Volkswagen Brake Pipe | ABS Unit in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Superseded by 5Q2614740C — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(33)
- 1Brake PipeLeft5Q1614739E
- 1Brake PipeRight5Q2614739D
- 1Brake PipeLeft5Q1614739D
- 2Brake PipeLeft5Q1614740B
- 2Brake PipeRight5Q2614740C
- 2Brake PipeLeft5Q1614740
- 3Brake PipeRight5Q2614723A
- 3Brake PipeRight5Q2614723B
- 3Brake PipeLeft5Q1614723B
- 3Brake PipeLeft5Q1614723C
- 4Brake PipeRight5Q2614724
- 4Brake PipeLeft5Q1614724
- 5Bracket 1K0611853
- 6Grommet 1K0611751
- 7RetainerRight5Q0611842A
- 7RetainerRight5Q0611842B
- 7RetainerLeft5Q0611841A
- 8Screw N10703001
- 9RetainerRight5Q0611846B
- 9RetainerLeft5Q0611845B
- 10Bracket 191611715
- 11Brake Hose 5Q0611701C
- 12Brake PipeLeft5Q1614725L
- 12Brake PipeRight5Q2614725G
- 12Brake PipeRight5Q2614725P
- 12Brake PipeLeft5Q1614725D
- 13Brake PipeLeft5Q1614726H
- 13Brake PipeRight5Q2614726D
- 13Brake PipeRight5Q2614726L
- 13Brake PipeLeft5Q1614726A
- 14Bracket 5Q0611797A
- 15Bracket 5Q0611797C
- 16Clip 6R0611797D
Diagrams & fitment data powered by oemdiagrams.com
5Q2614740B Volkswagen Brake Pipe | ABS Unit is fitted on: Audi A3 Sportback 2012-2016; Audi A3 Cab. 1.4 2013-2016; Golf 1.4 BlueMotion 2012-2017; Golf Estate 2013-2017; Leon ST Stylance 2012-2016; Octavia 2012-2017.
