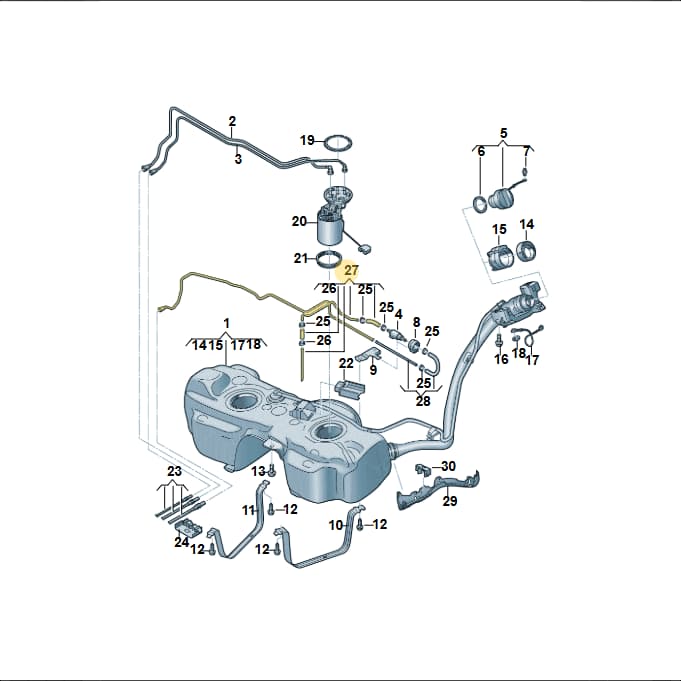

Number 27 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line, part number 5R3201361F. This critical component is responsible for safely transporting fuel from the fuel tank towards the engine, maintaining a consistent and reliable fuel supply for combustion. It is an integral part of the vehicle's fuel delivery system. Weighing approximately 0.034 kg, this genuine OEM fuel line is constructed from materials resistant to fuel corrosion and high pressures, ensuring leak-free operation and precise routing, which is essential for both safety and engine performance.
Catalogue entry: FUEL LINE; for vehicles with auxiliary.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 30 × 19 × 18 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 9M9
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

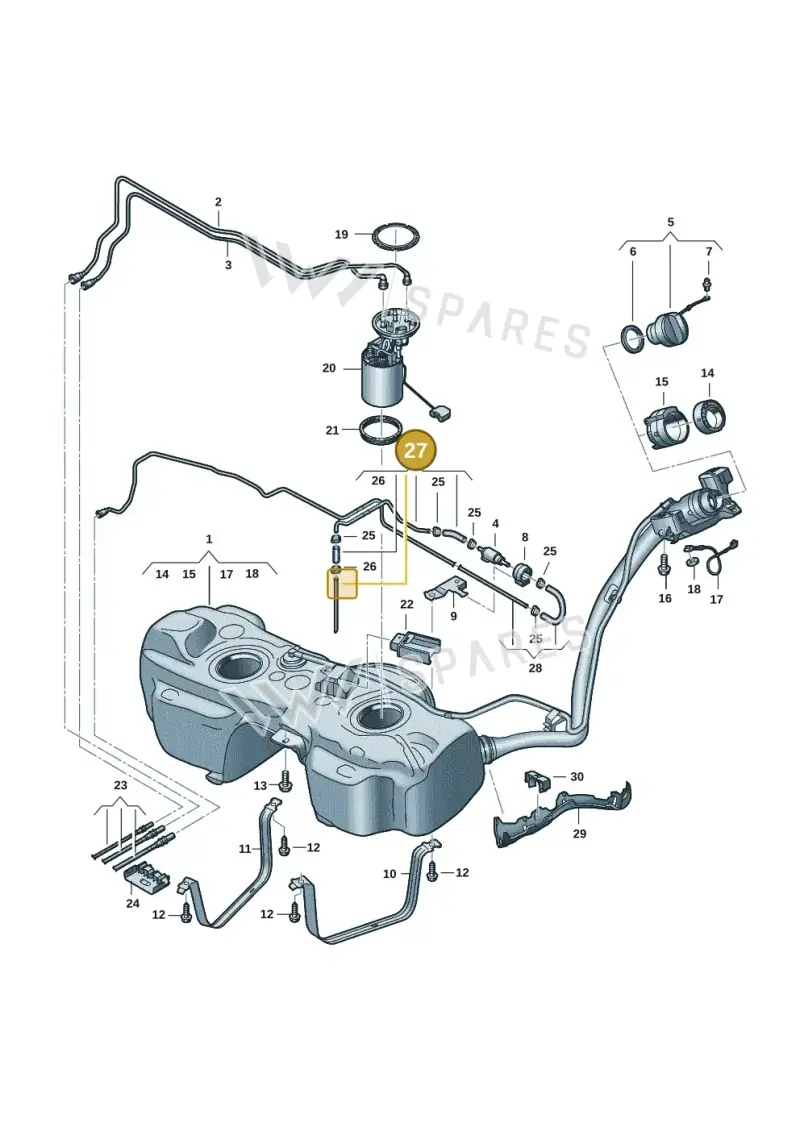

1 vehicleFuel Line — locate 5R3201361F Volkswagen Fuel Line | Fuel System in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Container 5R3201060F
- 1Container 5R3201060J
- 1Container 5R3201060D
- 1Container 5R3201060H
- 2Fuel Line 5R3201293C
- 2Fuel Line 5R3201293E
- 2Fuel Line 5R3201293F
- 2Fuel Line 5R3201293H
- 3Fuel Line 5R3201294B
- 3Fuel Line 5R3201294C
- 3Fuel Line 5R3201294D
- 3Fuel Line 5R3201294E
- 4Pump 7N0963303A
- 8Bracket 7E0813549
- 9Bracket 5R3201938
- 10Strap 5R3201656C
- 10Strap 5R3201656D
- 11Strap 5R3201656B
- 11Bolt N91229601
- 12Ring 4M0201115
- 13Ins Piece 4H0201112A
- 13Bolt N10240003
- 14Bolt N10699802
- 18Part 1K0201375
- 24Clamp N10203501
- 25Clamp N10198301
- 26Fuel Line 5R3201361D
- 27Fuel Line 5R3201361E
- 28Fuel Line 5R3201361C
- 29Shield Plt 5R3201975
- 30Clip 5R3201250
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Caddy Maxi Kombi | 2020-2024 | 27 |
Diagrams & fitment data powered by oemdiagrams.com
5R3201361F Volkswagen Fuel Line | Fuel System is fitted on: Caddy Maxi Kombi 2020-2024.
