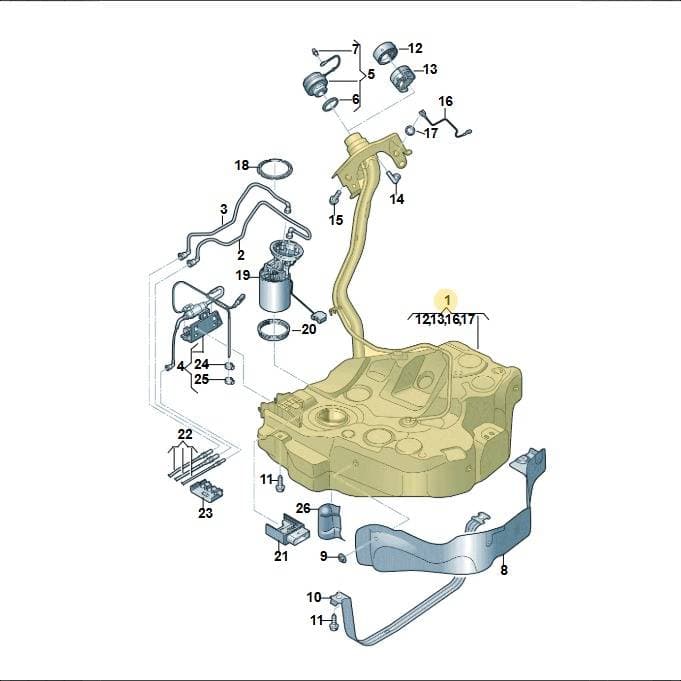

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank, part number 5WA201060AC. This fuel tank is responsible for storing and supplying fuel to the engine. It is identified as part 1 in the diagram. The approximate dimensions are 1.4 meters in length, 1.2 meters in width, and 0.73 meters in height. Genuine OEM fuel tanks are manufactured to exact specifications, ensuring proper fitment, material integrity, and resistance to fuel degradation, which is crucial for safe and efficient operation.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 140 × 120 × 73 cm
- Shipping weight
- 7.59 kg
Parts diagram & fitment
2 vehiclesFuel Tank — locate 5WA201060AC Volkswagen Fuel Tank | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(28)
- 1Container 5Q0201060EK
- 1Container 5WA201060AD
- 1Container 5WA201060G
- 2Fuel Line 5Q0201294M
- 2Fuel Line 5WA201294C
- 3Fuel Line 5Q0201293R
- 3Fuel Line 5WA201293G
- 4Metering 5Q0201607AC
- 8Heat Sh 5Q0201307Q
- 8Heat Sh 5WA201307C
- 8Heat Sh 5WA201307D
- 8Heat Sh 5WA201307E
- 8Heat Sh 5Q0201307AA
- 9Heat Insul 5WA201308
- 9Part N91068501
- 10Strap 5Q0201656G
- 10Strap 5WA201656
- 11Bolt N91229601
- 12Ring 4H0201115A
- 13Ins Piece 4H0201112A
- 14End Piece 895201890
- 15Bolt N90693804
- 16Line 5Q0201142A
- 16Line 5WA201142D
- 17Pop Rivet N91256401
- 18Part 1K0201375
- 24Clamp N10203501
- 25Clamp N10056801
Compatible / alternative parts(8)
Diagrams & fitment data powered by oemdiagrams.com
5WA201060AC Volkswagen Fuel Tank | Genuine OEM is fitted on: Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024.
