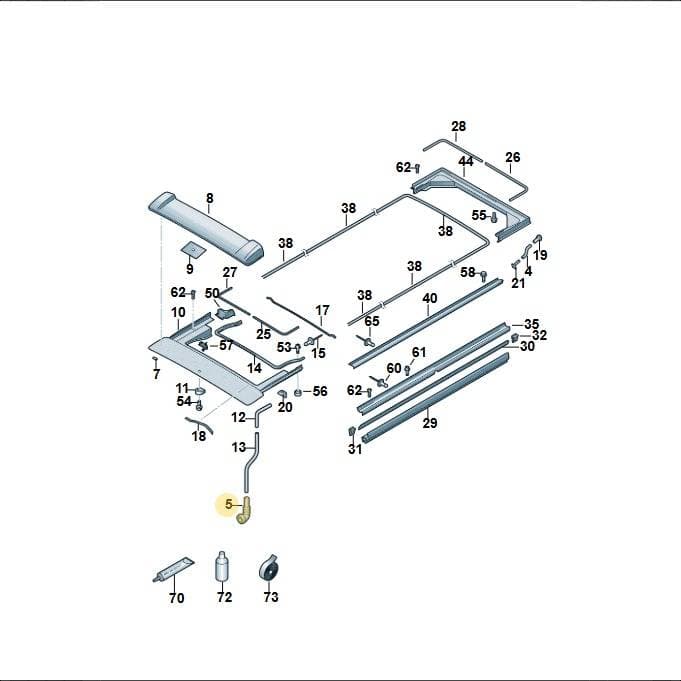

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Drain Tube, part number 6X0877236A. This tube directs liquid away from a specific area to prevent accumulation or damage. It is located at position 5 in the diagram. Genuine OEM drain tubes are designed with precise dimensions and material properties to ensure effective water management.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 40169957
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 7 × 3.5 × 3 cm
- Shipping weight
- 0.01 kg
Parts diagram & fitment
30 vehiclesDrain Tube — locate 6X0877236A Volkswagen Drain Tube | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 7H0877221A — the later replacement part.
Parts in this assembly(48)
- 4Hose 7H7067800C
- 7Washer N01152527
- 8Part 7E7875760
- 9Plate 7E7875599
- 10Part 7LA875107A
- 10Part 7LA875107B
- 11Bracket 7E7875517
- 12Connector Piece 7H7875537C
- 13Hose 7H0877221A
- 14Profile 7H7875119B
- 14Profile 7H7875120A
- 15Pop Rivet N91094501
- 17Rubbers 7H7875129
- 18Prot Film 7E7853980
- 18Prot Film 7E7853979
- 19Drain Tube 7H7875210A
- 20PartRight7E7875212
- 20PartRight7H7875212
- 20PartLeft7E7875211
- 20PartLeft7H7875211
- 21Drain TubeRight7H7875212A
- 21Drain TubeLeft7H7875211A
- 25Strip 7H7875261
- 26Strip 7H7875261A
- 27Strip 7H7875262B
- 28Strip 7H7875262C
- 29Part 7H7875303
- 30PartRight7H7875312
- 30PartLeft7H7875311
- 31PartLeft7H7875315A
- 31PartRight7H7875316A
- 32PartRight7H7875318
- 32PartLeft7H7875317
- 35ChannelLeft7E7875323
- 35ChannelRight7E7875324
- 35ChannelLeft7E8875323
- 35ChannelRight7E8875324
- 38Rubbers 7H7875329A
- 40Roof FrameRight7H7875332A
- 40Roof Frame 7E7875332
- 40Roof FrameLeft7H7875331
- 44Reinforce 7E7875341
- 50PartRight7H7875848C
- 50PartLeft7H7875847D
- 53Screw N90897308
- 54Bolt N10668301
- 56Part N91029301
- 57Part 7H0817940A
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
6X0877236A Volkswagen Drain Tube | Genuine OEM is fitted on: caravelle 2019-2024; POLO 2001-2005; POLO "CN"02>06 2002-2006; POLO HATCH "BR."07> 2006-; TRANSPORTER 2003-2005; POLO CLASSIC "ZA"03>05 2003-2005; CAMPMOBILE(T5) 2004-2006; POLO 2005-; TRANSPORTER/4MOTION 06 2005-2006; POLO CLASSIC "ZA"05> 2005-; Polo 2011-2014; polo sedan 2011-2014; POLO JIN QIN "CN"06> 2006-; TRANSPORTER/4MOTION 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; CAMPMOBIL-T5 08 2007-; Polo 2008-2009; transp. caravelle 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; California Camper 2011-2015; caravelle 2015-2019; California Camper 2015-2019; IBIZA 2001-2005; CORDOBA/SE241 2002-2005; IBIZA 06> 2005-; CORDOBA 06> 2005-.
