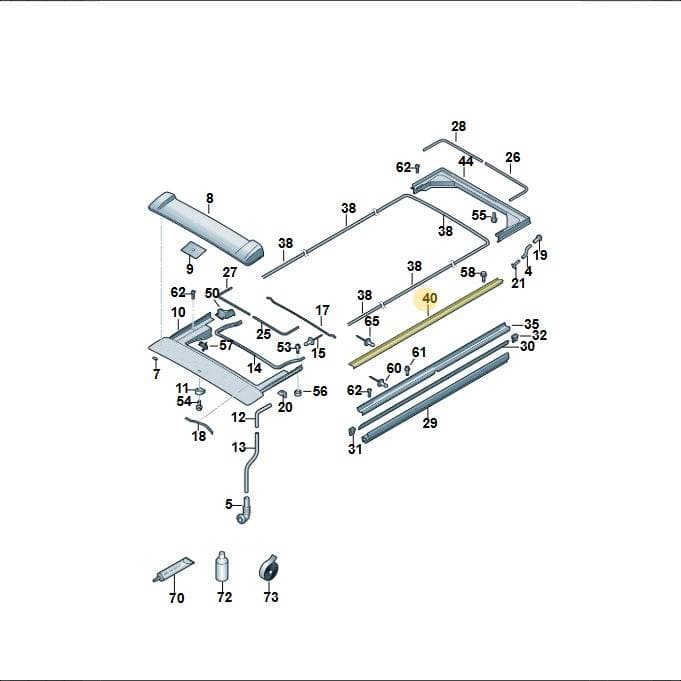

Number 40 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Roof Frame Reinforcement, part number 7H7875331. This part strengthens and supports the vehicle's roof frame, contributing to overall body rigidity and safety. It is located at position 40 in the diagram. The significant weight and dimensions suggest it is a structural component. Genuine OEM structural parts are engineered with precise material properties and tolerances for safety and integrity.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 180 × 11.1 × 11 cm
- Shipping weight
- 3.49 kg
Parts diagram & fitment
13 vehiclesRoof Frame Reinforcement — locate 7H7875331 Volkswagen Roof Frame Reinforcement | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(48)
- 4Hose 7H7067800C
- 5Drain Tube 6X0877236A
- 7Washer N01152527
- 8Part 7E7875760
- 9Plate 7E7875599
- 10Part 7LA875107A
- 10Part 7LA875107B
- 11Bracket 7E7875517
- 12Connector Piece 7H7875537C
- 13Hose 7H0877221A
- 14Profile 7H7875119B
- 14Profile 7H7875120A
- 15Pop Rivet N91094501
- 17Rubbers 7H7875129
- 18Prot Film 7E7853980
- 18Prot Film 7E7853979
- 19Drain Tube 7H7875210A
- 20PartRight7E7875212
- 20PartRight7H7875212
- 20PartLeft7E7875211
- 20PartLeft7H7875211
- 21Drain TubeRight7H7875212A
- 21Drain TubeLeft7H7875211A
- 25Strip 7H7875261
- 26Strip 7H7875261A
- 27Strip 7H7875262B
- 28Strip 7H7875262C
- 29Part 7H7875303
- 30PartRight7H7875312
- 30PartLeft7H7875311
- 31PartLeft7H7875315A
- 31PartRight7H7875316A
- 32PartRight7H7875318
- 32PartLeft7H7875317
- 35ChannelLeft7E7875323
- 35ChannelRight7E7875324
- 35ChannelLeft7E8875323
- 35ChannelRight7E8875324
- 38Rubbers 7H7875329A
- 40Roof FrameRight7H7875332A
- 40Roof Frame 7E7875332
- 44Reinforce 7E7875341
- 50PartRight7H7875848C
- 50PartLeft7H7875847D
- 53Screw N90897308
- 54Bolt N10668301
- 56Part N91029301
- 57Part 7H0817940A
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
7H7875331 Volkswagen Roof Frame Reinforcement | Genuine OEM is fitted on: caravelle 2019-2024; CAMPMOBILE(T5) 2004-2006; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; California Camper 2011-2015; caravelle 2015-2019; California Camper 2015-2019.
