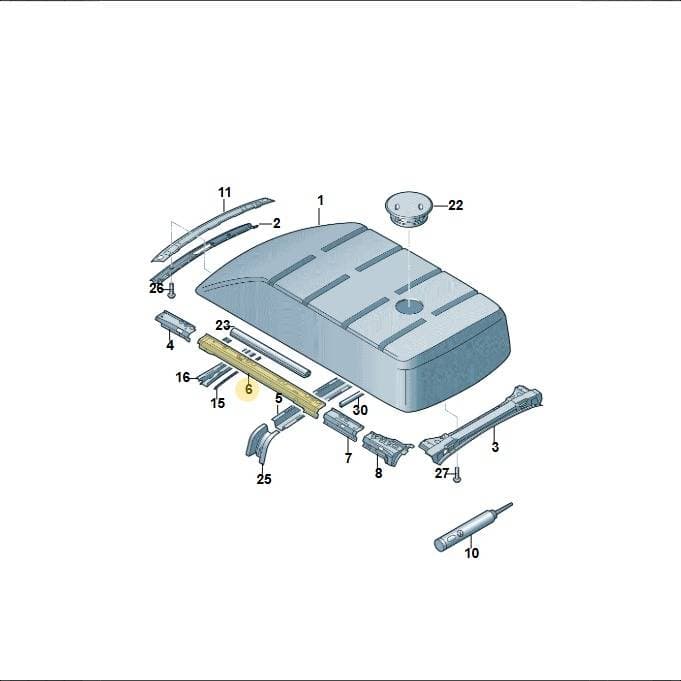

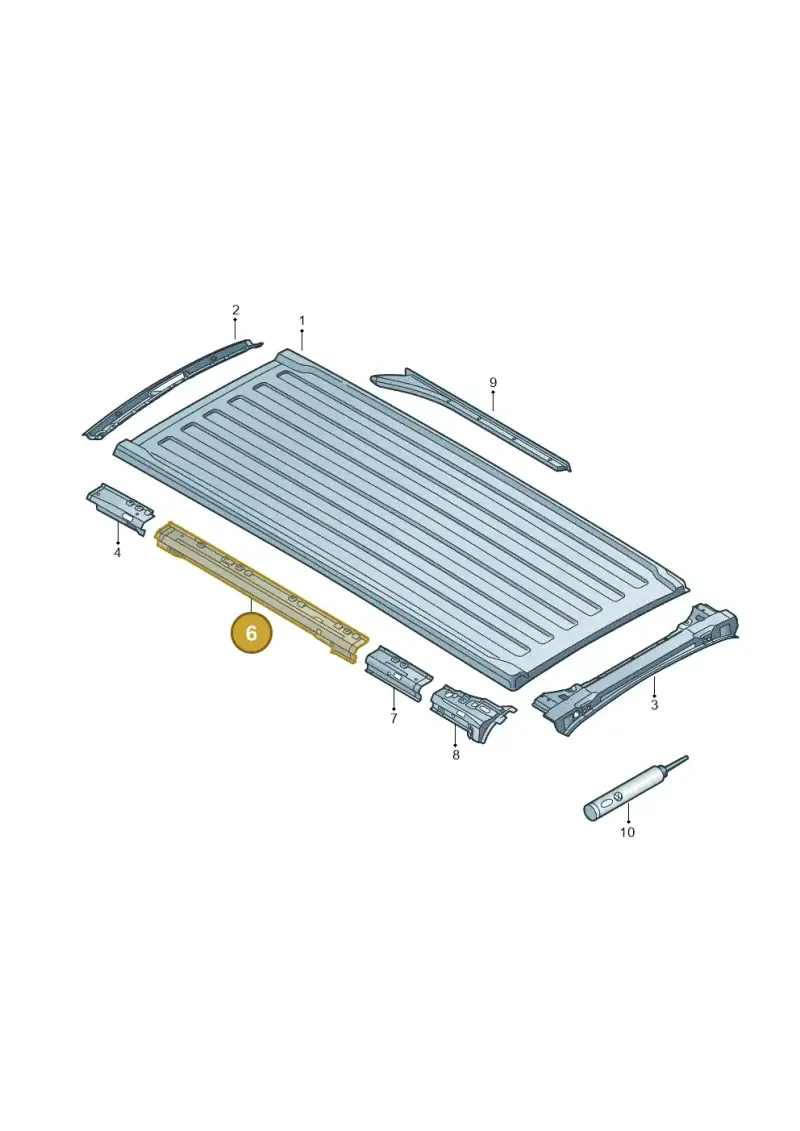

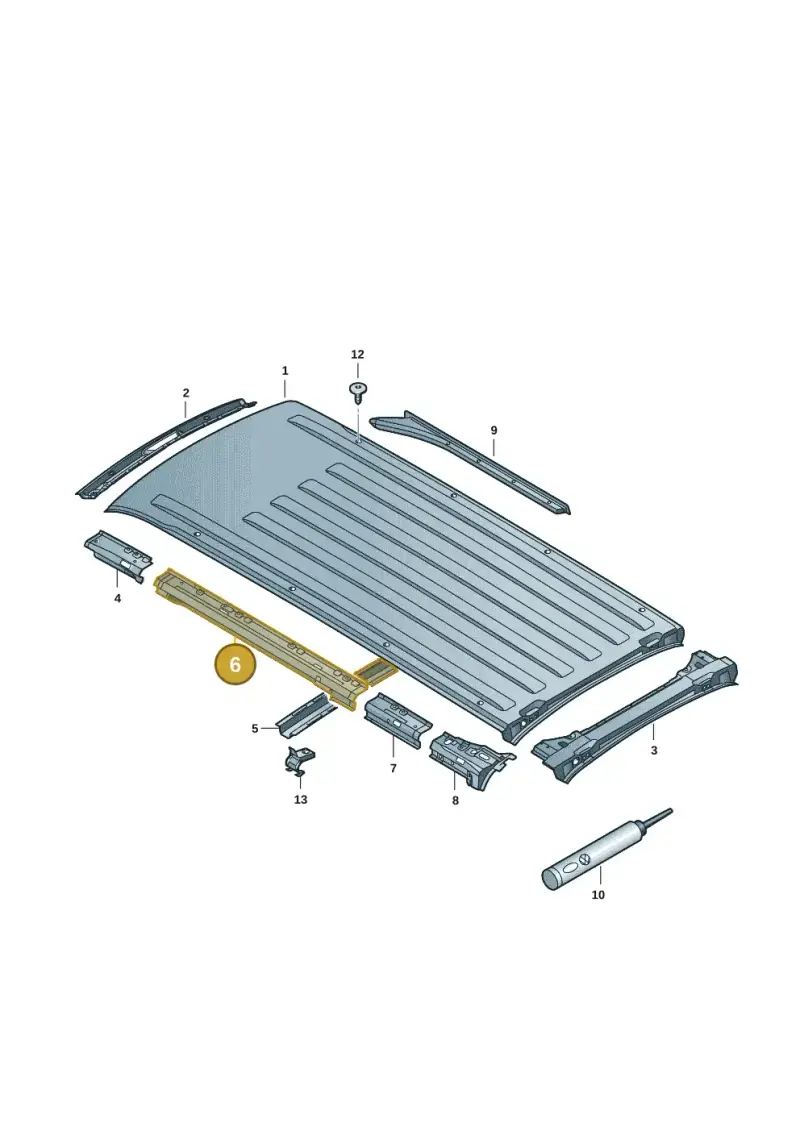

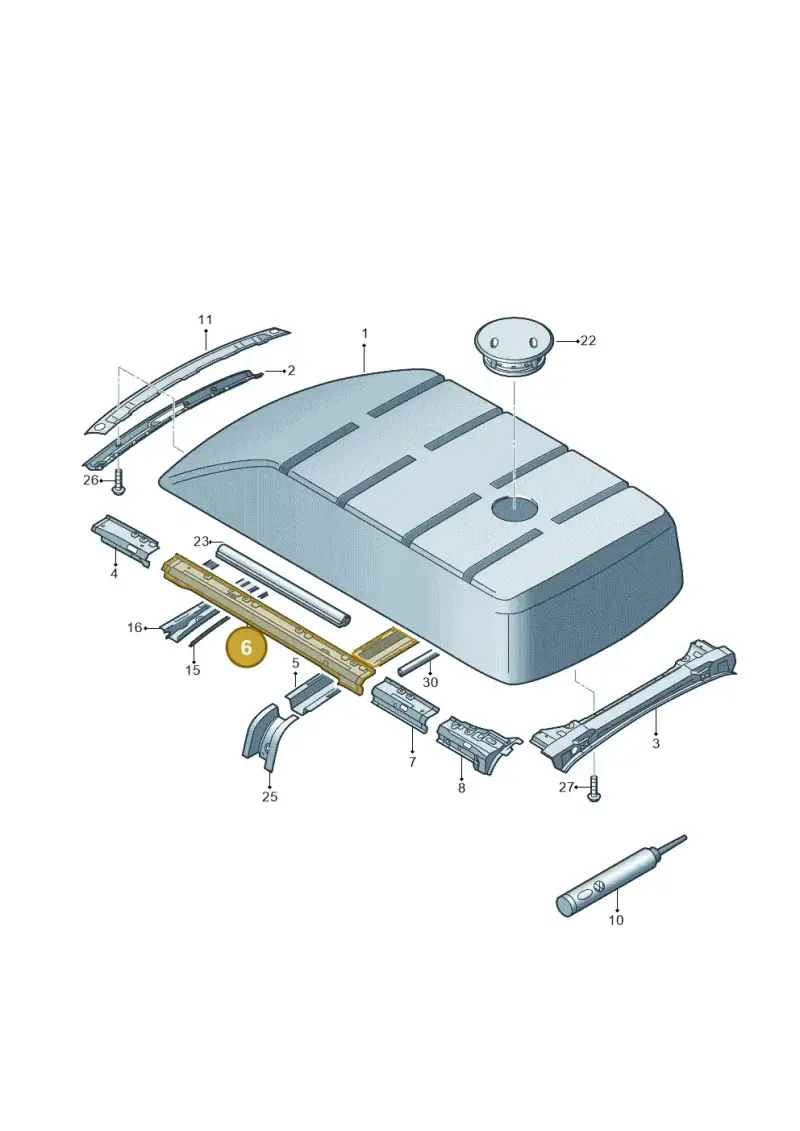

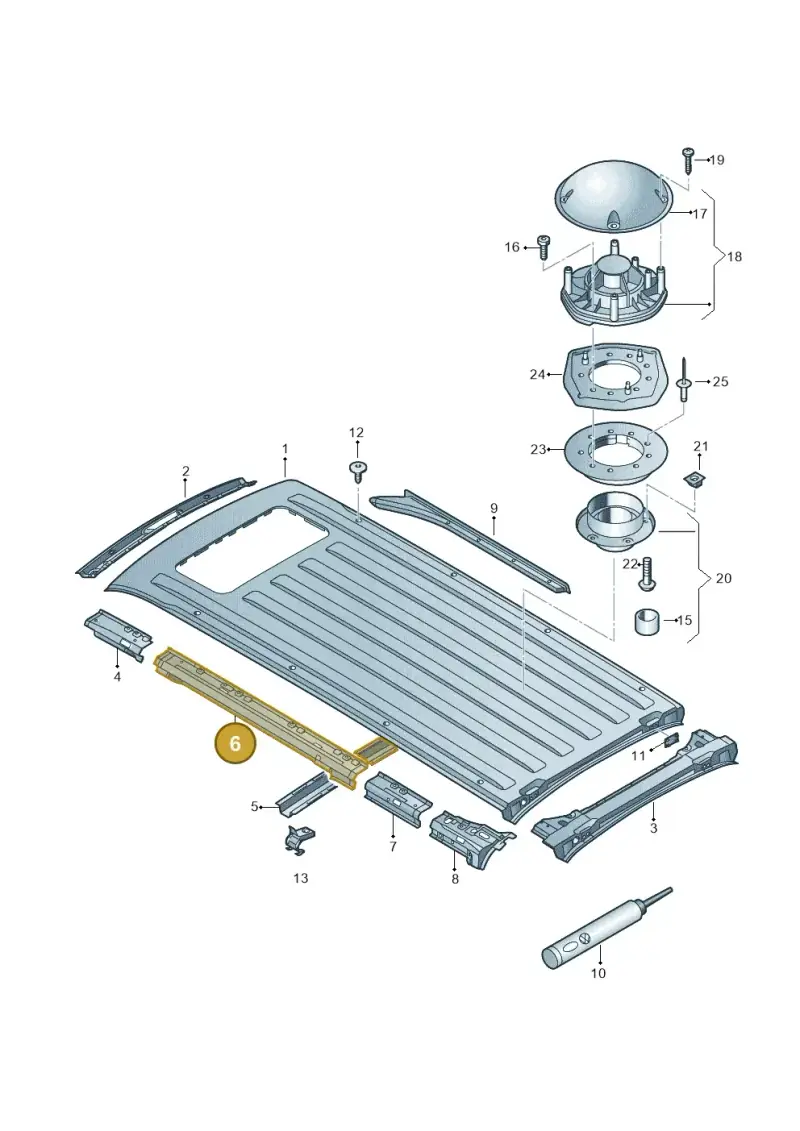

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Roof Frame, part number 7E1817343B. This component provides the structural support for the vehicle's roof. It is located at position 6 on the diagram. Genuine OEM roof frames are manufactured with precise dimensions and material strength for structural integrity.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 149.5 × 16.5 × 15 cm
- Shipping weight
- 3.66 kg
Parts diagram & fitment
8 vehiclesRoof Frame — locate 7E1817343B Volkswagen Roof Frame | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(33)
- 1Roof 7E1817101
- 2Part 7E3817167
- 2Roof Frame 7E0817123B
- 3End Plate 7E7817203
- 4Roof FrameRight7H0817316B
- 4Roof FrameLeft7H0817315B
- 5Roof Bow 7E0817325B
- 6PartLeft7E1817343C
- 6PartRight7E1817344B
- 6PartRight7E1817344C
- 7Roof FrameRight7H1817586D
- 7Roof FrameLeft7H1817585D
- 8PlateRight7H0817624
- 8PlateLeft7H0817623
- 9RailLeft7E0843693
- 9RailRight7E0843694
- 102-pack Adh D180003M2
- 10Adhesive D190MKDA3
- 11Bungs 7H0817066
- 11Bungs 7H0817064A
- 12Part WHT006148
- 13Part 7H0817940A
- 16Bolt N10347403
- 17Cover 7H0817425B
- 18Part 7H0963575M
- 18Ventilador 7H0963575K
- 19Screw N0139649
- 20Vent 7H0817547C
- 21Part N91038401
- 23Frame 7H0817651E
- 23Frame 7H0817651D
- 24Seal 7H0817687B
- 25Pop Rivet N90576301
Diagrams & fitment data powered by oemdiagrams.com
7E1817343B Volkswagen Roof Frame | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; TRANSPORTER GESCHL. 08 2007-; transp. caravelle 2009-2011; transp. caravelle 2011-2015; California Camper 2011-2015; caravelle 2015-2019; California Camper 2015-2019.
