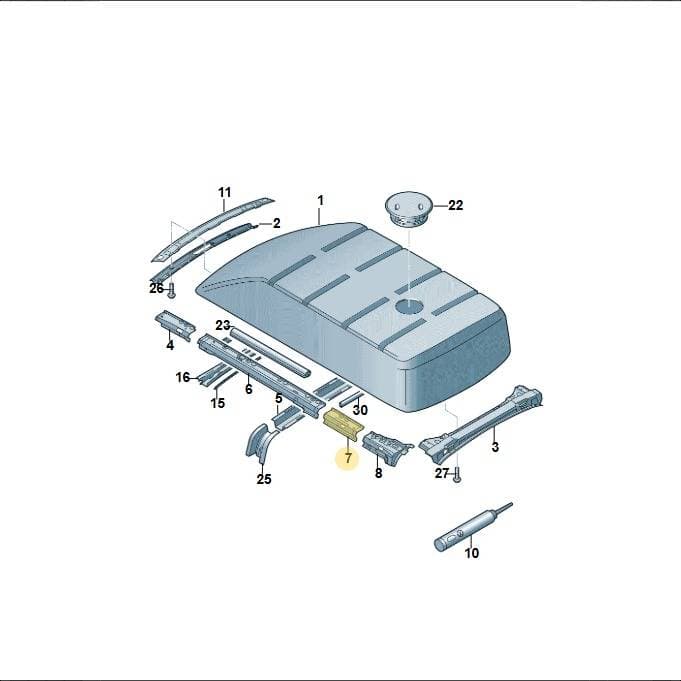

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Roof Frame Reinforcement, part number 7H1817585D. This reinforcement adds structural integrity to the roof frame, enhancing rigidity and crash safety. It is located in the roof frame. Genuine OEM parts ensure exact fit and factory quality.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 39 × 11.4 × 10.2 cm
- Shipping weight
- 0.87 kg
Parts diagram & fitment
17 vehiclesRoof Frame Reinforcement — locate 7H1817585D Volkswagen Roof Frame Reinforcement | Body Exterior in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(33)
- 1Roof 7E1817101
- 2Part 7E3817167
- 2Roof Frame 7E0817123B
- 3End Plate 7E7817203
- 4Roof FrameRight7H0817316B
- 4Roof FrameLeft7H0817315B
- 5Roof Bow 7E0817325B
- 6PartLeft7E1817343C
- 6PartRight7E1817344B
- 6PartRight7E1817344C
- 6PartLeft7E1817343B
- 7Roof FrameRight7H1817586D
- 8PlateRight7H0817624
- 8PlateLeft7H0817623
- 9RailLeft7E0843693
- 9RailRight7E0843694
- 102-pack Adh D180003M2
- 10Adhesive D190MKDA3
- 11Bungs 7H0817066
- 11Bungs 7H0817064A
- 12Part WHT006148
- 13Part 7H0817940A
- 16Bolt N10347403
- 17Cover 7H0817425B
- 18Part 7H0963575M
- 18Ventilador 7H0963575K
- 19Screw N0139649
- 20Vent 7H0817547C
- 21Part N91038401
- 23Frame 7H0817651E
- 23Frame 7H0817651D
- 24Seal 7H0817687B
- 25Pop Rivet N90576301
Compatible / alternative parts(3)
Diagrams & fitment data powered by oemdiagrams.com
7H1817585D Volkswagen Roof Frame Reinforcement | Body Exterior is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; California Camper 2011-2015; caravelle 2015-2019; California Camper 2015-2019.
