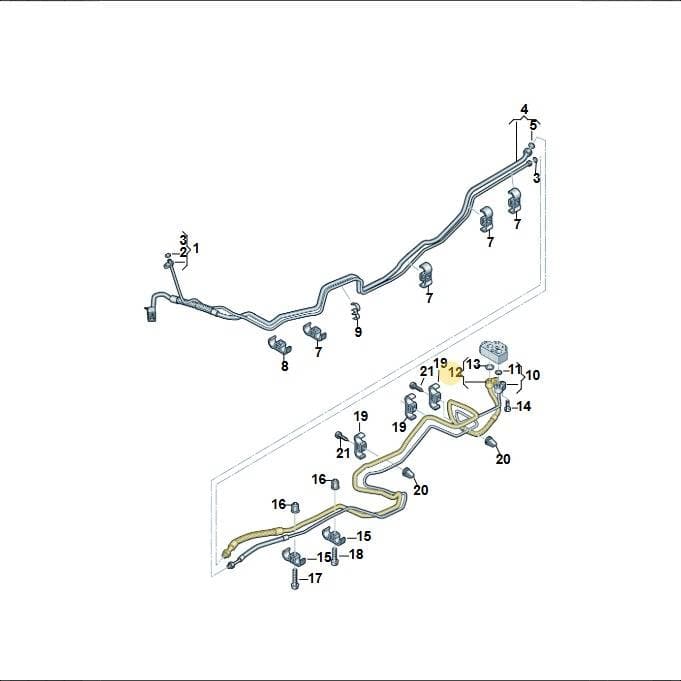

Number 12 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 7E3820888E. This line transports refrigerant within the vehicle's air conditioning system. It is located at position 12 on the diagram. The line has a length of 2.25 meters. Genuine OEM refrigerant lines are manufactured with specific materials and tolerances to withstand the high pressures and temperatures within an AC system, ensuring reliable operation.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 225 × 27 × 25 cm
- Shipping weight
- 0.64 kg
Parts diagram & fitment
3 vehiclesRefrigerant Line — locate 7E3820888E Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(32)
- 1LineRight7L2816885
- 1LineRight7L2816885B
- 1LineRight7L2820885
- 1LineLeft7E1816885
- 1LineLeft7E1820885B
- 2Seal Ring 3D0260749C
- 2Seal Ring 4D0260749B
- 3Seal Ring 7H0820896
- 4LineRight7L2816886
- 4LineRight7L2816886A
- 4LineRight7L2820886
- 4LineLeft7E1816886
- 4LineLeft7E1820886C
- 5Seal Ring 8E0260749D
- 7Clip 7E0820775
- 8Clip 7E0820774A
- 9Dbl Clip N10262701
- 10Line 7E3816732
- 10Line 7E3820887E
- 10Line 7E1816732
- 10Line 7E1820887E
- 12Line 7E3816733
- 12Line 7E1816733
- 12Line 7E1820888E
- 13Seal Ring 4E0260749B
- 14Screw N10414402
- 16Part N90252104
- 17Screw N10247504
- 18Screw N10300804
- 19Clip 7E0820255
- 20Part WHT004694
- 21Screw N10657001
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
7E3820888E Volkswagen Refrigerant Line | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; caravelle 2015-2019.
