Target · Diagram

Find this reference above

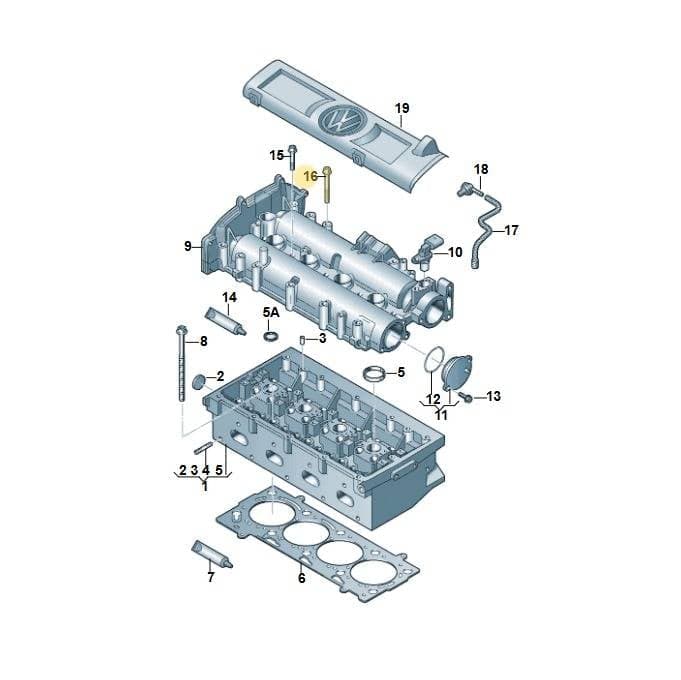

Number 16 marks the part’s position in the exploded view.

Product overview

Genuine OEM Volkswagen Socket Head Bolt, part number N10247504. This is a bolt with a cylindrical head and an internal hexagonal drive, used for secure fastening in various automotive applications. It is located at position 16 in the engine assembly diagram. The bolt has dimensions of 0.07m length, 0.013m width, and 0.013m height. Genuine OEM bolts are manufactured to precise tolerances for secure and reliable fastening.

Technical details

Category
Engine
Country of origin
Italy
Customs (HS) code
73181595
Manufacturer
Volkswagen
Product Type
Genuine new auto parts
Shipping size (L × W × H)
7 × 1.3 × 1.3 cm
Shipping weight
0.01 kg

Parts diagram & fitment

165 vehicles

Screw — locate N10247504 Volkswagen Socket Head Bolt | Engine in the official exploded view and explore the surrounding assembly.

Parts in this assembly(17)

Diagrams & fitment data powered by oemdiagrams.com

N10247504 Volkswagen Socket Head Bolt | Engine is fitted on: Jetta 88 1987-1988; transport. multivan 2019-2024; caravelle 2019-2024; Passat 1991-1993; Golf/Jetta "USA","MEX"93>96 1992-1996; Golf/Var. syncro 1993-1997; Golf Cabrio 1994-1996; Passat 1994-1997; CADDY-KOMBI/KASTEN 1995-2003; Golf/Jetta "USA","Mex"97>99 1996-1998; New Beetle 1998-2001; POLO CLASSIC/VARIANT 1999-2001; POLO 2001-2005; New Beetle 2001-2005; New Beetle Cabrio. 2003-2005; Golf Brasil "BR."08> 2007-; Jetta/Wagon 2002-2006; Golf 'R32' n. "USA" 2004-2004; TOURAN 2003-2005; TRANSPORTER 2003-2005; GOLF 2003-2005; DIES.-IND.-MOT.1,9>2,0 08> 2007-; LUPO/3L TDI 2003-2005; CADDY 2004-; POLO CLASSIC "ZA"03>05 2003-2005; TOURAN (SVW) "CN"04> 2004-; CAMPMOBILE(T5) 2004-2006; GOLF PLUS 05> 2005-; Passat/4Motion 2005-2007; POLO 2005-; JETTA 06> 2005-; Jetta City "MEX"05>07 2006-2007; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; Golf/Rabbit 2005-2007; TOURAN 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; EOS-Cabriolet-Coupe 2006-; BORA-FAW "CN" 06> 2005-; Polo Vivo 2017-; POLO CLASSIC "ZA"05> 2005-; JETTA 06> 2006-; POLO JIN QIN "CN"06> 2006-; POLO JIN QV "CN"06> 2006-; TRANSPORTER/4MOTION 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; GOLF VARIANT 07> 2007-; TOURAN 2006-; MAGOTAN (PASSAT) 07> 2007-; Jetta City "Mex"08> 2007-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; TRANSPORTER GESCHL. 08 2007-; CAMPMOBIL-T5 08 2007-; TIGUAN 08> 2007-; Lavida 2008-2013; bora 2008-2016; Passat CC 2008-2012; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; caddy panel van 2008-2010; EOS 2.0 2008-2010; passat estate 2008-2011; Polo 2008-2009; Touran 1.9 2008-2010; transp. caravelle 2008-2009; California Camper 2008-2009; jetta 2008-2011; Polo 2009-2012; Polo 2009-2014; Polo 2010-2015; transp. caravelle 2009-2011; California Camper 2009-2011; golf estate 2009-2013; Golf 2009-2014; Tiguan 2009-2019; Sharan Blue Motion 2010-2015; jetta 2010-2014; Touran 2.0 2010-2015; Polo Vivo 2010-2014; Passat saloon 2010-2015; Eos BlueMotion 2010-2015; New Polo (SVW) 2010-2019; New Passat 2011-2019; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Tiguan 4Motion 2011-2018; Magotan 1.4 2011-2012; Golf 2011-2013; Golf Plus 2011-2014; transp. caravelle 2011-2015; California Camper 2011-2015; Passat CC 2011-2016; Sagitar 2011-; Lavida 2012-2021; Polo 2012-2014; Polo 1.6 2013-2022; jetta 2013-2014; Jetta 1.4 2013-2015; Polo Vivo 2014-2017; Scirocco 2.0 2014-2017; jetta 2014-2017; Polo 2014-2022; Beetle 2016-2019; new beetle cabriolet 2016-2019; Jetta 1.6 2014-2018; caravelle 2015-2019; California Camper 2015-2019; Polo 1.6 2015-2020; Ameo 1,0 2016-2020; OCTAVIA/COMBI/4X4 1996-2000; FABIA/COMBI 1999-2004; OCTAVIA/COMBI/4X4 01> 2000-; SUPERB 02> 2001-; OCTAVIA/COMBI/4X4 04> 2004-; FABIA/COMBI 05> 2004-; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; OCTAVIA "CN."07> 2007-; superb comfort 2008-2013; Fabia Jingrui 2008-2014; octavia ambiente 2008-2013; Yeti 2009-2013; Superb Ambition 2009-2015; Fabia Scout 2010-2014; Roomster 2010-2015; Fabia Ambiente 2009-2013; Rapid Ambition 2011-2021; Rapid 2012-2022; superb 2013-2015; Yeti 2013-2017; INCA (SEAT-VAN) 1995-2003; TOLEDO/LEON/LEON-4 1998-2001; AROSA 1997-2003; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; IBIZA 2001-2005; TOLEDO/LEON/LEON-4 2001-2006; CORDOBA/SE241 2002-2005; AROSA 2003-2004; TOLEDO 05> 2004-; LEON 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; ALTEA 07> 2006-; Ibiza Reference 2008-2011; Exeo ST Reference 2008-2011; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Alhambra Stylance 2010-2013; Ibiza Reference 2011-2012; Toledo Reference 2012-2015; Ibiza Reference 2012-2012; Altea XL Reference 2013-2013; AUDI A2 2000-2005; Audi A3/S3/quattro 2005-2007; Audi A4/S4/Av./qu. 05> 2005-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013; Audi A1 Sportback 2010-2015.
