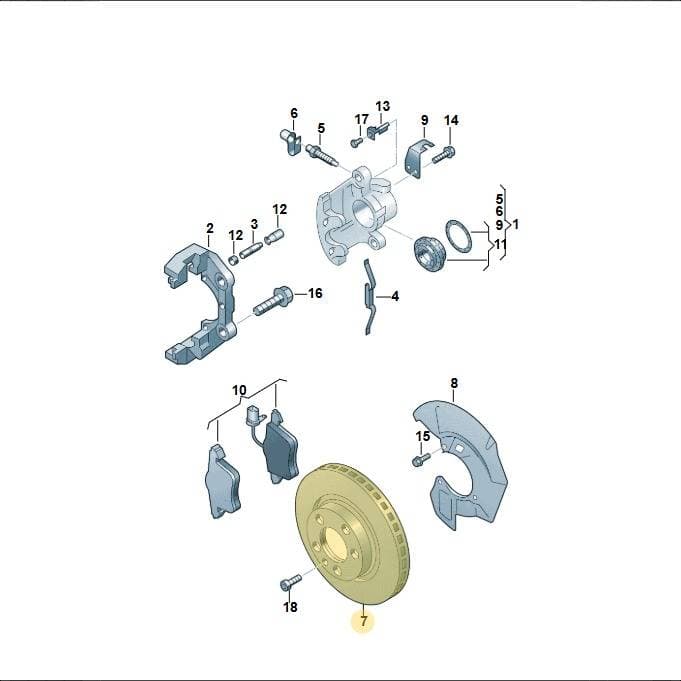

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen brake disc, part number 7H0615301D. This brake disc is a critical component of the vehicle's braking system. It is the surface onto which the brake pads apply pressure to generate friction, thereby slowing or stopping the vehicle. This part is located at position 7 in the brake system diagram. Genuine OEM brake discs are manufactured with precise metallurgy and balancing for optimal heat dissipation and consistent stopping power, ensuring driver safety.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 7 × 37 × 34 cm
- Shipping weight
- 10.68 kg
Parts diagram & fitment
23 vehiclesBrake Disc — locate 7H0615301D Volkswagen Brake Disc | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 7H0615301F — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(21)
- 1HousingRight7L6615124F
- 1HousingLeft7L6615123F
- 2Plate Brak 7L6615125A
- 3Part 7D0615143
- 4Spring 7D0615295A
- 5Valve 1K0615273A
- 6Part 7D0611483
- 7Brake Disc JZW615301E
- 7Part JZW698302AC
- 8Brk Lining 7L6698151B
- 9Gask Set 7H0698471
- 10Bushes 7M3698647A
- 11Screw N91017302
- 12Bolt N90685403
- 13Bracket 7M3615133
- 14Bolt N0102085
- 15Cov Plate 7L6615311
- 16Bolt N01023714
- 17BracketRight7L6614514B
- 17BracketLeft7L6614513A
- 18Screw N90308605
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
7H0615301D Volkswagen Brake Disc | Genuine OEM is fitted on: Touareg 2003-2005; TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; Touareg 08> 2007-; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015.
