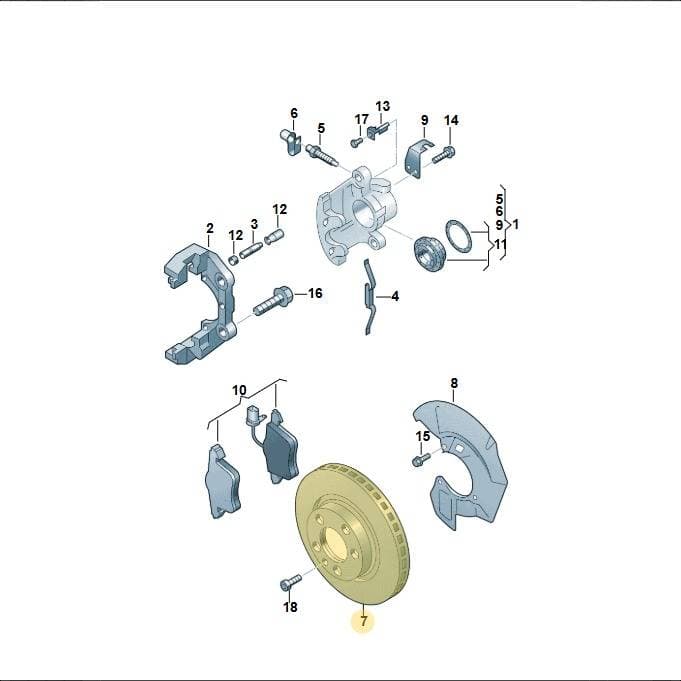

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Ventilated Brake Disc, part number JZW615301E. This component provides a surface for brake pads to grip, dissipating heat generated during braking. It is part of the braking system. Genuine OEM ventilated brake discs are engineered for superior heat dissipation and consistent braking performance, ensuring safety and longevity.
Catalogue entry: BRAKE DISC 308X29,5 ×2; Economy.
Fitted with: 7E0615301D BRAKEDISC, N90685403 BOLT, N91017302 SCREW.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 30 × 30 × 5.5 cm
- Shipping weight
- 10.35 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 308x29.5
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
25 vehiclesBrake Disk (vented) 'eco' — locate JZW615301E Volkswagen Ventilated Brake Disc | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1HousingRight7L6615124F
- 1HousingLeft7L6615123F
- 2Plate Brak 7L6615125A
- 3Part 7D0615143
- 4Spring 7D0615295A
- 5Valve 4F0615273
- 6Part 7D0611483
- 7Brakedisc 7H0615301D
- 8Cov PlateRight7E0615312
- 8Cov PlateLeft7E0615311
- 10Brk Lining 7H0698151
- 10Part JZW698151Q
- 11Gask Set 7H0698471
- 12Bushes 7M3698647A
- 13Bracket 7M3615133
- 15Bolt N90305302
- 16Bolt N90685403
- 17Bolt N0102085
- 18Screw N91017302
Vehicle fitment table25
Europe (25)
| Vehicle | Years | Pos. |
|---|---|---|
| caravelle | 2015-2019 | 7 |
| Single-cab transp. | 2015-2019 | 7 |
| California Camper | 2015-2019 | 7 |
| transp. caravelle | 2011-2015 | 7 |
| transp. dropside | 2011-2015 | 7 |
| California Camper | 2011-2015 | 7 |
| transp. caravelle | 2009-2011 | 7 |
| transp. dropside | 2009-2011 | 79 |
| California Camper | 2009-2011 | 7 |
| transp. caravelle | 2008-2009 | 7 |
| transp. dropside | 2008-2009 | 7 |
| California Camper | 2008-2009 | 7 |
| Touareg 08> | 2007- | 7 |
| TRANSPORTER GESCHL. 08 | 2007- | 7 |
| TRANSPORTER OFFEN 08 | 2007- | 7 |
| CAMPMOBIL-T5 08 | 2007- | 7 |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 7 |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 7 |
| CAMPMOBIL (T5) 07 | 2006-2007 | 7 |
| Touareg | 2005-2006 | 7 |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 7 |
| TRANSPORTER 06 | 2005-2006 | 7 |
| CAMPMOBILE(T5) | 2004-2006 | 7 |
| Touareg | 2003-2005 | 7 |
| TRANSPORTER | 2003-2005 | 7 |
The manufacturer’s catalogue lists this part number as fitted until 30 April 2019; later builds may use a superseding number.
