Target · Diagram
Find this reference above

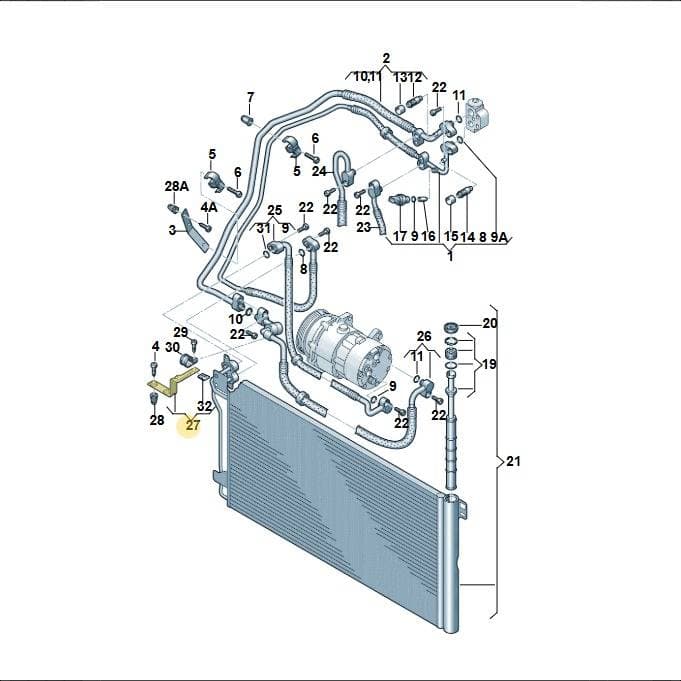

Number 27 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Pipe Bracket, part number 7H0820770C. This bracket secures and supports refrigerant pipes within the vehicle's A/C system. It is located as part number 27 in the diagram. Proper support prevents stress on the refrigerant lines. Genuine OEM brackets are made from durable materials to withstand engine bay conditions.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4.3 × 4 × 3.5 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment
6 vehiclesBracket For Refrigerant Pipe — locate 7H0820770C Volkswagen Refrigerant Pipe Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 1Part 7E1820741B
- 1Pipe 7E1820741C
- 2Part 7H1820743AA
- 2Hose 7H1820743AB
- 2Hose 7H1820743T
- 3Clip 7E0820775
- 4APop Rivet N90437401
- 5Clip 7H0820775A
- 6Bolt N10704501
- 7Part N90252104
- 8Seal Ring 3D0260749C
- 9Seal Ring 8E0260749
- 10Seal Ring 4E0260749B
- 11Seal Ring 7H0820898
- 12Valve 8E0820855
- 13Part 3C0820231
- 15Part 3C0820581
- 16Part 7D0820855
- 17Sensor 1K0959126D
- 19Insert 4H0298403
- 21Condenser 7E0820411B
- 22Screw N10414402
- 25Hose 7H0820721AD
- 26Pipe 7H0820744Q
- 27Bracket 7H0820769D
- 28Part 811807577C
- 29Screw N10657201
- 30Clamp N0206474
- 31Seal Ring 4E0260749A
- 32Part N90755702
Compatible / alternative parts(4)
Diagrams & fitment data powered by oemdiagrams.com
7H0820770C Volkswagen Refrigerant Pipe Bracket | Genuine OEM is fitted on: transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015.
