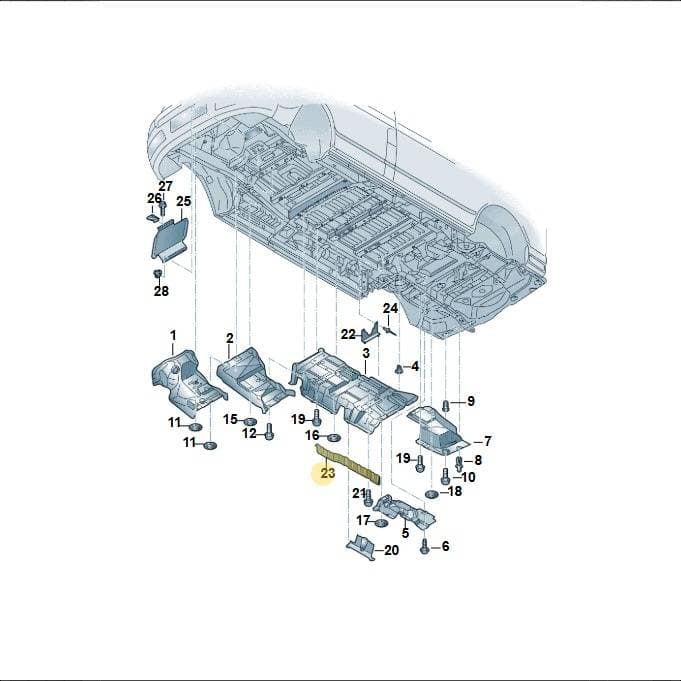

Number 23 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Tunnel Heat Shield, part number 7H0825675. This shield protects the underside tunnel area from excessive heat generated by the drivetrain. It is located at position 23 on the diagram. The part weighs 0.286 kg.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 92 × 12 × 9 cm
- Shipping weight
- 0.29 kg
Parts diagram & fitment
11 vehiclesHeat Shield For Tunnel — locate 7H0825675 Volkswagen Tunnel Heat Shield | Exhaust in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(19)
- 1Heat Sh 7H0825651H
- 1Heat Sh 7H0825651G
- 2Heat Sh 7H0825661C
- 2Heat Sh 7H0825661A
- 3Heat ShRight7H0825676A
- 3Heat Sh 7H1825671
- 3Heat Sh 7H1825671A
- 3Heat Sh 7H3825671A
- 3Heat Sh 7H3825671B
- 3Heat Sh 7H3825681B
- 4Part 7H0825555A
- 5Heat Sh 7H0825691C
- 6Screw N91067001
- 7Heat Sh 7H0825701C
- 8Spring Rivet N90558401
- 9Part N90927801
- 10Bolt N0901484
- 11Washer N90796502
- 12Bolt N10063205
Diagrams & fitment data powered by oemdiagrams.com
7H0825675 Volkswagen Tunnel Heat Shield | Exhaust is fitted on: TRANSPORTER 2003-2005; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; transp. caravelle 2008-2009; transp. caravelle 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; California Camper 2011-2015; caravelle 2015-2019; California Camper 2015-2019.
