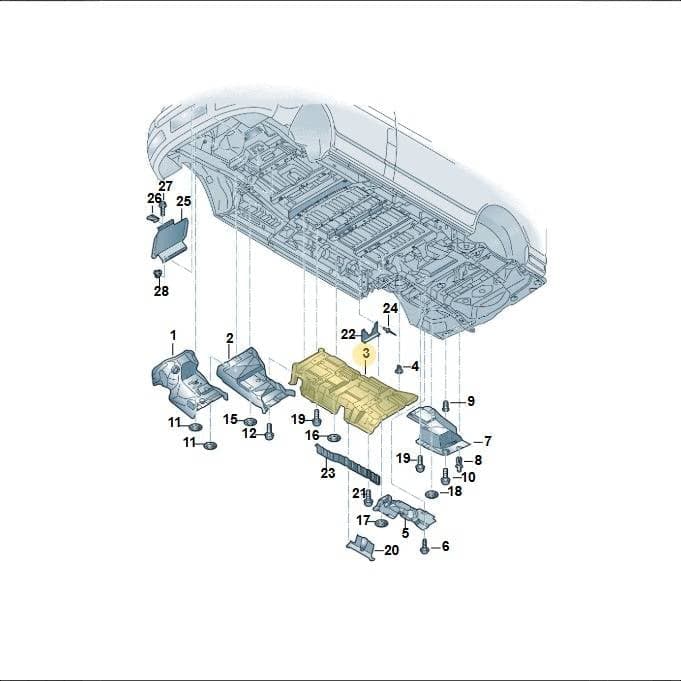

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Shield, part number 7H3825681B. This underbody component is designed to protect vital parts from the heat generated by the exhaust system or drivetrain. It is positioned as part 3 in the diagram. Genuine OEM parts are manufactured to precise specifications, ensuring correct fit and optimal performance in protecting underbody components.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 69 × 43.5 × 17 cm
- Shipping weight
- 0.56 kg
Parts diagram & fitment
11 vehiclesHeat Shield For Tunnel — locate 7H3825681B Volkswagen Heat Shield | Underbody in the official exploded view and explore the surrounding assembly.
Parts in this assembly(19)
- 1Heat Sh 7H0825651H
- 1Heat Sh 7H0825651G
- 2Heat Sh 7H0825661C
- 2Heat Sh 7H0825661A
- 3Heat ShLeft7H0825675
- 3Heat ShRight7H0825676A
- 3Heat Sh 7H1825671
- 3Heat Sh 7H1825671A
- 3Heat Sh 7H3825671A
- 3Heat Sh 7H3825671B
- 4Part 7H0825555A
- 5Heat Sh 7H0825691C
- 6Screw N91067001
- 7Heat Sh 7H0825701C
- 8Spring Rivet N90558401
- 9Part N90927801
- 10Bolt N0901484
- 11Washer N90796502
- 12Bolt N10063205
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
7H3825681B Volkswagen Heat Shield | Underbody is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; TRANSPORTER 2003-2005; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; transp. caravelle 2008-2009; transp. caravelle 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; California Camper 2011-2015; caravelle 2015-2019.
