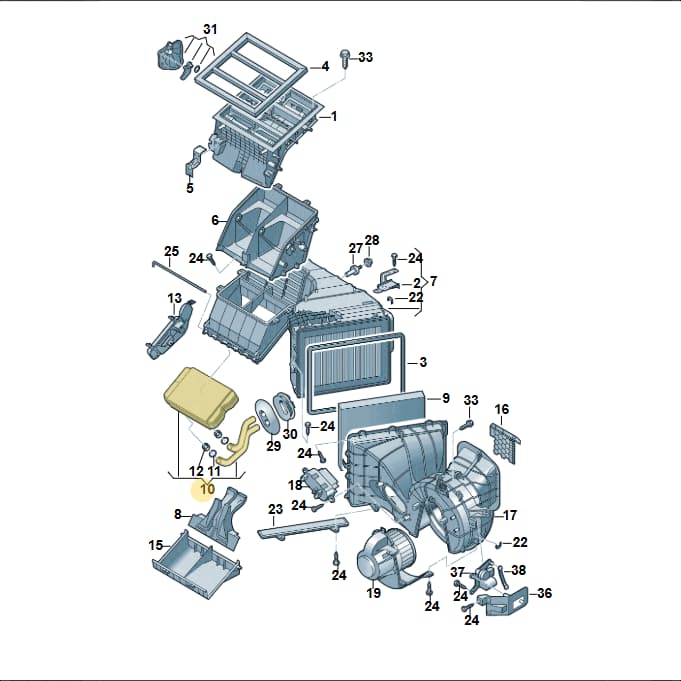

Number 10 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Exchanger, part number 7H1819031. This component is responsible for transferring heat between fluids within the vehicle's climate control system, enabling effective heating or cooling of the cabin air. It is located within the main HVAC assembly. Weighing 1.288 kg, it measures 0.38 m in length, 0.293 m in width, and 0.14 m in height. Choosing a genuine OEM heat exchanger ensures factory-specified heat transfer efficiency and durability, preventing leaks and maintaining optimal climate control performance.
Catalogue entry: HEAT EXCH lhd.
Technical details
- Category
- Heating & A/C
- Country of origin
- Germany
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 38 × 29.3 × 14 cm
- Shipping weight
- 1.29 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- L0L
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
22 vehiclesHeat Exchanger — locate 7H1819031 Volkswagen Heat Exchanger | HVAC System in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly41
- 1Housing 7H1819351C
- 2BracketRight7H2819147
- 2BracketLeft7H1819147A
- 3Sealg Cord 7H0819211
- 4Seal 7H0819064B
- 5BracketRight7H2819259
- 5BracketLeft7H1819259
- 6Part 7H1819352
- 7HousingRight7H2819087B
- 7HousingLeft7H1819087B
- 8Air Guide 7H0898409
- 9Part JZW819653E
- 9Od Filter 7E0819631
- 9Filter 7H0819631
- 9Dust Filt 7H0819631A
- 10Heat ExchRight7H2819031
- 11Seal Ring N90973201
- 12Clamp Spring 7H0819139
- 13CoverRight7H2815159
- 13CoverLeft7H1815159
- 15Cover 7H1819422A
- 16GrilleRight7H2819407
- 16GrilleLeft7H1819407
- 17HousingRight7H2815153A
- 17HousingLeft7H1815153A
- 18Resistance 7E0959263
- 19BlowerRight7E2819021A
- 19BlowerLeft7E1819021A
- 22Clip 7H0819059
- 23Cover 7H1819913
- 24Screw N10424102
- 25Part 7H0819731
- 27Rubber Bush 7L0819133
- 28Part N10340004
- 29Clip 7H0819058A
- 30Seal 7H0819037A
- 31Washer 7H0898937
- 33Bolt N90999502
- 36Plate 7H1819939A
- 37Motor 7H1907511B
- 38Coupl Rod 7H1819313
Vehicle fitment table22
Europe (22)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| caravelle | 2015-2019 | 10 | 1 | L0L |
| Single-cab transp. | 2015-2019 | 10 | 1 | L0L |
| transp. caravelle | 2011-2015 | 10, 18 | 1 | |
| transp. dropside | 2011-2015 | 10 | 1 | |
| California Camper | 2011-2015 | 10 | 1 | |
| transp. caravelle | 2009-2011 | 10, 18 | 1 | |
| transp. dropside | 2009-2011 | 10, 18 | 1 | |
| California Camper | 2009-2011 | 10, 18 | 1 | |
| transp. caravelle | 2008-2009 | 10, 18 | 1 | |
| transp. dropside | 2008-2009 | 10, 18 | 1 | |
| California Camper | 2008-2009 | 10, 18 | 1 | |
| TRANSPORTER GESCHL. 08 | 2007- | 10, 18 | 1 | |
| TRANSPORTER OFFEN 08 | 2007- | 10, 18 | 1 | |
| CAMPMOBIL-T5 08 | 2007- | 10, 18 | 1 | |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 10, 18 | 1 | |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 10, 18 | 1 | |
| CAMPMOBIL (T5) 07 | 2006-2007 | 10, 18 | 1 | |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 10, 18 | 1 | |
| TRANSPORTER 06 | 2005-2006 | 10, 18 | 1 | |
| CAMPMOBILE(T5) | 2004-2006 | 10, 18 | 1 | |
| TRANSPORTER | 2003-2005 | 10, 18 | 1 | |
| TRANSPORTER | 2003-2005 | 18 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
7H1819031 Volkswagen Heat Exchanger | HVAC System is fitted on: caravelle 2015-2019; Single-cab transp. 2015-2019; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CAMPMOBILE(T5) 2004-2006; TRANSPORTER 2003-2005.
