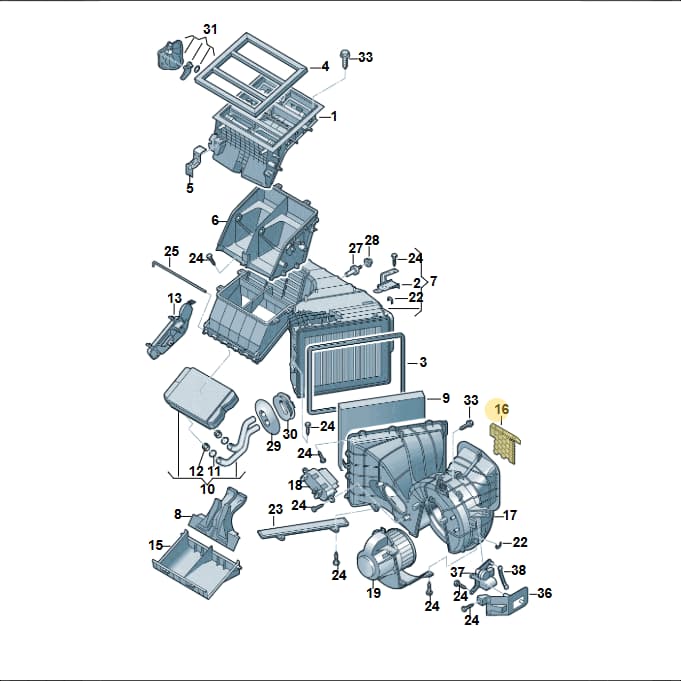

Number 16 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Foliage Grille, part number 7H2819407. This protective grille is positioned within the vehicle's intake area, designed to prevent larger debris, such as leaves and other foliage, from entering and potentially damaging the HVAC system's internal components like the blower motor or evaporator. It is specifically configured for Right-Hand Drive (RHD) vehicles. Weighing 0.034 kg and measuring 0.174m x 0.173m x 0.007m, it ensures a precise fit. Using a genuine OEM grille guarantees the correct dimensions, material, and mesh size for effective debris filtration and long-term protection of the HVAC system.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 17.4 × 17.3 × 0.7 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment
22 vehiclesFoliage Grille — locate 7H2819407 Volkswagen Foliage Grille | RHD Configuration in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(39)
- 1Housing 7H1819351C
- 2BracketRight7H2819147
- 2BracketLeft7H1819147A
- 3Sealg Cord 7H0819211
- 4Seal 7H0819064B
- 5BracketRight7H2819259
- 5BracketLeft7H1819259
- 6Part 7H1819352
- 7HousingRight7H2819087A
- 7HousingLeft7H1819087B
- 8Air Guide 7H0898409
- 9Part JZW819653E
- 9Od Filter 7E0819631
- 9Filter 7H0819631
- 9Dust Filt 7H0819631A
- 10Heat ExchRight7H2819031
- 10Heat ExchLeft7H1819031
- 11Seal Ring N90973201
- 12Clamp Spring 7H0819139
- 13CoverRight7H2815159
- 13CoverLeft7H1815159
- 14Cover 7H0815713
- 15Cover 7H1819422A
- 16GrilleLeft7H1819407
- 17HousingRight7H2815153A
- 17HousingLeft7H1815153A
- 18Resistance 7E0959263
- 19BlowerRight7H2819021B
- 19BlowerLeft7H1819021B
- 22Clip 7H0819059
- 23Cover 7H1819913
- 24Screw N10424101
- 25Part 7H0819731
- 27Rubber Bush 7L0819133
- 28Part N90217303
- 29Clip 7H0819058A
- 30Grommet 6Q0819345A
- 31Washer 7H0898937
- 33Bolt N90999501
Diagrams & fitment data powered by oemdiagrams.com
7H2819407 Volkswagen Foliage Grille | RHD Configuration is fitted on: TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019.
