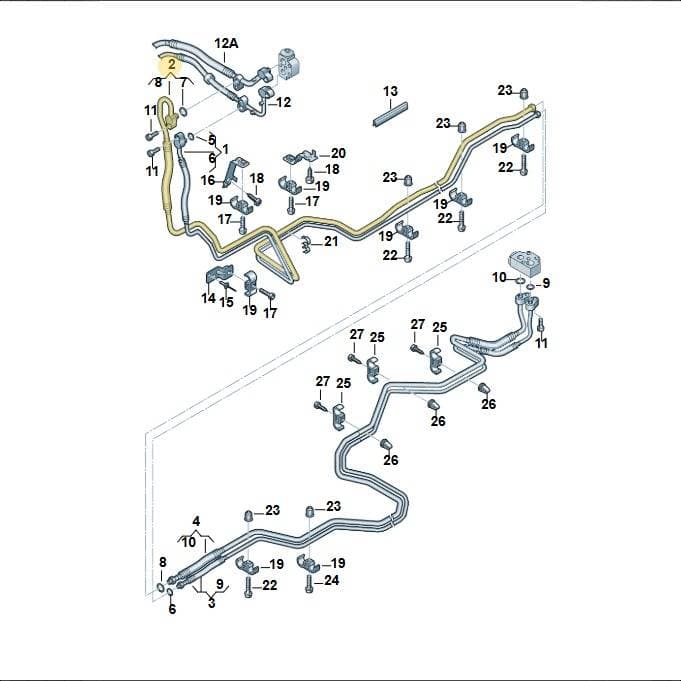

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Pipe, part number 7H2820886F. This pipe carries refrigerant between different components of the air conditioning system. It is located at position 2 in the diagram. The pipe has a length of 2.47 meters and a weight of 0.644 kg. Genuine OEM refrigerant pipes are manufactured to exact specifications for proper flow and pressure resistance, ensuring the longevity of the A/C system.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 247 × 75 × 18.5 cm
- Shipping weight
- 0.64 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesRefrigerant Pipe — locate 7H2820886F Volkswagen Refrigerant Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly30
- 1PipeRight7E2820885
- 1PipeLeft7E1820885
- 2PipeLeft7E1820886
- 2PipeRight7E2820886A
- 2PipeLeft7H1820886G
- 3Pipe 7E3820887A
- 3Pipe 7E1820887A
- 4Pipe 7E1820888
- 4Pipe 7E3820888
- 4Pipe 7E3820888A
- 4Pipe 7E1820888A
- 5Seal Ring 3D0260749C
- 6Seal Ring 7H0820896
- 7Seal Ring 4E0260749B
- 7Seal Ring 4E0260749A
- 8Seal Ring 8E0260749D
- 11Screw N10414402
- 13Beading 701947149A
- 16Bracket 7H2820536
- 17Screw N10432603
- 18Screw N91035002
- 19Clip 7E0820775
- 20Bracket 7H2820761
- 21Dbl Clip N10262701
- 22Screw N10247504
- 23Part N90252104
- 24Screw N10300805
- 25Clip 7E0820255
- 26Part N90833801
- 27Screw N10657001
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| transp. caravelle | 2011-2015 | 2 | 1 | PR:8Z4,8Z5, | |
| California Camper | 2011-2015 | 2 | 1 | PR:9AH+ | 8Z |
| transp. caravelle | 2009-2011 | 2 | 1 | PR:8Z4,8Z5, | |
| California Camper | 2009-2011 | 2 | 1 | PR:9AH+ | 8Z |
Diagrams & fitment data powered by oemdiagrams.com
7H2820886F Volkswagen Refrigerant Pipe | Genuine OEM is fitted on: transp. caravelle 2011-2015; California Camper 2011-2015; transp. caravelle 2009-2011; California Camper 2009-2011.
