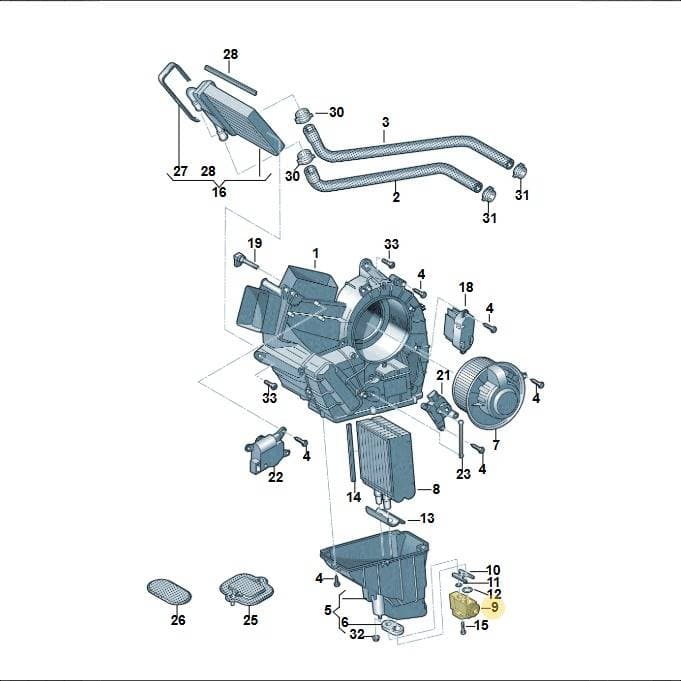

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Expansion Valve, part number 7N0820712A. This expansion valve is designed to precisely control the flow of refrigerant into the evaporator, which is essential for regulating the temperature within the vehicle's cabin. It is located at position 9 in the diagram. The expansion valve weighs 0.207 kg. Genuine OEM expansion valves are manufactured to strict tolerances, ensuring accurate refrigerant metering and consistent cooling performance.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84818079
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8 × 5 × 4.5 cm
- Shipping weight
- 0.21 kg
Parts diagram & fitment
2 vehiclesExpansion Valve — locate 7N0820712A Volkswagen Expansion Valve | Position 9 in the official exploded view and explore the surrounding assembly.
Parts in this assembly(33)
- 1Housing 7N0820049
- 1Housing 7N0820049A
- 2Hose 7N0819809D
- 3Hose 7N0815992A
- 4Screw N10424102
- 5Cover 7H0820024B
- 6Seal 7H0820175
- 7Engine 7E0819021A
- 7Engine 7H0819021A
- 8Evaporator 7E0820105A
- 9Expans Val 7H0820679C
- 9Expans Val 7N0816679
- 10Bracket 7L0820678
- 11Seal Ring 8E0260749A
- 12Seal Ring 8E0260749
- 13Seal 7H0820133
- 14Seal 7H0820130
- 15Screw N10476301
- 16Heat Exch 7H0819032
- 18Regulator 2Q0907521
- 18Regulator 7L0907521B
- 19Temperature Sensor 3D0907543A
- 21Motor 7E0907512
- 22Servomotor 7H0907512E
- 23Coupl Rod 7H0819317
- 25Grommet 7N0820668B
- 26Bungs 7H0819598
- 27Seal 7H0819109
- 28Seal 7H0819065
- 30Clamp N90687001
- 31Clamp N90686902
- 32Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 33Bolt N90684104
Compatible / alternative parts(6)
Diagrams & fitment data powered by oemdiagrams.com
7N0820712A Volkswagen Expansion Valve | Position 9 is fitted on: Sharan BlueMotion 2015-2022; Alhambra Stylance 2015-2022.
