Product overview

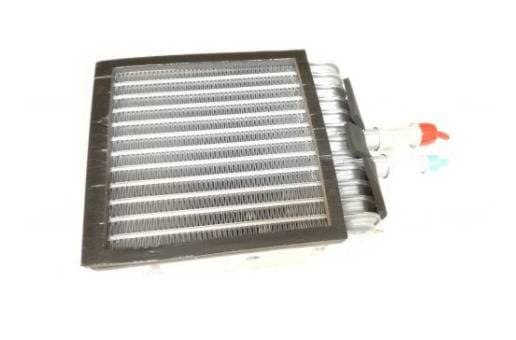

Genuine OEM Volkswagen Air Conditioning Evaporator, part number 7E0820105A. This evaporator is a crucial component of the vehicle's air conditioning system, responsible for absorbing heat from the cabin air and cooling it before it is circulated. It is a finned heat exchanger, weighing approximately 1.4 kg. Choosing a genuine OEM evaporator ensures precise fitment within the HVAC housing, optimal heat exchange efficiency, and resistance to corrosion, maintaining the factory-specified cooling performance and refrigerant flow.
Technical details
- Category
- Heating & A/C
- Country of origin
- Slovakia
- Customs (HS) code
- 84189910
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 41 × 26 × 16 cm
- Shipping weight
- 1.4 kg
Parts diagram & fitment

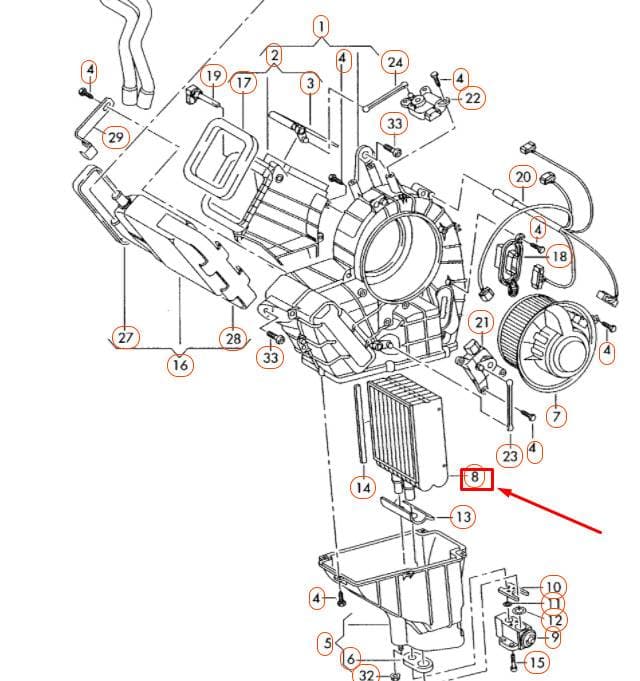

9 vehiclesEvaporator — locate 7E0820105A Volkswagen Air Conditioning Evaporator | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(36)
- 1Housing 7LA816049
- 1Housing 7LA819049A
- 2Int Duct 7H0819709C
- 2Int Duct 7H5820709C
- 3Air Flap 7H0820365A
- 4Screw N10424102
- 5Cover 7E0819024B
- 5Cover 7E0820024
- 6Seal 7H0820175
- 7Blower 7LA819021
- 9Expans Val 7E0816679
- 9Expans Val 7E0820679B
- 10Bracket 7L0820678
- 11Seal Ring 8E0260749
- 12Seal Ring 8E0260749A
- 13Seal 7H0820133
- 14Seal 7H0820130
- 15Screw N10476301
- 16Heat Exch 7H0819032
- 17Seal 7H0820099
- 18Regulator 2Q0907521
- 19Temperature Sensor 4B0820539
- 21Lever 7LA819292
- 21Servomotor 2Q0907511E
- 22Lever 7LA819291
- 23Coupl Rod 7H0819317
- 24Coupl Rod 7H0820341
- 25Hose 7H0819886D
- 26Bungs 7H0819598
- 27Seal 7H0819109
- 28Seal 7H0819065
- 29Bracket 7H0819931
- 30Clamp N91225501
- 31Collar Nut N90455301
- 32Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 33Bolt N91079901
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
7E0820105A Volkswagen Air Conditioning Evaporator | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Sharan Blue Motion 2010-2015; transp. caravelle 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Sharan BlueMotion 2015-2022; California Camper 2015-2019; Alhambra Stylance 2015-2022.
