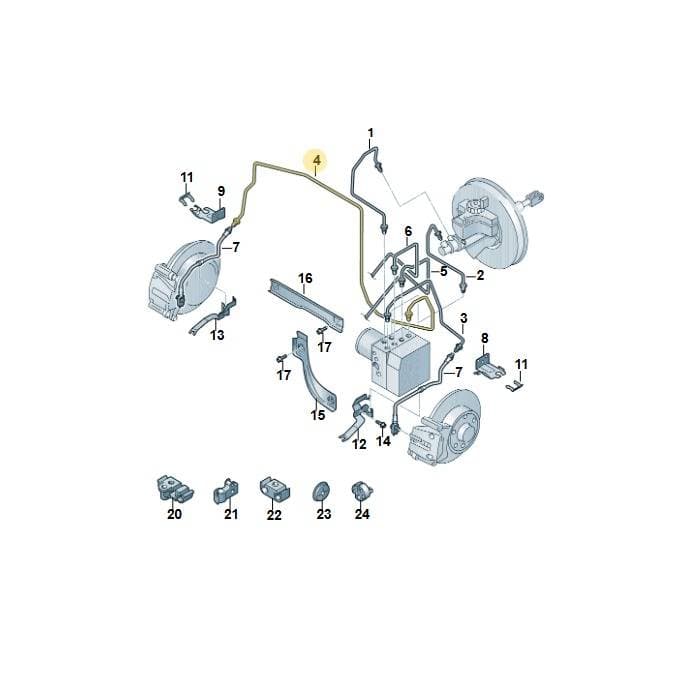

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Brake Pipe, part number 7N1614724. This pipe transmits hydraulic brake fluid pressure from the master cylinder or ABS unit to the brake hoses. It is located at position 4 in the diagram. The brake pipe has a length of 0.95 meters. Genuine OEM ensures the correct material strength and precise bending for safe and effective brake fluid transmission.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 95 × 40 × 16 cm
- Shipping weight
- 0.15 kg
Parts diagram & fitment
2 vehiclesBrake Pipe From Hydraulics To Brake Hose — locate 7N1614724 Volkswagen Brake Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(20)
- 1Brake Pipe 5N1614739B
- 2Brake Pipe 5N1614740B
- 3Brake Pipe 7N0614723
- 5Brake Pipe 7N0614725A
- 6Brake Pipe 7N0614726
- 7Brake Hose 7N0611701
- 8Retainer 5N0611845B
- 9Retainer 5N0611846B
- 11Bracket 191611715
- 12Retainer 5N0611841A
- 13Retainer 5N0611842A
- 14Bolt N90245210
- 15Prot Plate 5N1611732
- 16Cover 5N0611732A
- 17Bolt N91123501
- 20Bracket 3C0611797C
- 21Bracket 5Q0611797C
- 22Clip 8K0611797D
- 23Grommet 1K0611751
- 24Sleeve 1J0611853
Diagrams & fitment data powered by oemdiagrams.com
7N1614724 Volkswagen Brake Pipe | Genuine OEM is fitted on: Sharan Blue Motion 2010-2015; Alhambra Stylance 2010-2013.
