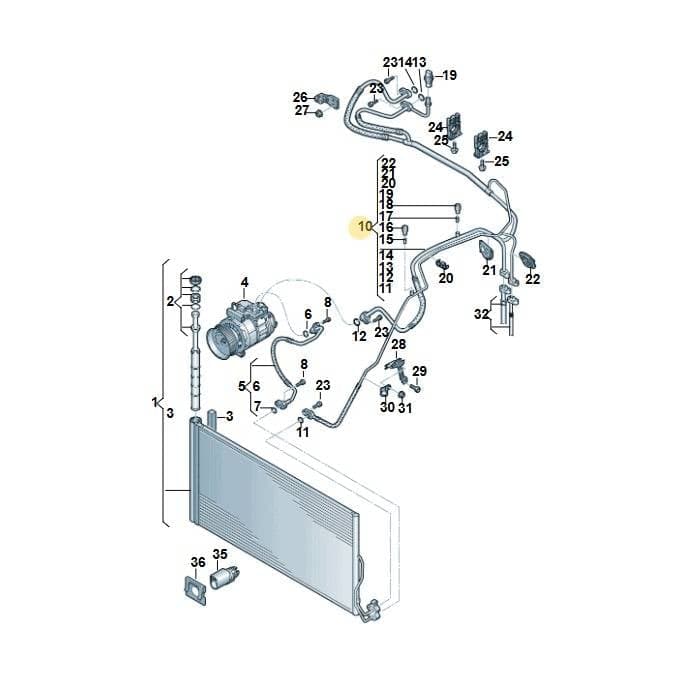

Number 10 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 7P2820741BM. This line is a critical component of the vehicle's air conditioning system, designed to connect various parts and facilitate the circulation of refrigerant. It is part of the AC system.
Catalogue entry: LINE rhd.
Fitted with: 7P1820741BG LINE, 7P1820741CB LINE, 7P2820741AK LINE, 7P1820741BH LINE, 7P1820741CC LINE, 7P2820741AL LINE, 7P2820741BN LINE, N10414402 SCREW.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 130 × 70 × 30 cm
- Shipping weight
- 1.46 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 9AD
- KK1
- L0R
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleRefrigerant Line — locate 7P2820741BM Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly36
- 1Condenser 7P0820411B
- 2Drier 7P0898191A
- 3Seal 7P0820877
- 5Line 7P0816721
- 5Line 7P0816721D
- 5Line 7P0820721H
- 5Line 7P0820721L
- 6Seal Ring 4E0260749A
- 8Screw N10414402
- 10LineLeft7P1820741BG
- 10LineLeft7P1820741CB
- 10LineRight7P2820741AK
- 10LineRight7P2820741AL
- 10LineRight7P2820741BN
- 10LineLeft7P1820741BH
- 10LineLeft7P1820741CC
- 11Seal Ring 3D0260749C
- 12Seal Ring 8E0260749C
- 14Seal Ring 4E0260749B
- 15Valve 8E0820855
- 16Part 3C0820581
- 18Part 3C0820231
- 19Pressure 4H0959126A
- 20Bracket 8E0260759AD
- 21Grommet 7P0820667
- 22Grommet 7P0820668
- 24Clip 7P0820055B
- 25Bolt N91123501
- 26Clip 7P0820055A
- 27Collar Nut N90455301
- 28Bracket 7P0820893A
- 29Bolt N91096701
- 30Clamp N0206015
- 31Collar Nut N01508210
- 35Sensor 8Z0820535
- 36Bracket 6Q0971845C
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Touareg BlueMotion | 2014-2018 | 10 | 1 | PR:9AD,KK1 |
Diagrams & fitment data powered by oemdiagrams.com
7P2820741BM Volkswagen Refrigerant Line | Genuine OEM is fitted on: Touareg BlueMotion 2014-2018.
