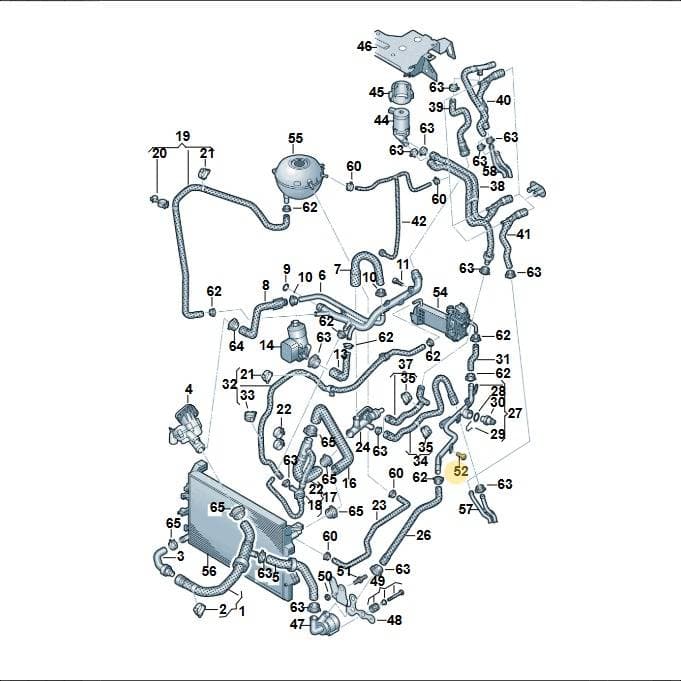

Number 52 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hex Socket Bolt, part number N10346904. This bolt is designed to secure engine components and is utilized within cooling systems. It is positioned at point 52 in the diagram. The bolt has a hexagonal socket head and a collar. Genuine OEM bolts ensure precise fitment and material integrity for critical engine and cooling system applications.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 73181568
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 1.6 × 1.3 × 1.3 cm
- Shipping weight
- 0.01 kg
Parts diagram & fitment
27 vehiclesBolt — locate N10346904 Volkswagen Hex Socket Bolt | Engine Cooling in the official exploded view and explore the surrounding assembly.
Parts in this assembly(32)
- 1Cylinder Head 059103265HX
- 1Cylinder Head 059103063CQ
- 2Cylinder Head 059103266HX
- 2Cylinder Head 059103064CK
- 3Cover N0119085
- 4Bolt N10205604
- 5Bolt 057103399B
- 6Part 06D103251
- 7Seal D176501A1
- 8Collar Nut N90446502
- 9Bolt N0444415
- 10Screw N10283304
- 12Washer 059103377
- 13Screw N91131501
- 14Cover 078103113E
- 16Seal 059103383CR
- 16Seal 059103383CS
- 16Seal 059103383CQ
- 17Seal 059103383CN
- 17Seal 059103383CP
- 17Seal 059103383CM
- 18Screw 057103384A
- 19Cover 059103469AC
- 20Cover 059103470R
- 21Seal 059103483M
- 22Seal 059103483N
- 23Bolt 06B103831J
- 25Connection 059103482C
- 26Seal Ring 057133287B
- 28Cover 06C103485P
- 29Seal 036115111B
- 30Seal 026103085D
Diagrams & fitment data powered by oemdiagrams.com
N10346904 Volkswagen Hex Socket Bolt | Engine Cooling is fitted on: Phaeton (lang) 2003-2006; Touareg 2003-2005; MARINE-MOTOR 02> 2002-; Touareg 08> 2007-; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019; Audi A8/S8/qu. lang 2003-2007; Audi A6/S6/Avant/qu. 05> 2004-; Audi A4/S4/Av./qu. 05> 2005-; AUDI A6L "CN"05> 2005-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi Q7 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; Audi RS6 Avant qu.5.0 2007-2010; Audi A6 2.7 TDI 2008-2011; Audi Q7 qu. 3.0 TDI 2009-2015; Cayenne 2007-2010; Cayenne 2010-2018.
