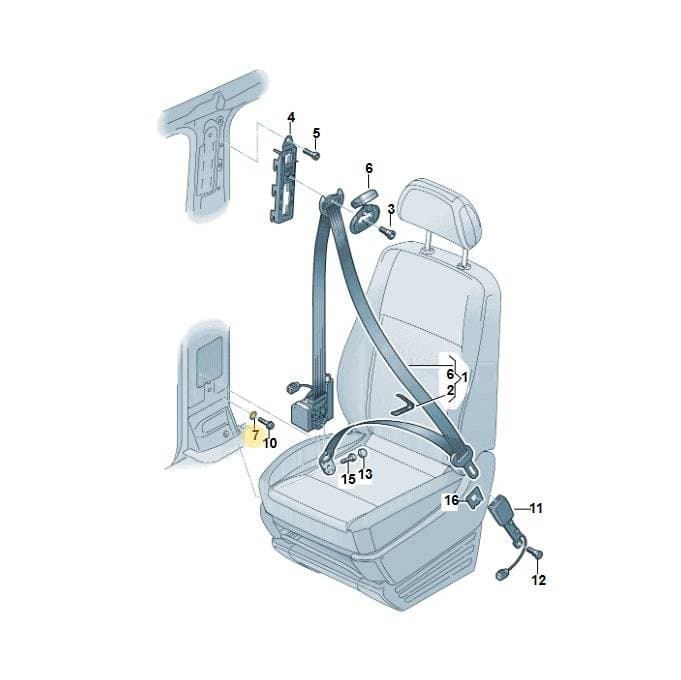

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Washer, part number N90649501. This washer is a flat ring or plate designed to be placed under a fastener, such as a bolt or screw. Its primary functions are to distribute the load of the fastener over a wider area and to prevent damage to the surface being fastened. Genuine OEM washers ensure correct material hardness and dimensions for optimal performance.
Technical details
- Category
- Body Interior
- Customs (HS) code
- 73182200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.5 × 2.5 × 0.1 cm
- Shipping weight
- 0 kg
Parts diagram & fitment
32 vehiclesWasher — locate N90649501 Volkswagen Washer | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Tube 6E0419561B
- 1BTube 6N0419581E
- 2Steer Col 3A0419505
- 3Steer ColRight6N2419507C
- 3Steer ColLeft6N1419507C
- 4Bracket 6E0419571
- 5RetainingRight6X2419721L
- 5RetainingLeft6X1419721N
- 8Sleeve 191419514
- 9Bush 6N2419599
- 10Bolt N90938501
- 12Ut Hexagon Nut Self-locking Hexagon Nut N0230026
- 13Part 6N0419227
- 14Part N10314801
- 15Washer N01166620
- 16Plate 6N0419635B
- 17Screw 6N0419620
- 17ASpring Rivet 481853577A
- 18Bolt 6N0419623A
- 20Retaining 6N0419595B
- 21Lever 6N0419621A
- 21Lever 6N0419621C
- 22Steer Bear 1H0419517A
- 24Seal Ring N90436502
- 26ASpring 357419546
- 28Ut Hexagon Nut Self-locking Hexagon Nut N0221469
- 29Bolt N90471802
- 31Collar Nut N90106304
- 32Bolt 6K0857663
Diagrams & fitment data powered by oemdiagrams.com
N90649501 Volkswagen Washer | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; POLO 1994-1999; LUPO/3L TDI 1998-2003; POLO 1999-2001; TRANSPORTER 2003-2005; LUPO/3L TDI 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019; AROSA 1997-2003; AROSA 2003-2004.
