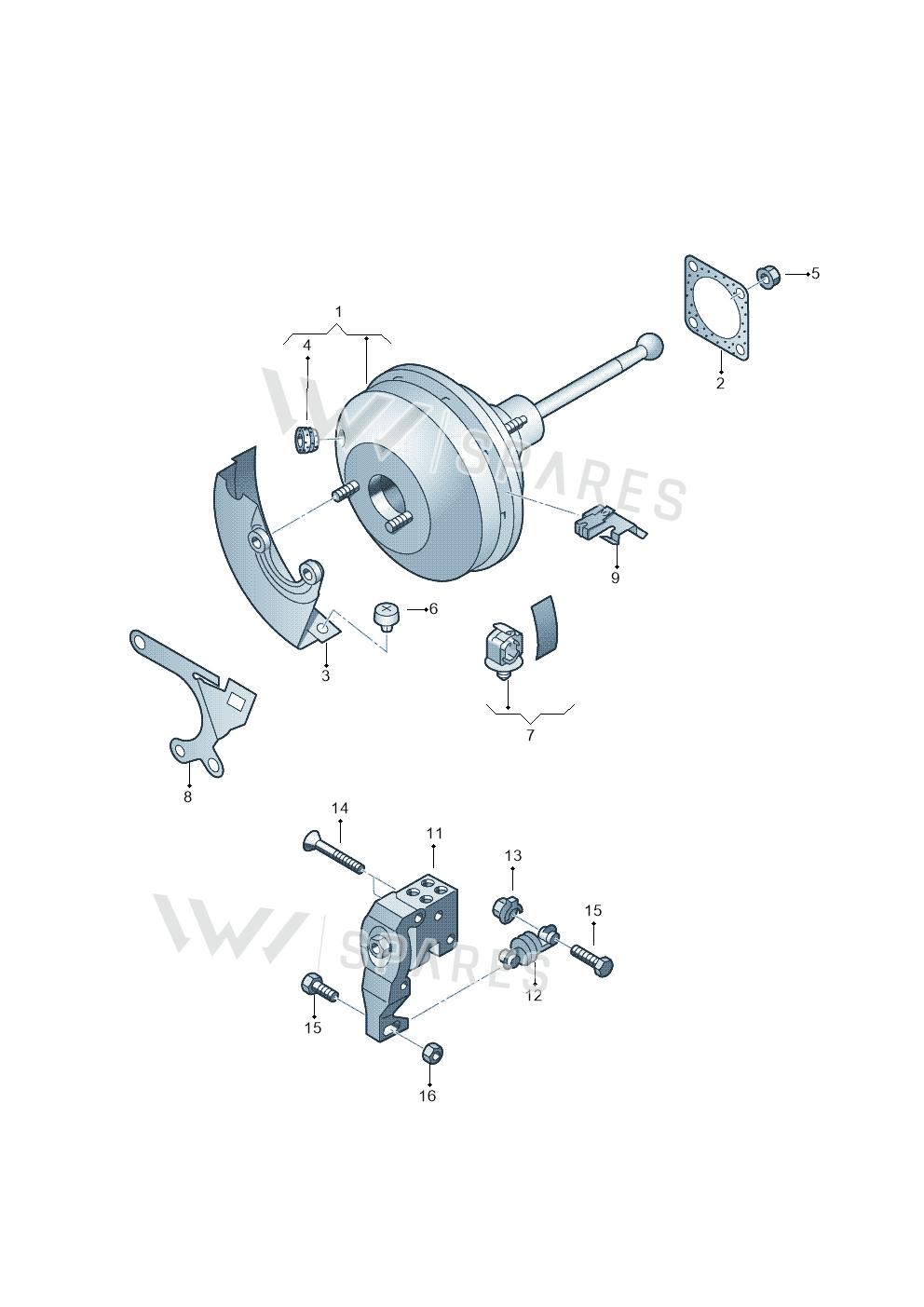

12-Point Head Bolt exploded parts diagram — ALTEA 07> · 2006-, position 5
Exploded view
ALTEA 07> · 2006- · position 5Full diagram ↓
N90950501

N90950501 12-Point Head Bolt

€3.73
incl. 21% VAT

€3.08 excl. VAT

Supersession road5 numbers since 2005
  1. 1Y0871025BNot stocked
    Apr 2005
  2. N90950501This pageNot stocked
    Feb 2009
  3. N90950502Not stocked
    Feb 2009
  4. WHT003382Not stocked
    Apr 2009
  5. WHT003382ACurrent number
Current part numberWHT003382AWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

8 vehicles

12-point Head Bolt — locate 12-Point Head Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly12
Vehicle fitment table9

Europe (8)

VehicleYearsPos.QtyPR
ALTEA 07>2006-52L0R
Audi A4/S4/Av./qu. 05>2005-52
JETTA 06>2005-52
TOLEDO 05>2004-52L0R
OCTAVIA/COMBI/4X4 04>2004-52
ALTEA2004-200652L0R
Audi A4/S4/Av./qu.2001-2004521VG
Passat/4Motion/W82000-200232

Listed without a diagram position (1)

VehicleYearsPos.QtyPR
TOURAN2003-20052L0

Diagrams & fitment data powered by oemdiagrams.com

12-Point Head Bolt is fitted on: ALTEA 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; JETTA 06> 2005-; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; Audi A4/S4/Av./qu. 2001-2004; Passat/4Motion/W8 2000-2002.
