N90950502 12-Point Head Bolt
€2.29 excl. VAT
- 1Y0871025BNot stocked
Apr 2005 - N90950501Not stocked
Feb 2009 - N90950502This pageNot stocked
Feb 2009 - WHT003382Not stocked
Apr 2009 - WHT003382ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

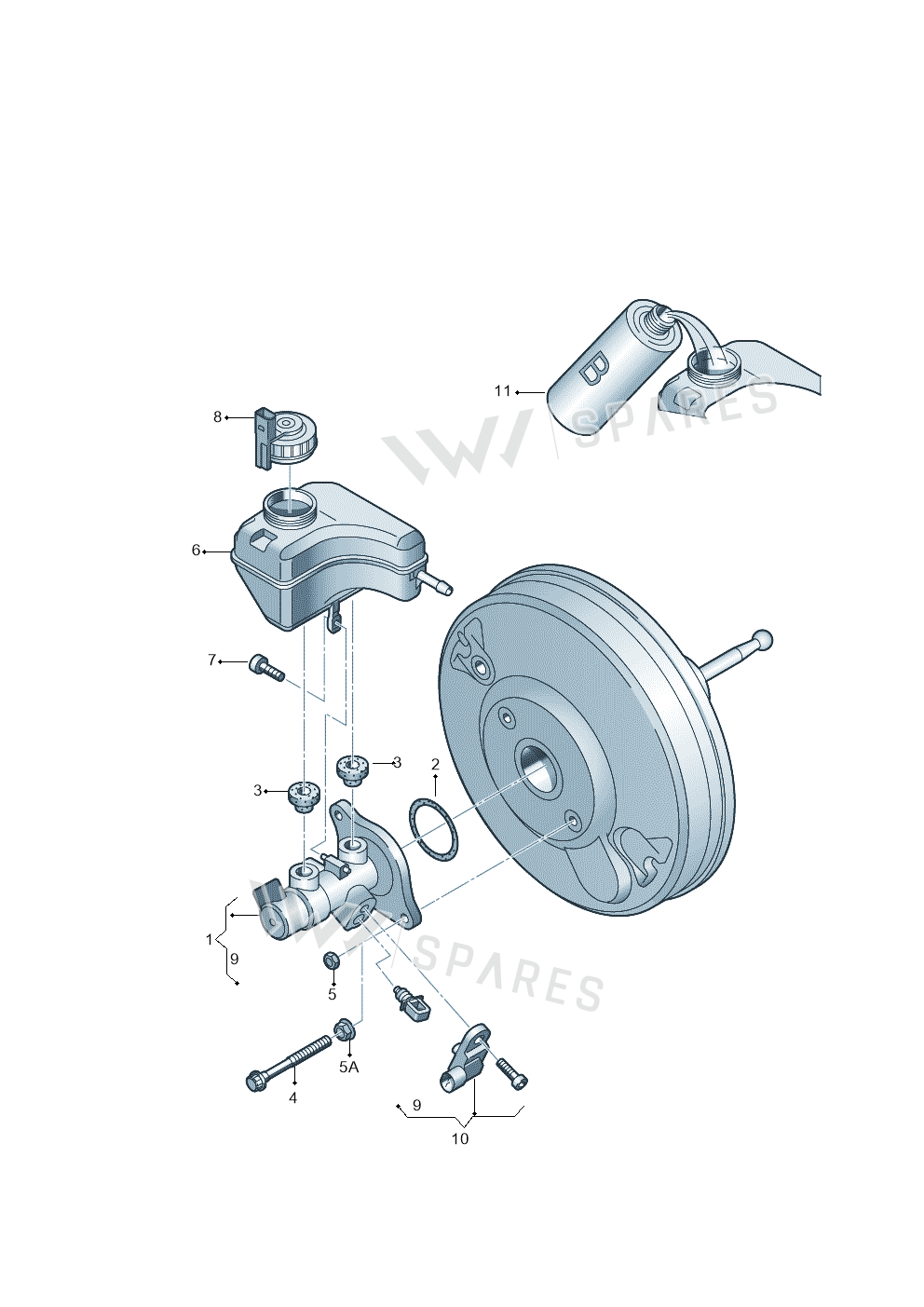

6 vehicles12-point Head Bolt — locate 12-Point Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Brake Cylinder 3C1614019E
- 1Brake Cylinder 3C2614019D
- 1Brake Cylinder 3C2614019E
- 1Brake Cylinder 3C1614019D
- 2Gasket 1J0611243
- 3Bungs 357611817
- 5Ut Hexagon Nut Self-locking Hexagon Nut N90074404
- 5APart WHT000001T
- 6Tank 3C2611301
- 6Tank 3C1611301
- 7Bolt WHT001399
- 8Part 1K2611349A
- 9Clip 8P0611671
- 10Rep Set 8P0698459B
- 11Brakefluid B000750M3
- 11Brakefluid B000750M6
- 11Brakefluid B000750M7
- 11Brakefluid B000750M9
- 11Brakefluid B000750M1
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Passat/4Motion 08 | 2007- | 4, 6 | 2 | L0R |
| Audi RS4 qu. 07> | 2006- | 5 | 2 | 1X1 |
| Audi A4/S4/Av./qu. 05> | 2005- | 5 | 2 | 1VG,1VH |
| Passat/4Motion | 2005-2007 | 6 | 2 | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 5 | 2 | |
| TOLEDO 05> | 2004- | 5 | 2 | L0R |
Diagrams & fitment data powered by oemdiagrams.com
12-Point Head Bolt is fitted on: Passat/4Motion 08 2007-; Audi RS4 qu. 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Passat/4Motion 2005-2007; OCTAVIA/COMBI/4X4 04> 2004-; TOLEDO 05> 2004-.
