Target · Diagram
Find this reference above

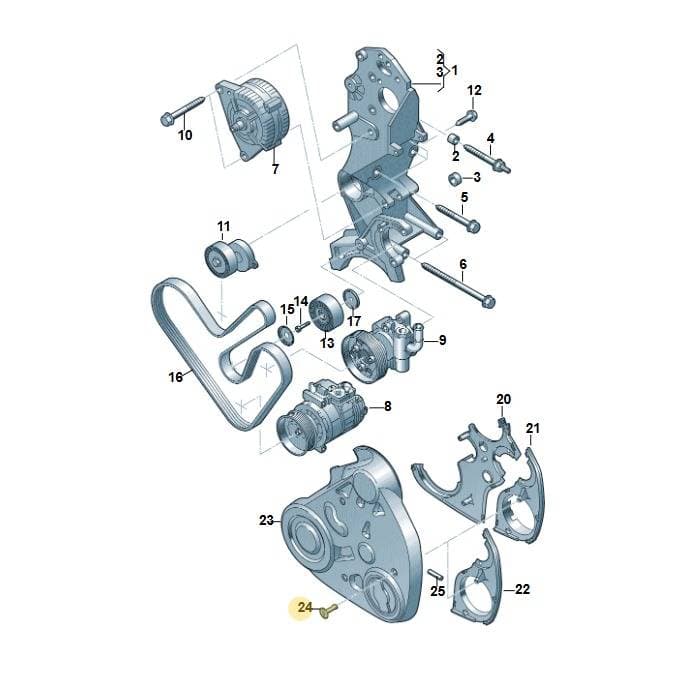

Number 24 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Locking Mechanism, part number WHT007412. This mechanism is designed to secure or fasten components, preventing unintended movement or disconnection. It is located at position 24 in the diagram. Genuine OEM locking mechanisms ensure precise engagement and reliable operation.
Catalogue entry: LOCK.MECH. ×4.
Fitted with: 03L903137AC PLY-V-BELT, 03L903137D PLY-V-BELT, 03L903139J BRACKET, N91182402 BOLT, N10699601 BOLT, N10514503 BOLT, N10610001 BOLT, 038903315AN TENSIONER, 038903315AP TENSIONER, N10640801 BOLT, 03G145276 ROLLER, 03L145276C ROLLER.
Technical details
- Category
- Battery & Charging
- Country of origin
- Germany
- Customs (HS) code
- 39269097
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.2 × 1.6 × 1.6 cm
- Shipping weight
- 0 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- TG9
- TV4
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesLocking Mechanism — locate WHT007412 Volkswagen Locking Mechanism | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly19
- 1Part 03L903139J
- 2Sleeve 038103139A
- 3Bush 068903147H
- 4Bolt N91182402
- 5Bolt N10699601
- 6Bolt N10514503
- 10Bolt N10610001
- 11Tensioner 038903315AP
- 11Tensioner 038903315AN
- 12Bolt N10640801
- 13Roller 03L145276C
- 13Part 03G145276
- 14Screw N10651701
- 15Part 03G145291
- 16Ply-v-belt 03L903137AC
- 17Part 03L145292
- 20Cover 03L903203A
- 21Part 03L903203B
- 23Part 03L903191A
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Amarok twin cab | 2022- | 24 | 4 | TU4 |
| Amarok twin cab | 2016-2022 | 24 | 4 | TU4 |
| Amarok twin cab | 2012-2016 | 24 | 4 | TN3 |
| Amarok twin cab | 2009-2012 | 24 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
WHT007412 Volkswagen Locking Mechanism | Genuine OEM is fitted on: Amarok twin cab 2022-; Amarok twin cab 2016-2022; Amarok twin cab 2012-2016; Amarok twin cab 2009-2012.
