02M409050X Final Drive Gearbox
€1,562.76 excl. VAT
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

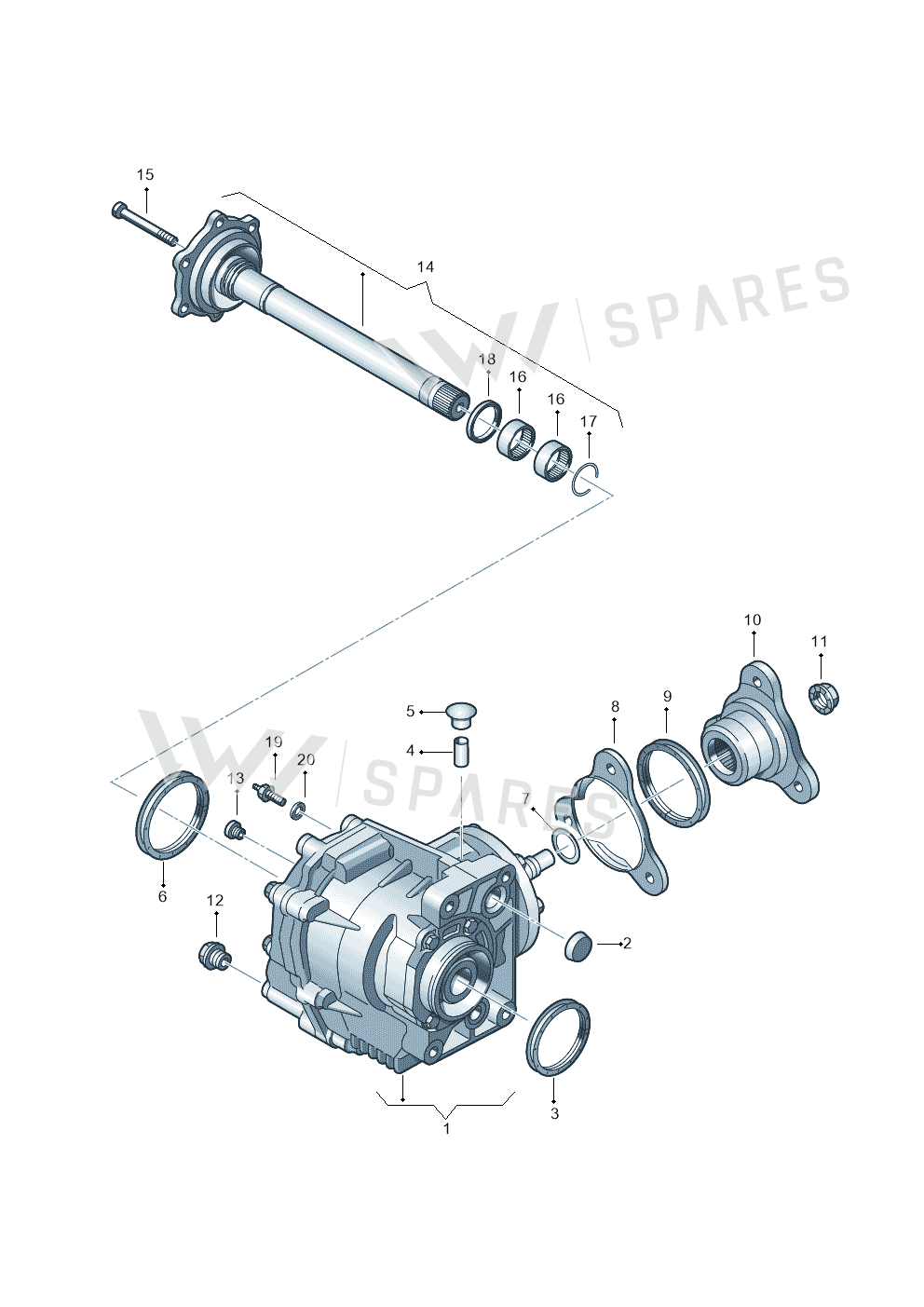

2 vehiclesFinal Drive Gearbox — locate Final Drive Gearbox in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 2Cover N01191410
- 3Seal 09A409529B
- 4Sleeve 012301474A
- 5Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 6Seal 02D525596B
- 7Shims 02M498114
- 8Part 02M409407
- 10Flange 02M409273A
- 11Part N90443801
- 12Screw 02M409057
- 13Bolt N90281802
- 14Flanshaft 02M409351H
- 15Screw 097409359
- 16Sleeve 012409139A
- 17Circlip 012409419
- 18Seal Ring 02M409464
- 19Stud N91002702
- 20Washer N0154026
Vehicle fitment table2
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi TT Coupe/Roadster | 2002-2006 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Golf 'R32' n. "USA" | 2004-2004 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Final Drive Gearbox is fitted on: Audi TT Coupe/Roadster 2002-2006; Golf 'R32' n. "USA" 2004-2004.
