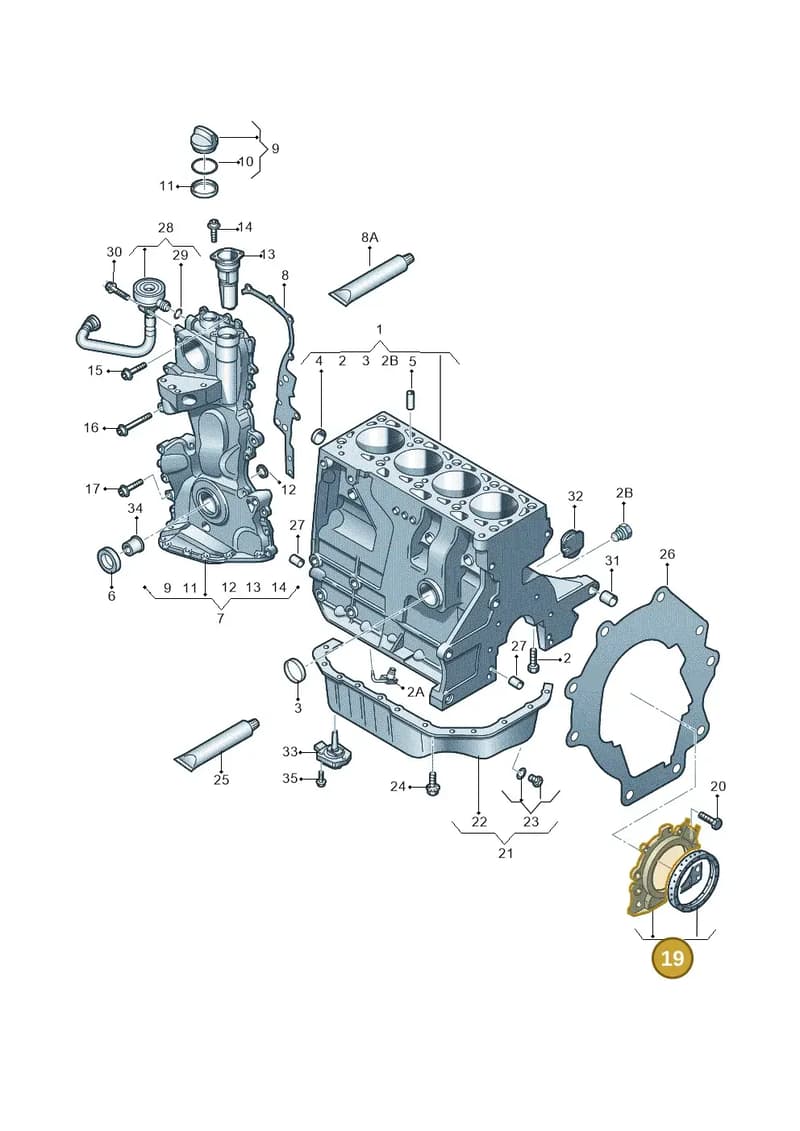

Number 19 marks the part’s position in this exploded view (SEAT Toledo Reference (2012-2015)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Flange, part number 030103171T. Fits SEAT Ibiza (2012). Shown as position 19 in the engine diagram 253103120. Equipment code: BTS.
Catalogue entry: FLANGE rear manual; BTS.
Fitted with: 03C103101T CYL.BLOCK, 03C103101AA CYL.BLOCK, 038103085E SEAL, 03C109287G SEAL, 03C109293 SEAL, N90440706 BOLT, N10653201 BOLT, N90500605 SCREW, N90712403 BOLT, N10655802 BOLT, N10300804 SCREW, 036103171B FLANGE.
Technical details
- Category
- Engine
- Diagram sheet
- SEAT 474103050, position 19
- ETKA group
- 1 / 03 (103)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- D3H
- G0C
- QG0
- QG1
- QG2
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
25 vehiclesFlange — locate 030103171T Volkswagen Flange in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Crankcase 03C103011AS
- 1Crankcase 03C103011AQ
- 2Bolt N91107801
- 2AVent 03C103157A
- 2BBolt N90813202
- 4Cover N01190710
- 5Sleeve 03C103143
- 6Seal 038103085E
- 7Case 03C109210AL
- 8Seal 03C109287G
- 8APart D176501A1
- 9Cover 026103485L
- 10Seal 06A103483D
- 11Seal Ring 03C133287A
- 12Seal 03C109293
- 16Bolt N90712401
- 16Bolt N90712403
- 17Screw N10300804
- 19Flange 036103171B
- 20Bolt N0902619
- 21Oil Sump 03C103603T
- 24Screw N90500605
- 25Seal D176600A1
- 26Spacer Pl 03C103551H
- 26Spacer Pl 036103551R
- 27Part N0432072
- 31Sleeve 022103139B
Compatible / alternative parts(1)
Vehicle fitment table25
Europe (21)

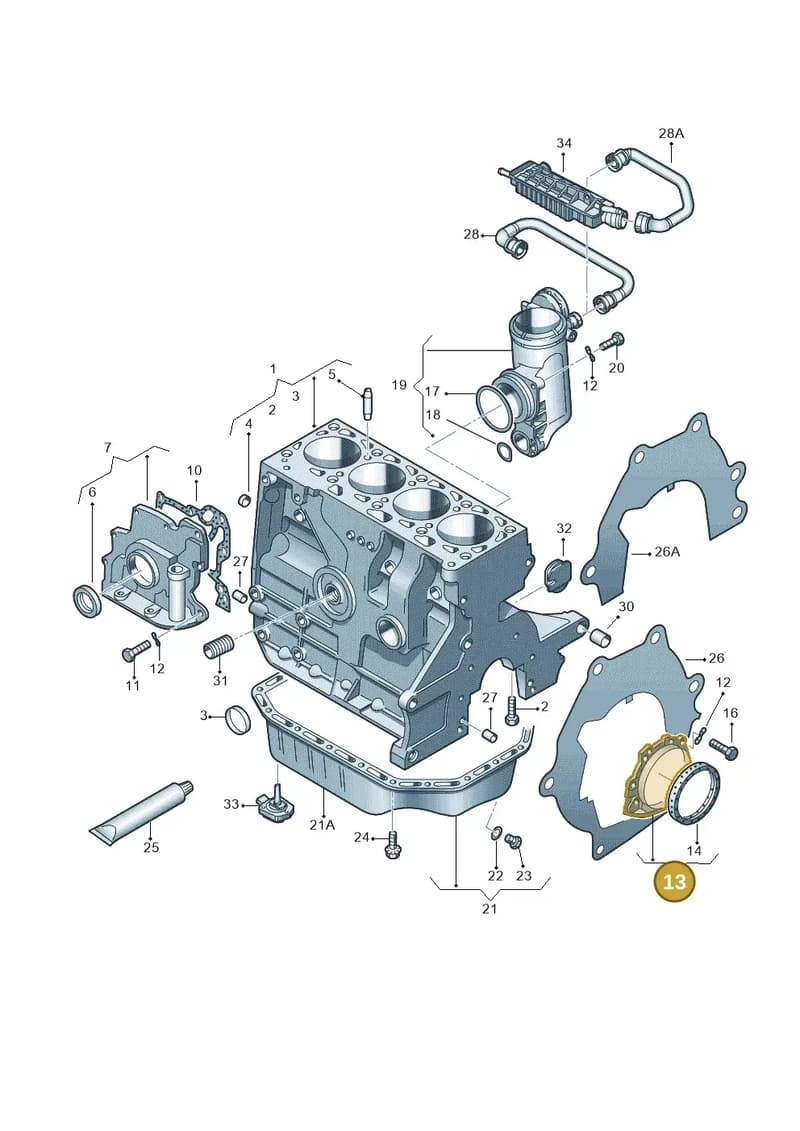

| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Toledo Reference | 2012-2015 | 19 | 1 | D4X | |
| Ibiza Reference | 2012-2012 | 19 | 1 | BTS | |
| Ibiza Reference | 2011-2012 | 19 | 1 | BTS | |
| Roomster | 2010-2015 | 19 | 1 | ||
| Fabia Scout | 2010-2014 | 19 | 1 | D | |
| GOLF VARIANT 07> | 2007- | 19 | 1 | ||
| GOLF PLUS 08> | 2007- | 19 | 1 | M | |
| Passat/4Motion 08 | 2007- | 19 | |||
| Audi A3/S3/Sportb./qu. 08 | 2007- | 19 | 1 | D | |
| JETTA 06> | 2006- | 19 | |||
| TOURAN | 2006- | 19 | |||
| POLO | 2005- | 13, 19 | 1 | BKY | |
| JETTA 06> | 2005- | 19 | 1 | ||
| GOLF PLUS 05> | 2005- | 19 | 1 | D4P,D4R | |
| IBIZA 06> | 2005- | 13 | |||
| CORDOBA 06> | 2005- | 13, 19 | |||
| TOURAN | 2005-2006 | 19 | 1 | BMY | D4R |
| FABIA/COMBI 05> | 2004- | 13 | 1 | BKY | G0C |
| CORDOBA/SE241 | 2002-2005 | 13 | 1 | BKY | |
| POLO | 2001-2005 | 13 | 1 | F 9N-5-000 001 | |
| IBIZA | 2001-2005 | 13 | F 6 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 19 | |||
| POLO CLASSIC "ZA"05> | 2005- | 19 | |||
| Golf/Rabbit | 2005-2007 | 19 | 1 | D4P,D4R | |
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 13 | 1 | G0C,MN7 |
Diagrams & fitment data powered by oemdiagrams.com
030103171T Volkswagen Flange is fitted on: Toledo Reference 2012-2015; Ibiza Reference 2012-2012; Ibiza Reference 2011-2012; Roomster 2010-2015; Fabia Scout 2010-2014; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; Audi A3/S3/Sportb./qu. 08 2007-; JETTA 06> 2006-; TOURAN 2006-; POLO 2005-; JETTA 06> 2005-; GOLF PLUS 05> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; TOURAN 2005-2006; FABIA/COMBI 05> 2004-; CORDOBA/SE241 2002-2005; POLO 2001-2005; IBIZA 2001-2005; Golf/Rabbit 08> 2007-; POLO CLASSIC "ZA"05> 2005-; Golf/Rabbit 2005-2007; POLO LIM.(SEDAN) "BR" 2002-2006.
