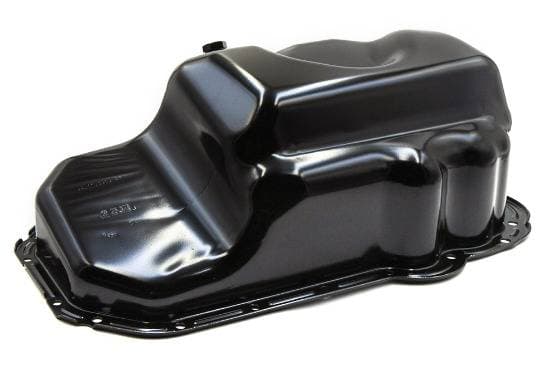

Genuine OEM Volkswagen Engine Oil Pan, part number 03C103601BJ. This critical component is located at the bottom of the engine, serving as a reservoir for engine oil, which is essential for lubrication, cooling, and cleaning engine internals. Constructed from durable stamped steel with a protective black finish, it is designed to withstand engine vibrations and road debris. Weighing approximately 2.22 kg, a genuine OEM oil pan ensures a perfect seal and proper oil capacity, preventing leaks and maintaining the engine's vital oil supply for long-term reliability.
Catalogue entry: OIL SUMP; OIL SUMP.
Fitted with: N10248003 SCREW, D176600M1 SEAL.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42 × 24.5 × 16.5 cm
- Shipping weight
- 2.22 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

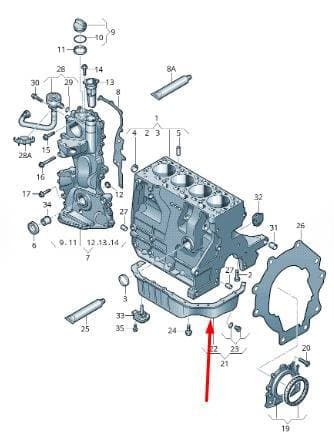

12 vehiclesEngine Oil Sump — locate 03C103601BJ Volkswagen Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Cylinder Block 03C103101AA
- 1Part 03C103011BP
- 2Bolt N91107801
- 3Cover 036103113A
- 3Cover 03C103113
- 4Cover N01190710
- 5Sleeve 03C103143
- 6Seal 038103085E
- 7Case 03C109210BT
- 7Case 03C109210BH
- 7Case 03C109210BL
- 8Seal 03C109287G
- 8ASeal D176501A1
- 9Cover 04E103485A
- 10Seal 06A103483D
- 12Seal 03C109293
- 13Separator 03C103464D
- 13Separator 03C103464A
- 14Bolt N91096702
- 14Bolt N10653201
- 15Screw N90500605
- 15Screw N91096901
- 16Bolt N10655802
- 17Screw N10300804
- 19Flange 036103171B
- 20Bolt N90842402
- 20Screw N91099101
- 21Oil Sump 03C103601BE
- 23Bolt N90813202
- 24Screw N10248003
- 25Seal D176600A1
- 26Spacer Pl 03C103551L
- 26Spacer Pl 03C103551A
- 27Part N0432072
- 28Valve 03C103201K
- 28ABracket 03C103733A
- 29Seal Ring N90613201
- 30Bolt N91089601
- 31Sleeve 022103139B
Vehicle fitment table12
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Jetta 1.6 | 2014-2018 | 21 | ||
| jetta | 2013-2014 | 21 | ||
| Rapid | 2012-2022 | 22 | ||
| Toledo Reference | 2012-2015 | 21 | ||
| Polo | 2012-2014 | 21 | 1 | CNKA |
| Ibiza Reference | 2012-2012 | 21 | ||
| Ibiza Reference | 2011-2012 | 21 | ||
| Polo | 2010-2015 | 21 | 1 | |
| Roomster | 2010-2015 | 21 | 1 | CFNA |
| Fabia Scout | 2010-2014 | 21 | ||
| Polo | 2009-2012 | 21 | 1 | CNKA |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Polo 1.6 | 2015-2020 | 21 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
03C103601BJ Volkswagen Engine Oil Pan | Genuine OEM is fitted on: Jetta 1.6 2014-2018; jetta 2013-2014; Rapid 2012-2022; Toledo Reference 2012-2015; Polo 2012-2014; Ibiza Reference 2012-2012; Ibiza Reference 2011-2012; Polo 2010-2015; Roomster 2010-2015; Fabia Scout 2010-2014; Polo 2009-2012; Polo 1.6 2015-2020.
