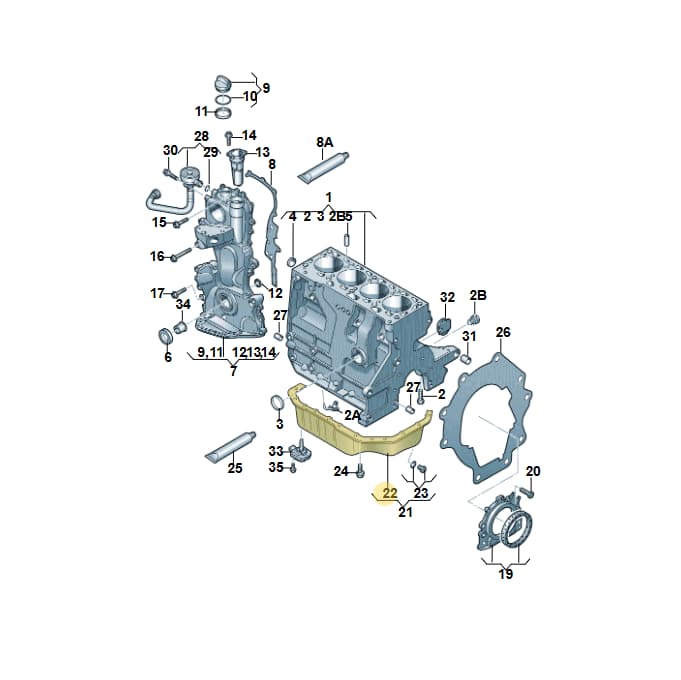

Number 22 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Engine Oil Sump, part number 03C103603S. This part collects and stores engine oil, ensuring proper lubrication for engine components. It is located at the bottom of the engine assembly. Constructed from durable metal, it is designed to withstand engine operating temperatures and pressures. Genuine OEM ensures exact fit and factory quality for reliable engine operation.
Catalogue entry: OIL SUMP BTS; use if required: 03G 103 707; 038 103 196; N 910 652 01 ×3; N 908 132 02.
Use with: 03G103707, 038103196, N91065201 (×3), N90813202. Fitted with: 03C103601BJ OIL SUMP.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42 × 23.8 × 16 cm
- Shipping weight
- 2.18 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- D3H
- G0C
- G1C
- QG0
- QG1
- QG2
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
27 vehiclesOil Sump — locate 03C103603S Volkswagen Engine Oil Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Part 03C103101G
- 3Cover 036103113A
- 4Cover 03C103113
- 5Sleeve N90505001
- 6Seal 038103085E
- 7Case 03C109210R
- 8Seal 03C109287G
- 8ASeal D176501A1
- 9Cover 06B103485C
- 10Seal 06A103483D
- 11Seal Ring 03C133287A
- 12Seal 03C109293
- 13Separator 03C103464A
- 14Bolt N90440701
- 15Screw N90500605
- 16Bolt N90712403
- 17Screw N10300804
- 19Flange 030103171L
- 20Bolt N90842402
- 22Oil Sump 03C103601SA
- 23Bolt N90813202
- 25Seal D176404A2
- 26Spacer Pl 036103551R
- 27Part N0432072
- 28Valve 03C103201D
- 29Seal Ring N90613201
- 30Screw N10423901
- 31Sleeve 022103139
- 32Bungs 030103037E
Compatible / alternative parts(12)
Vehicle fitment table27
Europe (24)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Ibiza Reference | 2012-2012 | 21 | |||
| Ibiza Reference | 2011-2012 | 21 | |||
| Roomster | 2010-2015 | 21 | |||
| Fabia Scout | 2010-2014 | 21 | |||
| passat estate | 2008-2011 | 22 | 1 | BLF | |
| Ibiza Reference | 2008-2011 | 21 | |||
| Polo | 2008-2009 | 21 | |||
| GOLF PLUS 08> | 2007- | 22 | 1 | BLF | |
| Passat/4Motion 08 | 2007- | 22 | 1 | BLF | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 21 | 1 | D4K | |
| EOS-Cabriolet-Coupe | 2006- | 22 | 1 | ||
| TOURAN | 2006- | 22 | 1 | BLF | D4K |
| ROOMSTER 06> | 2006- | 21 | |||
| FABIA/COMBI NF 07> | 2006- | 21 | |||
| GOLF PLUS 05> | 2005- | 22 | 1 | BLN,BLF | |
| POLO | 2005- | 22 | 1 | BTS,AXU | |
| JETTA 06> | 2005- | 21 | 1 | D4K | |
| Passat/4Motion | 2005-2007 | 22 | 1 | QG1 | |
| Audi A3/S3/quattro | 2005-2007 | 21 | 1 | ||
| TOURAN | 2005-2006 | 22 | 1 | BLF | D4K |
| OCTAVIA/COMBI/4X4 04> | 2004- | 21 | |||
| TOURAN | 2003-2005 | 22 | 1 | D4K | |
| GOLF | 2003-2005 | 22 | 1 | ||
| POLO | 2001-2005 | 22 | 1 | D3M |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 22 | 1 | BLF | |
| POLO CLASSIC "ZA"05> | 2005- | 21 | 1 | BTS | |
| Golf/Rabbit | 2005-2007 | 22 |
Diagrams & fitment data powered by oemdiagrams.com
03C103603S Volkswagen Engine Oil Sump | Genuine OEM is fitted on: Ibiza Reference 2012-2012; Ibiza Reference 2011-2012; Roomster 2010-2015; Fabia Scout 2010-2014; passat estate 2008-2011; Ibiza Reference 2008-2011; Polo 2008-2009; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; Audi A3/S3/Sportb./qu. 08 2007-; EOS-Cabriolet-Coupe 2006-; TOURAN 2006-; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; GOLF PLUS 05> 2005-; POLO 2005-; JETTA 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; OCTAVIA/COMBI/4X4 04> 2004-; TOURAN 2003-2005; GOLF 2003-2005; POLO 2001-2005; Golf/Rabbit 08> 2007-; POLO CLASSIC "ZA"05> 2005-; Golf/Rabbit 2005-2007.
