Product overview
Genuine OEM Audi Timing Case, part number 03C109210CN. This component forms the outer enclosure for the engine's timing chain or belt system, protecting it from contaminants and retaining lubricating oil. It is mounted to the front of the engine block. Constructed from durable metal, it is designed to withstand engine operating temperatures and pressures. Genuine OEM parts ensure precise fitment and optimal engine timing.
Technical details
- Category
- Belts, Chains & Tensioners
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 49 × 48.5 × 33 cm
- Shipping weight
- 3.99 kg
Parts diagram & fitment

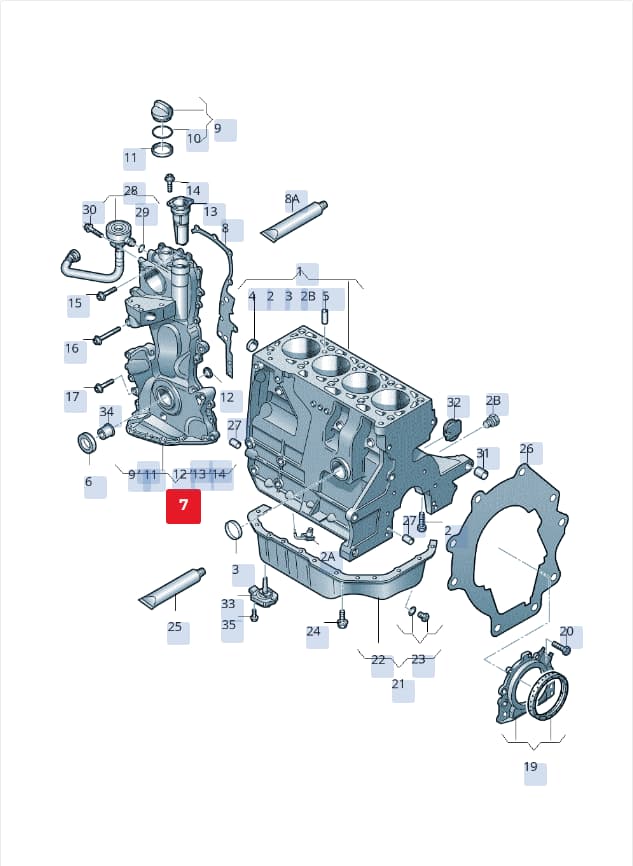

3 vehiclesTiming Case — locate 03C109210CN Audi Timing Case | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Crankcase 03C103011AS
- 2Bolt N91107801
- 2AVent 03C103157A
- 2BScrew N90856005
- 4Cover N01190710
- 5Sleeve 03C103143
- 6Seal 038103085E
- 7Case 03C109210AS
- 7Case 03C109210CL
- 7Case 03C109210T
- 8Seal 03C109287G
- 8APart D176501A1
- 9Cover 06B103485C
- 10Seal 06A103483D
- 11Seal Ring 03C133287D
- 12Seal 03C109293
- 14Bolt N90440706
- 15Screw N90500605
- 16Bolt N90712403
- 17Screw N10300804
- 19Flange 036103171B
- 20Bolt N0902619
- 21Oil Sump 03C103603T
- 23Bolt N90813202
- 25Seal D176600M1
- 26Spacer Pl 036103551R
- 26Spacer Pl 03C103551H
- 27Part N0432072
- 31Sleeve 022103139B
Compatible / alternative parts(12)
- Part 03C109287F
- Part 038103085E
- Part 03C109287G
- Part 038103085Q
- Part 054115147
- Part 054115147B
- Part 058103598D
- Part 058103603
- Part AMV17400401
- Part AMV176501
- Part D174003A2
- Part D174003M2
Diagrams & fitment data powered by oemdiagrams.com
03C109210CN Audi Timing Case | Genuine OEM is fitted on: Audi A1 Sportback 2010-2015; Toledo Reference 2012-2015; Rapid 2012-2022.
