04L103139A Cylinder Pin
€1.60 excl. VAT
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

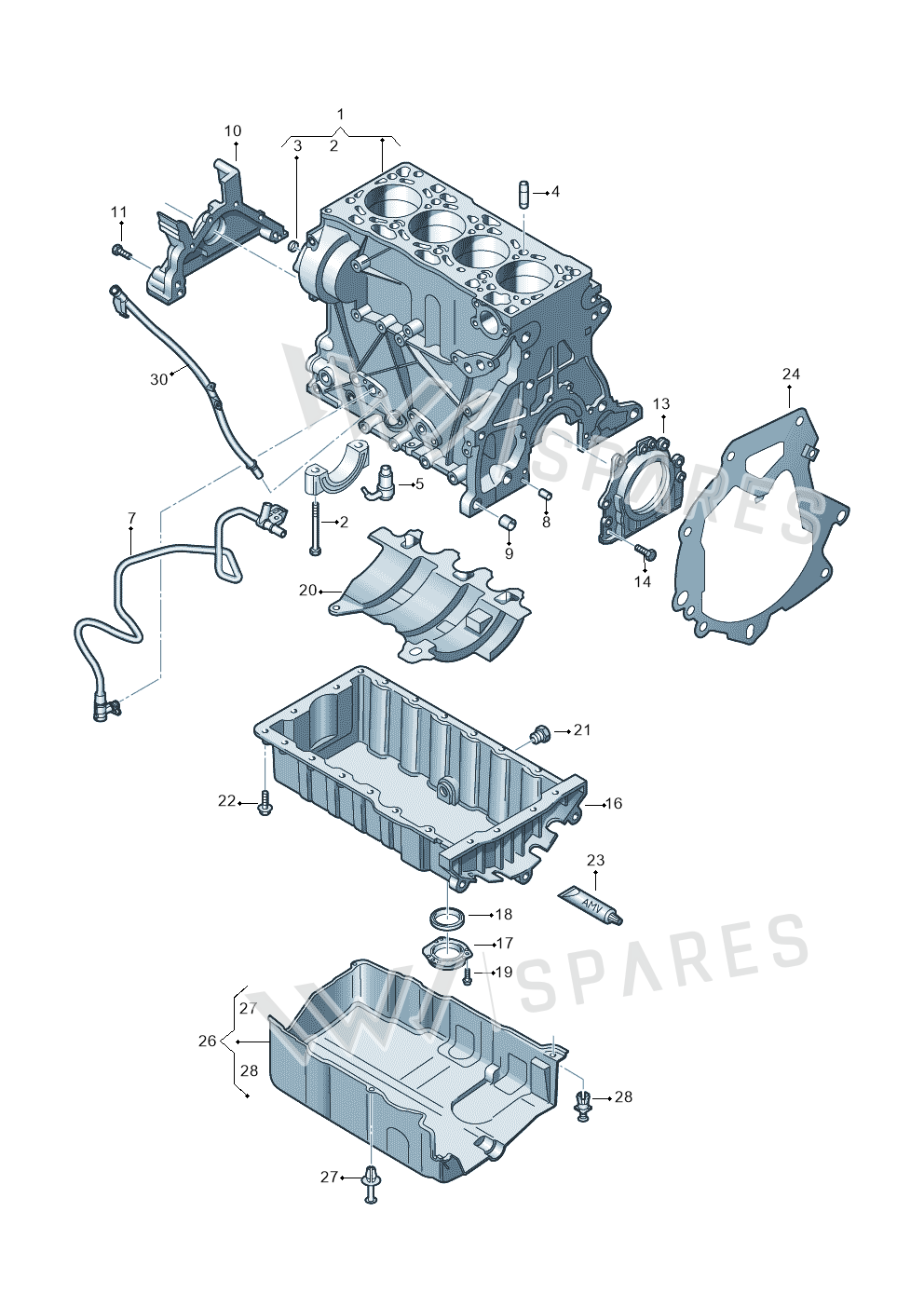

8 vehiclesCylinder Pin — locate Cylinder Pin in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Crankcase 04L103011A
- 2Bolt N90889701
- 2Bolt WHT008383
- 3Cover N01190710
- 4Part WHT006540
- 5Vent 038103157C
- 5Vent 04L103157F
- 5Vent 038103157B
- 8Part N0432072
- 9Sleeve 022103139B
- 10Part 04L103151A
- 11Bolt N90945002
- 13Flange 04L103171
- 16Part 04L103603
- 17Cover 03G103707
- 18Seal Ring 038103196
- 19Screw N91065201
- 20Lock 04L103623E
- 20Lock 04L103623F
- 21Bolt N90813202
- 22Bolt N90735604
- 23Seal D176501A1
- 24Cover 03N103647
- 24Cover 04L103647
- 26Cover 04L103660
- 26Cover 04L103660A
- 27Spring Rivet 03L863788A
- 28Part 03L103728
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Octavia | 2012-2017 | 4, 37 | 2 | |
| Golf 1.4 BlueMotion | 2012-2017 | 4 | 2 | |
| Audi A3 Sportback | 2012-2016 | 4, 37 | 2 | |
| Leon ST Stylance | 2012-2016 | 4 | 2 | |
| Audi A5 Sportback | 2011-2017 | 37 | 2 | TD1 |
| Audi A5 Cabrio 2.0 | 2011-2017 | 37 | 2 | TD1 |
| audi a4 av. 2.0 tdi | 2011-2015 | 37 | 2 | TD1 |
| Audi A4 Av. Allroad | 2008-2016 | 37 | 2 | TD1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Pin is fitted on: Octavia 2012-2017; Golf 1.4 BlueMotion 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A4 Av. Allroad 2008-2016.
