Product overview

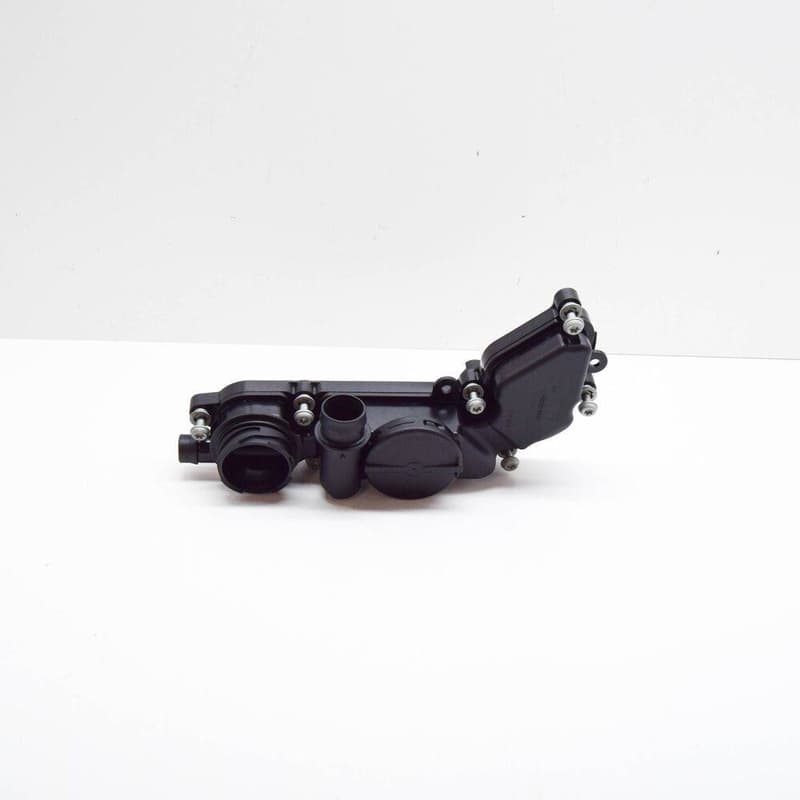

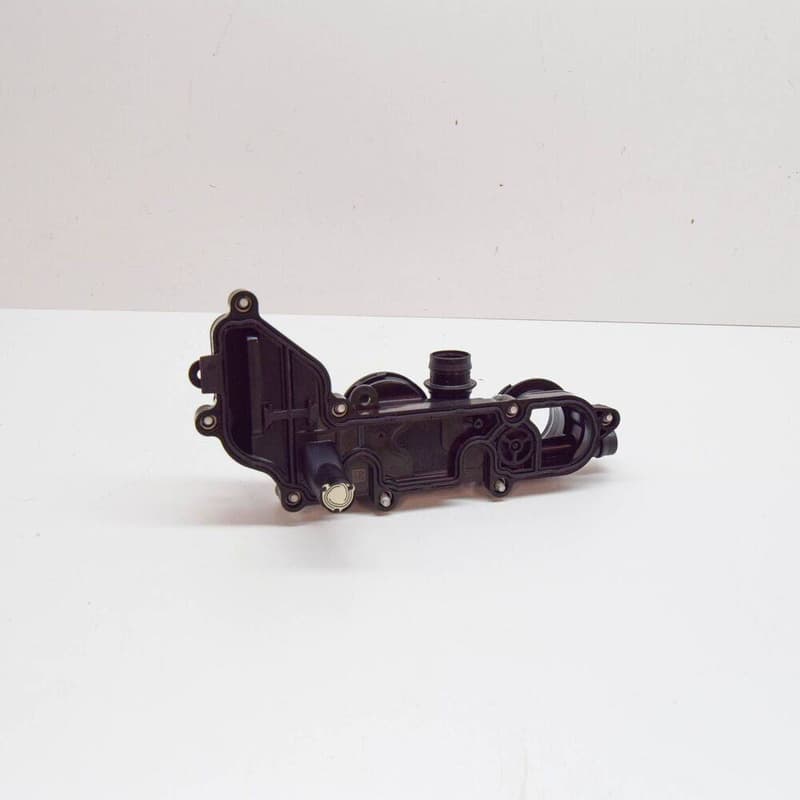

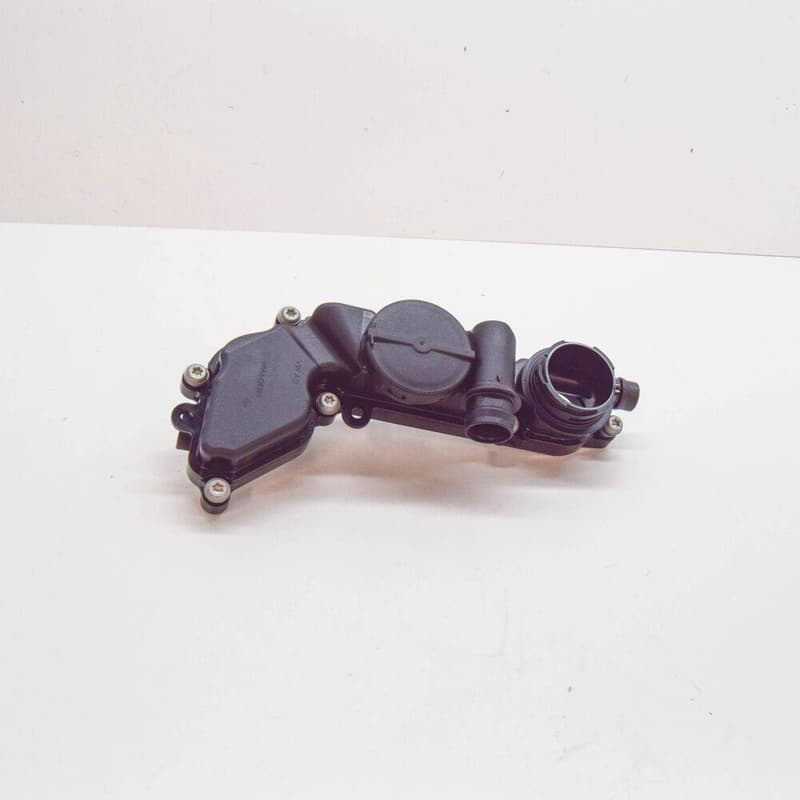

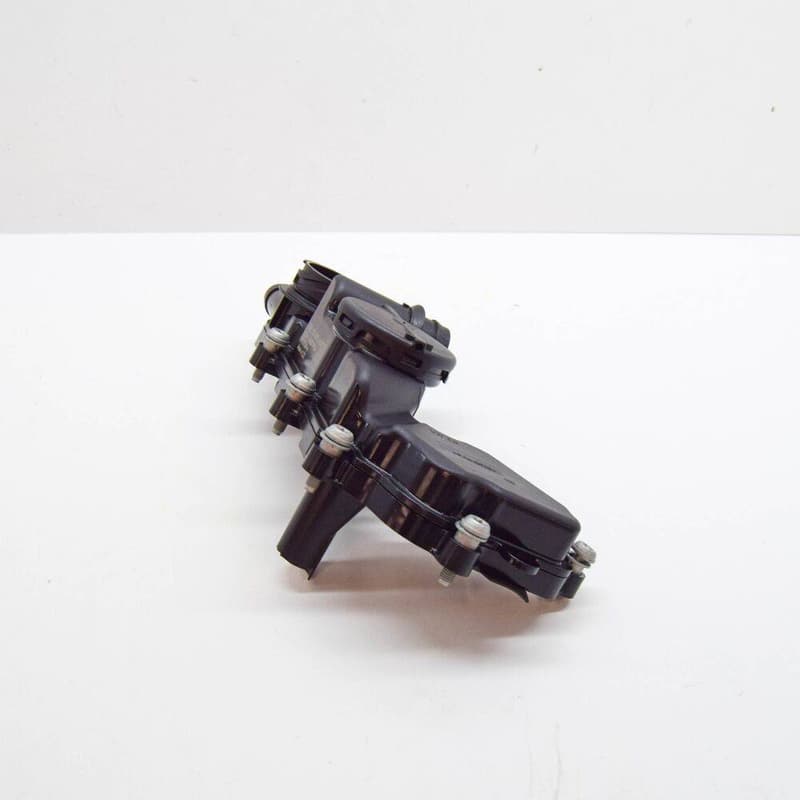

Genuine OEM Audi Engine Oil Separator, part number 05E103495AH. This critical component is designed to separate oil vapor from crankcase gases before they are recirculated into the engine's intake system, preventing oil sludge buildup and maintaining engine efficiency. It is typically mounted on or near the engine as part of the PCV system. Constructed from durable, heat-resistant plastic, this separator weighs approximately 0.482 kg. Choosing a genuine OEM oil separator ensures precise filtration efficiency, correct pressure regulation, and long-term durability, which are vital for maintaining engine performance and meeting emissions standards.

Technical details

Category
Engine
Country of origin
Czech Republic
Customs (HS) code
84099100
Manufacturer
Audi
Product Type
Genuine new auto parts
Shipping size (L × W × H)
28 × 13 × 11 cm
Shipping weight
0.48 kg

Parts diagram & fitment

14 vehicles

Oil Separator — locate 05E103495AH Audi Engine Oil Separator | Genuine OEM in the official exploded view and explore the surrounding assembly.

Parts in this assembly(48)
  • 1Cylinder Head 05E103063F
  • 1Oil Sump 06K103600AE
  • 1Oil Sump 06K103600R
  • 2Oil Sump 06K103603CQ
  • 2Cover N01191410
  • 3Insert 06K103138P
  • 4Bolt N10347204
  • 4Bungs N90802703
  • 5Bolt N10087802
  • 5Bolt N91071702
  • 5Screw N91173601
  • 6Seal 04E103383CC
  • 6Oel Sensor 06K907637B
  • 7Seal Ring N0282222
  • 8Collar Nut N01508210
  • 8Screw WHT007089
  • 9Part 026103139
  • 9Bolt N91211201
  • 10Cylinder Head 04E103469DH
  • 10Screw N10766301
  • 11Seal 04E103483S
  • 11Screw N10765501
  • 12Seal 04E103085AF
  • 13Cover 05E103485C
  • 13Cover 05E103485J
  • 13Valve 06K115243L
  • 13ASeal Ring N91056801
  • 14Part 06L103801
  • 14Part 06L103801D
  • 15Seal D176501A1
  • 15Bolt N91254301
  • 17Seal 04E103085C
  • 18Pulley 04E109111AP
  • 19Gasket 06K103649J
  • 19Screw N10689301
  • 20Valve 04E906048A
  • 21Valve 04E906455AC
  • 21Bolt N10196104
  • 21Screw N91168701
  • 22Protection 04E109121D
  • 22Protection 04E109121N
  • 22Bungs 06K103035
  • 23Seal Ring 038103196C
  • 23Seal Ring 038103196D
  • 23Screw N91097201
  • 24Sender 05E907601D
  • 29Cover 04C103335
  • 30Bolt N91096701
Compatible / alternative parts(4)
  • Part WHT001386
  • Part 04E145853E
  • Part 05E103517D
  • Part WHT003247

Diagrams & fitment data powered by oemdiagrams.com

05E103495AH Audi Engine Oil Separator | Genuine OEM is fitted on: Audi A1 sportback 1.0 2018-; Audi A3 Sportback 2019-2021; Audi Q3 quattro 2018-2019; Audi Q2 2.0 TDI 2016-2018; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Kodiaq 2016-2024; Octavia 2017-2020; Karoq 2017-2022; Superb Combi 2015-2024; Taigun 1.0 2021-; Virtus 1,0 2022-; Tiguan 2.0 4Motion 2017-2024; Leon ST Stylance 2016-2020.
