Product overview
Genuine OEM Audi pivot bearing, part number 06E109220. This component is designed for the timing chain assembly, providing a stable pivot point for internal engine components. It is engineered to maintain precise tolerances for smooth, low-friction operation within the engine timing system. Genuine OEM parts are critical for this application to ensure factory-specified clearances and long-term reliability under high-stress engine conditions.
Technical details
- Category
- Belts, Chains & Tensioners
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 1.5 × 1.5 × 4 cm
- Shipping weight
- 0.02 kg

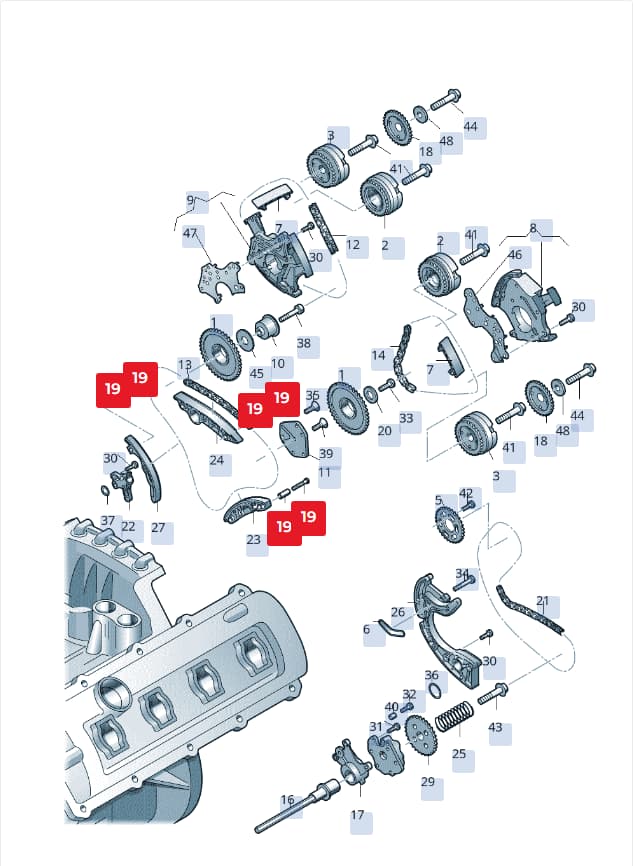

Parts diagram & fitment
4 vehiclesBearing Pin — locate 06E109220 Audi Pivot Bearing | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 079109510F — the later replacement part.
Parts in this assembly(41)
- 1Chn Sprckt 059109077E
- 2AdjusterLeft06E109083G
- 2AdjusterRight06E109084G
- 5Chn Sprckt 057109116J
- 8Tensioner 06E109217H
- 9Tensioner 06E109218AQ
- 10Part 057109224D
- 11Part 057109224B
- 12Timing Cha 06E109229A
- 13Timing Cha 06E109229F
- 14Timing Cha 079109229L
- 16Part 06E109339K
- 17Plate 06E109360A
- 18Chn Sprckt 06E109571A
- 19Screw N91100901
- 20Washer 079109435G
- 21Timing Cha 06E109465
- 22Tensioner 06E109467H
- 23Rail 059109469F
- 24Rail 059109469E
- 25Press Spring 059109481
- 26Tensioner 06E109507C
- 26Tensioner 06E109507D
- 27Rail 079109510F
- 29Chn Sprckt 06E109570B
- 30Bolt N10124307
- 30Bolt N10451409
- 30Bolt N10124306
- 32Bolt N10413401
- 37Seal Ring N90364901
- 38Screw N90668202
- 39Bolt N90954901
- 40Sleeve N91020801
- 41Screw N91042801
- 42Screw N91065501
- 43Screw N91073701
- 44Screw N91050201
- 45Washer WHT000124
- 46Seal 06E109139G
- 47Seal 06E109139F
- 48Washer N91064801
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
06E109220 Audi Pivot Bearing | Genuine OEM is fitted on: AUDI A6L "CN"05> 2005-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A8/S8/qu. lang 08> 2007-; Audi A6 2.7 TDI 2008-2011.
