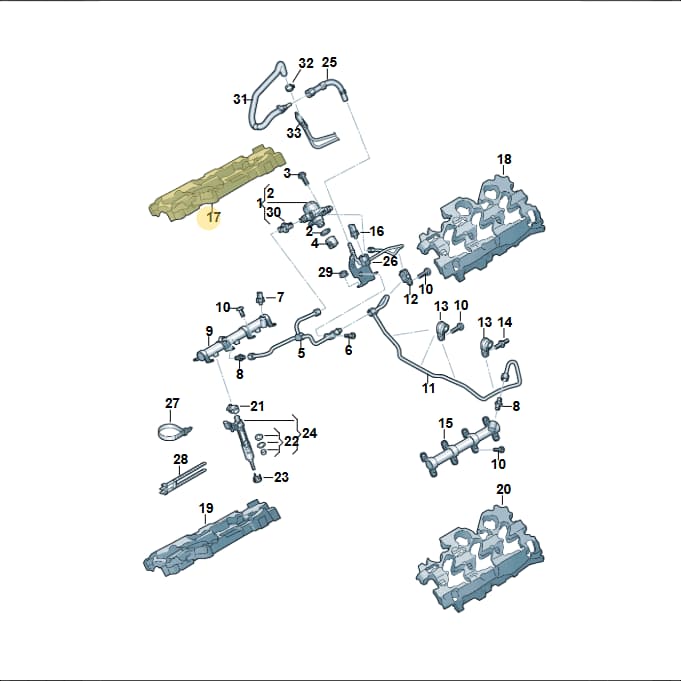

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Carenage, part number 06M133876AK. This part functions as a protective cover or shield within the fuel system assembly. It is located on the fuel rail or intake manifold area, likely to protect fuel lines or injectors. Constructed from durable plastic, it helps to insulate and shield these components. Genuine OEM carenages are designed with exact dimensions to ensure proper fit and protection for critical fuel system parts.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 33.5 × 20.5 × 5.5 cm
- Shipping weight
- 0.1 kg
Parts diagram & fitment
9 vehiclesNoise Insulation — locate 06M133876AK Volkswagen Carenage | Fuel Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly(24)
- 1Pump 06M127026P
- 2Seal Ring WHT005184
- 3Screw N91084201
- 5Fuel Line 06M127507AC
- 6Bolt N10335206
- 7Sensor 06L906054E
- 8Adapter 06E127065N
- 9Rail 06M133316L
- 10Bolt N10451408
- 11Fuel Line 06M127507AB
- 12Bracket 06M127411A
- 13Clamp N0206098
- 14Bolt N91044802
- 15Rail 06M133315L
- 16Sensor 059906054L
- 18Insulation 06M133875AM
- 20Valve 06M906036AE
- 22Repair Kit 06M998907A
- 24Fuel Line 06M127503S
- 25Fuel Line 06M133986AC
- 28Union 06J127065C
- 29Collar Nut N01508210
- 30Insulation 06M133876AL
- 31Insulation 06M133875AN
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
06M133876AK Volkswagen Carenage | Fuel Line is fitted on: Audi A7 2021-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi A8L 2017-2022; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; touareg 2017-2023.
