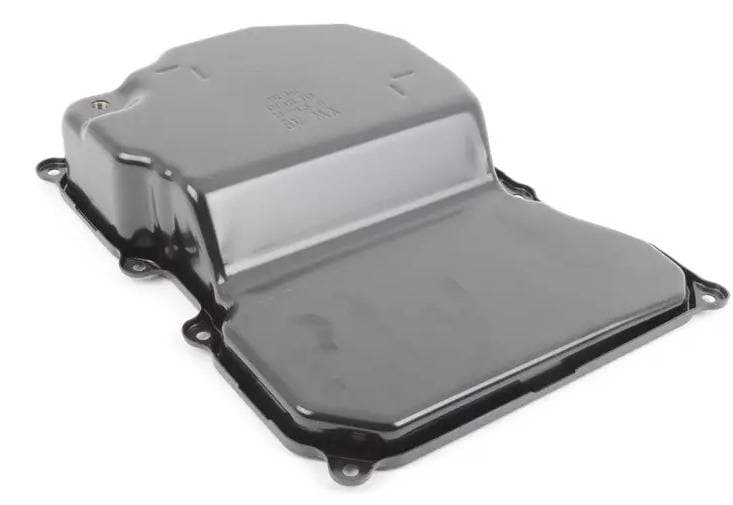

Genuine OEM Audi Transmission Oil Pan Sump, part number 09G321361. This vital component is designed to collect and hold transmission fluid, which is essential for the lubrication and cooling of the transmission's internal components. It is positioned at the bottom of the transmission assembly. Weighing 1.303 kg, this pan is constructed for durability and a leak-free seal. Choosing a genuine OEM transmission oil pan ensures the correct dimensions, mounting points, and material quality for a perfect seal and reliable fluid containment.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Japan
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 33 × 25 × 6.5 cm
- Shipping weight
- 1.3 kg
Parts diagram & fitment

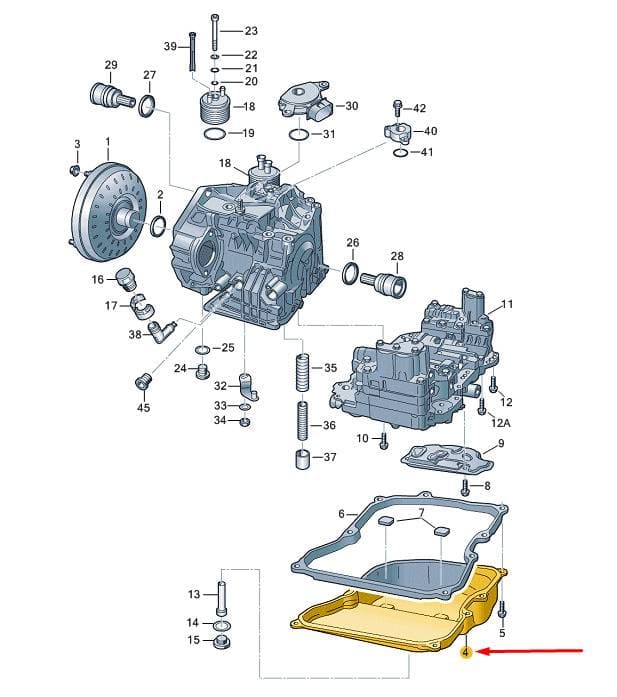

37 vehiclesTransmission Oil Sump — locate 09G321361 Audi Transmission Oil Pan Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(41)
- 1Converter 09G323571E
- 2Seal Washer 09K321243
- 3Part N10169201
- 5Bolt N10156305
- 5Bolt WHT000307
- 6Seal 09G321370
- 7Magnet 09D321368
- 8Bolt N10171102
- 8Bolt WHT000315
- 9Strainer 09G325429
- 10Bolt WHT000311
- 11Valve Body 09G325039X
- 11Valve Body 09G325039A
- 11Valve Body 09G325039AX
- 11Valve Body 09G325039
- 12Bolt N10156005
- 12ABolt WHT000313
- 13Oil Pipe 09G321363
- 14Seal Ring 09D321181B
- 15Screw WHT000310A
- 16Bungs 01M321432A
- 18Oil Cooler 09G409061
- 19Seal Ring 001409069B
- 20Seal Ring 001409069
- 21Washer 001301093B
- 22Seal Ring 09G409539
- 23Screw 09G409067
- 24Plug 001301143
- 24Screw WHT000306
- 25Seal Ring 001409069D
- 25Seal Ring 09G321379
- 26Seal 09G301189
- 31Seal Washer 09D321199
- 32Lever 09A321171A
- 34Collar Nut N10332002
- 35Press Spring 09A409379
- 36Spring 09K325233
- 37Piston 09K325215
- 38Pipe 09G321407
- 39Junction 09G409080
- 45Adapter 09G301469A
Compatible / alternative parts(11)
Diagrams & fitment data powered by oemdiagrams.com
09G321361 Audi Transmission Oil Pan Sump | Genuine OEM is fitted on: New Beetle 2001-2005; POLO "CN"02>06 2002-2006; New Beetle Cabrio. 2003-2005; POLO CLASSIC "CN"03>06 2003-2006; 1J0 platform; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; POLO JIN QIN "CN"06> 2006-; POLO JIN QV "CN"06> 2006-; POLO CLASSIC (AUS) "CN"03>06 2003-2006; Jetta City "Mex"08> 2007-; Lavida 2008-2013; bora 2008-2016; Polo 2009-2012; Polo 2009-2014; Polo 2010-2015; Polo Vivo 2010-2014; New Polo (SVW) 2010-2019; Lavida 2012-2021; Polo 2012-2014; Jetta 1.6 2012-2019; santana 2012-2023; Lavida 2013-2015; Polo 1.6 2013-2022; Polo Vivo 2014-2017; Polo 2014-2022; Polo 1.6 2015-2020; New Lavida 2015-2022; jetta 2.0 2015-2015; Fabia Jingrui 2008-2014; Fabia Scout 2010-2014; Roomster 2010-2015; Rapid Ambition 2011-2021; Rapid 2012-2022; Rapid 2012-2023; Audi TT Coupe/Roadster 2002-2006; Toledo Reference 2012-2015.
