Product overview

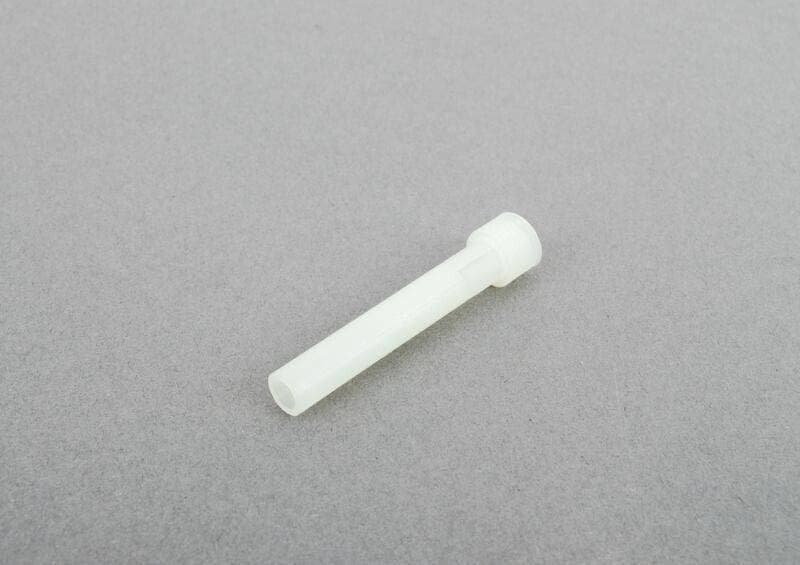

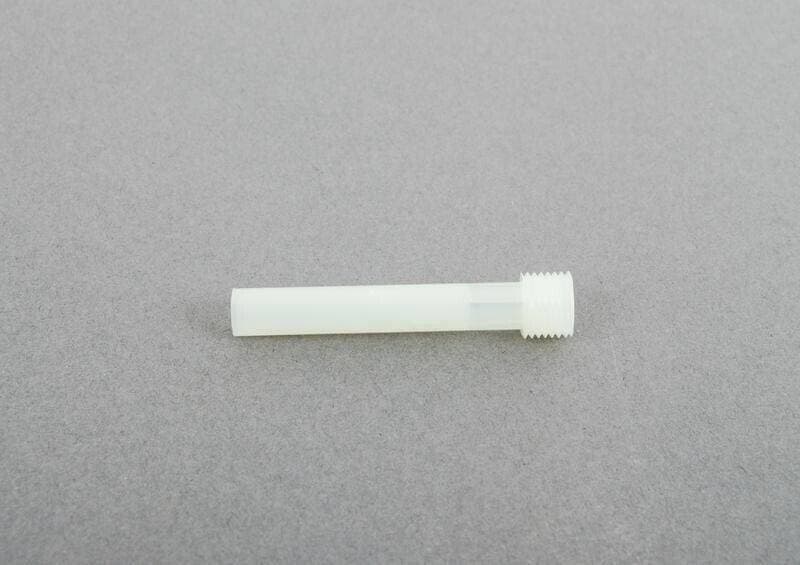

Genuine OEM VAG Transmission Oil Pipe, part number 09G321363. This component is part of the transmission's lubrication system, directing oil flow to critical areas. It is a small, tubular part. Made from durable plastic. Genuine OEM parts are manufactured to precise specifications for optimal fit and function.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 5.2 × 1 × 1 cm
- Shipping weight
- 0 kg
Parts diagram & fitment
21 vehiclesOil Pipe — locate 09G321363 VAG Transmission Oil Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(41)
- 1Converter 09G323571E
- 2Seal Washer 09K321243
- 3Part N10169201
- 4Oil Sump 09G321361
- 5Bolt N10156305
- 5Bolt WHT000307
- 6Seal 09G321370
- 7Magnet 09D321368
- 8Bolt N10171102
- 8Bolt WHT000315
- 9Strainer 09G325429
- 10Bolt WHT000311
- 11Valve Body 09G325039X
- 11Valve Body 09G325039A
- 11Valve Body 09G325039AX
- 11Valve Body 09G325039
- 12Bolt N10156005
- 12ABolt WHT000313
- 14Seal Ring 09D321181B
- 15Screw WHT000310A
- 16Bungs 01M321432A
- 18Oil Cooler 09G409061
- 19Seal Ring 001409069B
- 20Seal Ring 001409069
- 21Washer 001301093B
- 22Seal Ring 09G409539
- 23Screw 09G409067
- 24Plug 001301143
- 24Screw WHT000306
- 25Seal Ring 001409069D
- 25Seal Ring 09G321379
- 26Seal 09G301189
- 31Seal Washer 09D321199
- 32Lever 09A321171A
- 34Collar Nut N10332002
- 35Press Spring 09A409379
- 36Spring 09K325233
- 37Piston 09K325215
- 38Pipe 09G321407
- 39Junction 09G409080
- 45Adapter 09G301469A
Compatible / alternative parts(10)
Diagrams & fitment data powered by oemdiagrams.com
09G321363 VAG Transmission Oil Pipe | Genuine OEM is fitted on: New Beetle 2001-2005; POLO "CN"02>06 2002-2006; New Beetle Cabrio. 2003-2005; Golf Brasil "BR."08> 2007-; POLO CLASSIC "CN"03>06 2003-2006; 1J0 platform; JETTA 06> 2005-; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; POLO CLASSIC (AUS) "CN"03>06 2003-2006; Jetta City "Mex"08> 2007-; TIGUAN 08> 2007-; Tiguan 2009-2019; Tiguan 4Motion 2011-2018; Jetta 1.6 2012-2019; santana 2012-2023; jetta 2.0 2015-2015; Audi TT Coupe/Roadster 2002-2006; Audi Q3 quattro 2011-2015; Audi Q3 2.0 TDI 2014-2019; Rapid 2012-2023.
