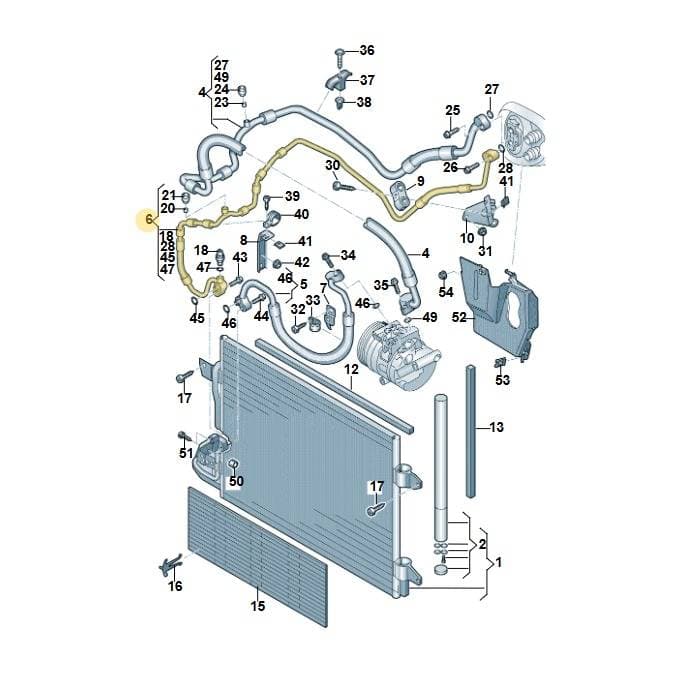

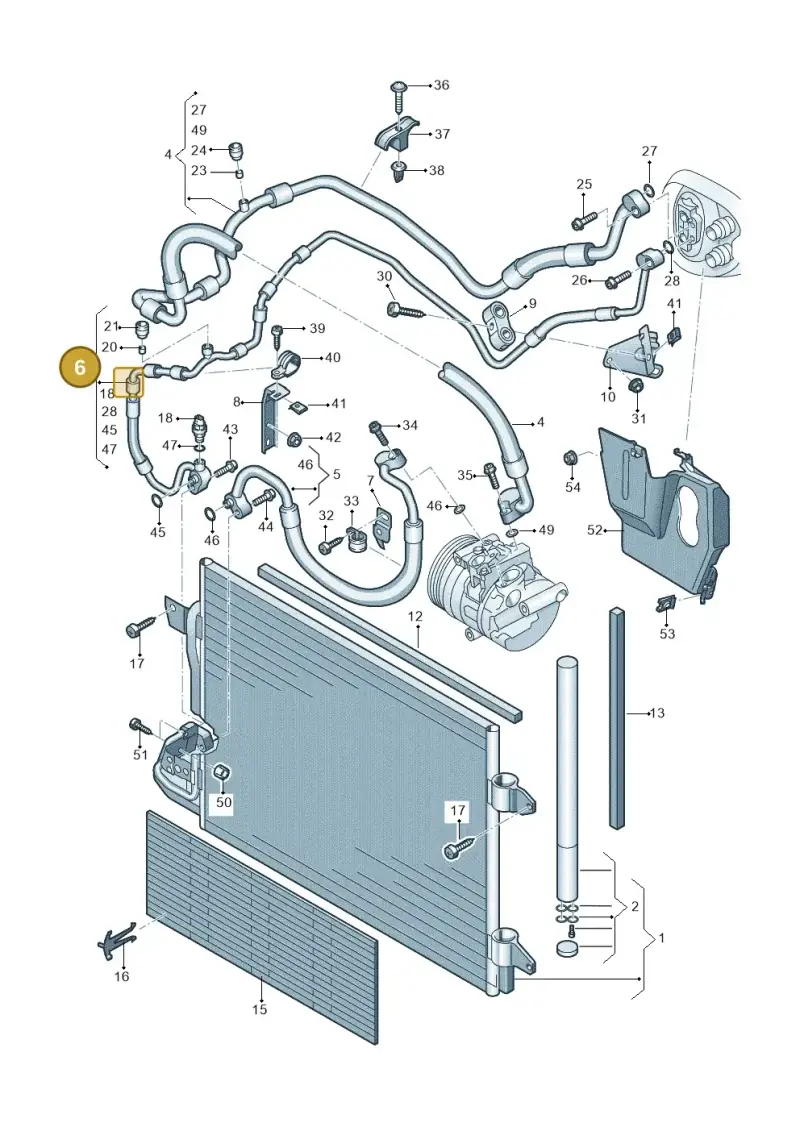

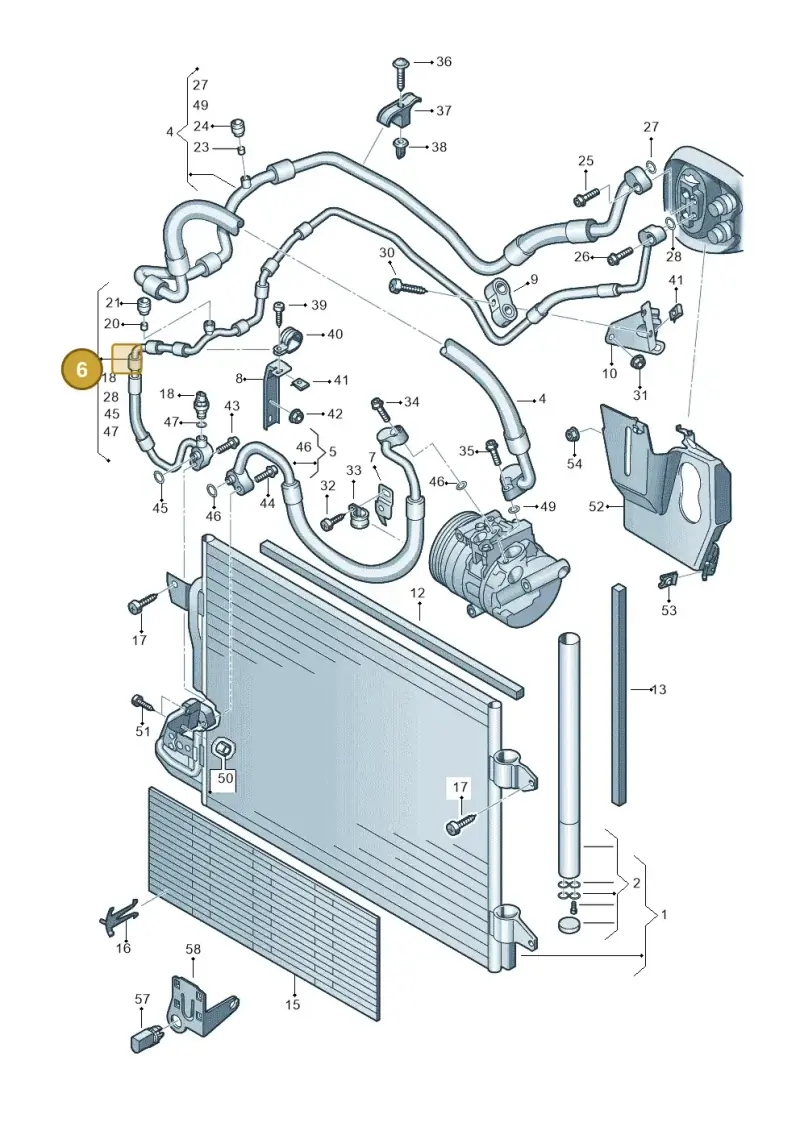

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 1K0820741BA. This line transports refrigerant between components of the vehicle's air conditioning system. It is located at position 6 in the diagram. The line measures 0.95m in length. Genuine OEM ensures the correct material integrity and precise fittings required for safe and efficient refrigerant circulation.
Technical details
- Category
- Heating & A/C
- Country of origin
- Poland
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 95 × 46.5 × 29.5 cm
- Shipping weight
- 0.35 kg
Parts diagram & fitment
28 vehiclesRefrigerant Line — locate 1K0820741BA Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(42)
- 1A C Conden 1K0820411AC
- 2Insert 1K0298403A
- 2Part 5K0298403
- 4Hose 1K0820743BT
- 4Hose 1K0820743CC
- 4Hose 1K0820743CG
- 5Hose 1K0820721BD
- 5Hose 1K0820721BE
- 5Hose 1K0820721BF
- 5Hose 1K0820721AK
- 6Hose 1K0820741AT
- 6Hose 1K0820741BD
- 7Bracket 1K0820769F
- 8Bracket 1K0820769D
- 9Clip 1J0820774
- 10Bracket 1K2820769
- 12Seal 321820061D
- 13Seal 321819017
- 15Grille 1K0820746
- 16Clip 3D0867646
- 17Bolt N90817003
- 18Sensor 1K0959126A
- 20Valve 8E0820855
- 21Part 8A0820871AB
- 24Part 357820809B
- 25Screw N10414401
- 27Seal Ring 4E0260749B
- 28Seal Ring 3D0260749C
- 31Ut Hexagon Nut Self-locking Hexagon Nut N90289105
- 32Screw N0139771
- 33Clamp N0206267
- 36Screw N0439391
- 37Clip 1J0820774A
- 38Part 811807577C
- 40Clamp N10236601
- 41Part N90755701
- 42Collar Nut N90175205
- 46Seal Ring 4E0260749A
- 47Seal Ring 8E0260749
- 49Seal Ring 8E0260749C
- 50Bracket 1K0820758
- 51Screw N10553902
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
1K0820741BA Volkswagen Refrigerant Line | Genuine OEM is fitted on: GOLF 2003-2005; GOLF PLUS 05> 2005-; JETTA 06> 2005-; Golf/Rabbit 2005-2007; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; GOLF VARIANT 07> 2007-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; jetta 2008-2011; golf estate 2009-2013; Golf 2011-2013; Golf Plus 2011-2014; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; Audi A3/S3/quattro 2005-2007; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013; OCTAVIA/COMBI/4X4 04> 2004-; octavia ambiente 2008-2013.
