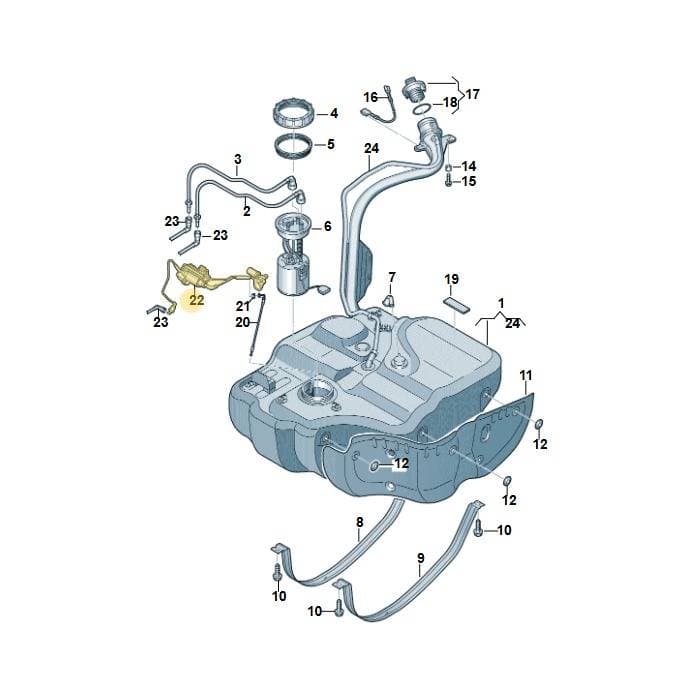

Number 22 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Extraction Unit, part number 1T0201607S. This unit extracts fluids and incorporates a metering pump for accurate delivery. It is located at position 22 in the diagram. Manufactured to precise specifications for reliable performance.
Technical details
- Category
- Engine
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 30 × 16 × 5 cm
- Shipping weight
- 0.49 kg
Parts diagram & fitment
1 vehicleExtraction Unit With Metering Pump — locate 1T0201607S Volkswagen Extraction Unit | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(20)
- 1Container 1T0201055D
- 2Fuel Line 1T0201293F
- 3Fuel Line 1T0201294D
- 4Part 321201375A
- 7End Piece 895201890
- 8Strap 1T0201653
- 9Strap 1T0201654
- 10Bolt N10416003
- 11Heat Sh 1T0201307C
- 12Washer N90335005
- 14Bush 1J0201048C
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550AB
- 18Seal Ring 1K0201557A
- 19Insulation 1T0201535
- 20Pipe 1T0201235B
- 21Clamp N10203501
- 22Part 1T0201607M
- 24Line 1T0201993C
Compatible / alternative parts(6)
Diagrams & fitment data powered by oemdiagrams.com
1T0201607S Volkswagen Extraction Unit | Genuine OEM is fitted on: Touran 2.0 2010-2015.
