Target · Diagram
Find this reference above

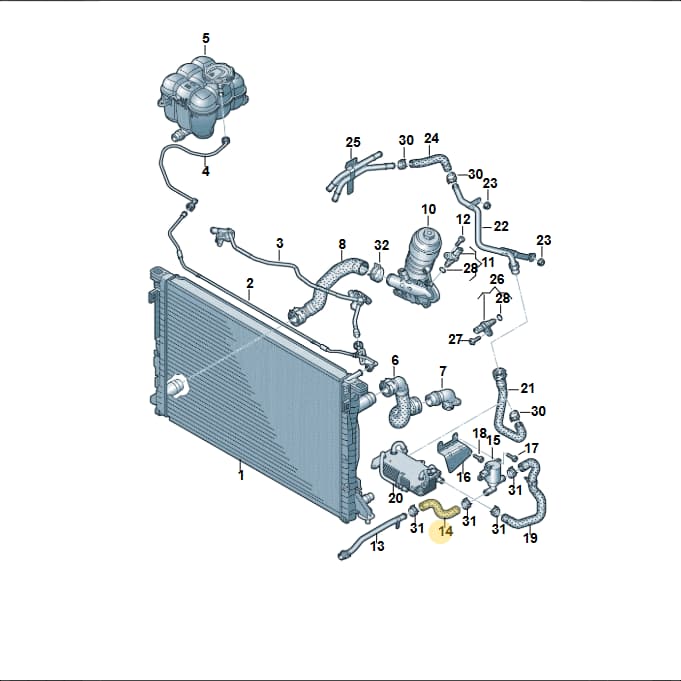

Number 14 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Engine Coolant Hose, part number 4M0122056AC. This hose is a vital component of the engine cooling system, responsible for transporting coolant to maintain optimal engine operating temperatures. It is integrated within the complex network of cooling lines, connecting to the radiator assembly. Weighing 0.051 kg, this hose is designed for durability and resistance to high temperatures and pressures. Using a genuine OEM hose ensures correct material composition, routing geometry, and resistance to coolant chemicals, preventing leaks and maintaining cooling system efficiency.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 40093100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 12 × 9.2 × 3.8 cm
- Shipping weight
- 0.05 kg
Parts diagram & fitment
3 vehiclesCoolant Hose — locate 4M0122056AC Audi Engine Coolant Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 2Line 4M0121081BG
- 4Line 4M0121081CT
- 6Hose 4M0122101CL
- 8Hose 4M0122055BK
- 11Sensor 079919523H
- 11Sensor 079919523
- 12Screw N10170302
- 15Valve 5Q0906457K
- 16Bracket 4M0121233CP
- 17Bolt N10124309
- 18Bolt N91096701
- 19Hose 4M0122447J
- 21Hose 4M0122449AC
- 22Water Pipe 4M0121485CJ
- 23Ut"hex Nut Self-locking With Washer Hex Nut N90570803
- 23Collar Nut N01508210
- 24Hose 4M0121449BK
- 28Seal Ring WHT002287B
- 30Clamp N90686902
- 31Clamp N90687001
- 32Clamp N90926501
Diagrams & fitment data powered by oemdiagrams.com
4M0122056AC Audi Engine Coolant Hose | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
