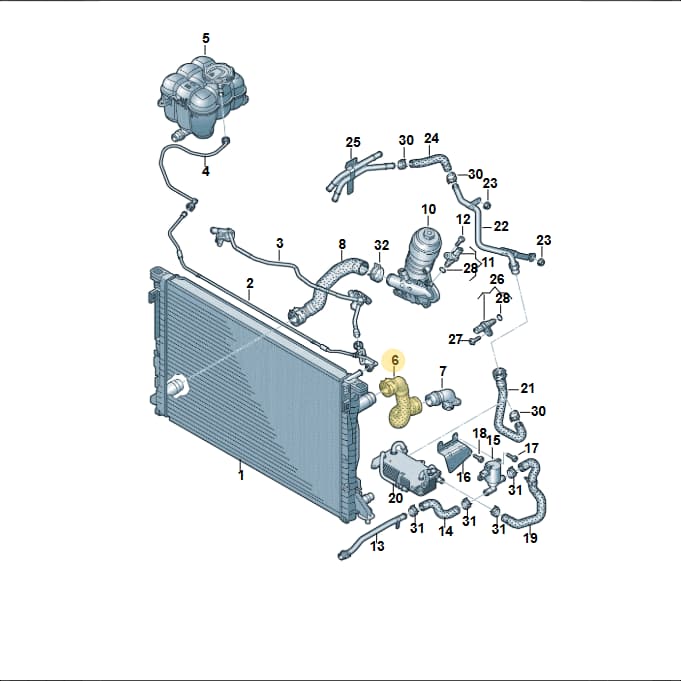

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Coolant Hose with Coupling, part number 4M0122101CL. This hose is designed to distribute engine coolant within the cooling system and features a quick-release coupling for easy installation and maintenance. It is connected to the radiator area. Genuine OEM hoses ensure correct routing geometry, material resistance to heat and chemicals, and reliable sealing for leak-free operation.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 40093100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 34 × 10 × 8.5 cm
- Shipping weight
- 0.31 kg
Parts diagram & fitment
3 vehiclesCoolant Hose With Quick Release Coupling — locate 4M0122101CL Audi Coolant Hose | With Coupling in the official exploded view and explore the surrounding assembly.
Parts in this assembly(19)
- 2Line 4M0121081BG
- 4Line 4M0121081CT
- 8Hose 4M0122055BK
- 11Sensor 079919523
- 12Screw N10170303
- 14Hose 4M0122056AC
- 15Valve 5Q0906457K
- 16Bracket 4M0121233CP
- 17Bolt N10124309
- 18Bolt N91096701
- 19Hose 4M0122447J
- 21Hose 4M0122449AC
- 22Water Pipe 4M0121485CJ
- 23Collar Nut N01508210
- 24Hose 4M0121449BK
- 28Seal Ring WHT002287B
- 30Clamp N90686902
- 31Clamp N90687001
- 32Clamp N90926501
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
4M0122101CL Audi Coolant Hose | With Coupling is fitted on: touareg 2017-2023; Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019.
