Target · Diagram
Find this reference above

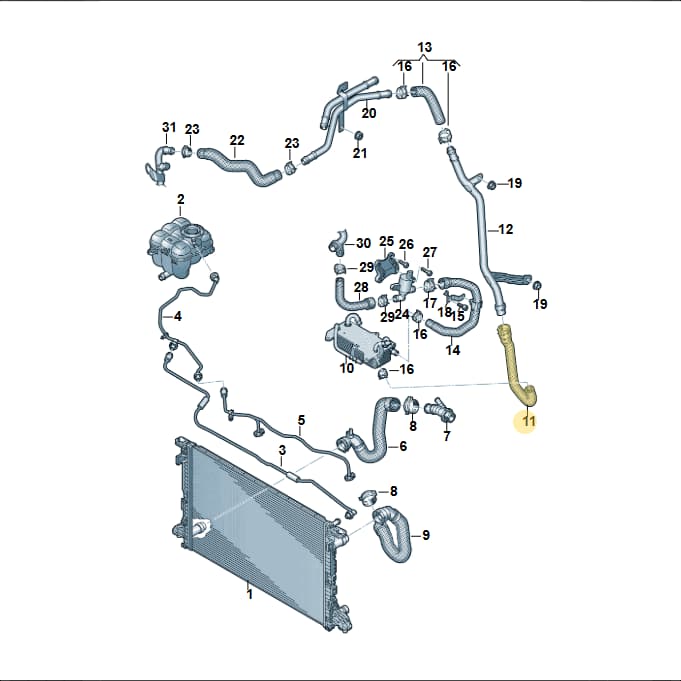

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Coolant Hose with Coupling, part number 4M0122449AC. This essential component is designed to transport coolant efficiently throughout the engine cooling system, maintaining optimal engine operating temperatures. It features a specific coupling for a secure and leak-free connection. Weighing approximately 0.12 kg, this hose is constructed from high-quality, heat-resistant rubber or synthetic materials. Choosing a genuine OEM coolant hose ensures precise routing, correct pressure resistance, and material compatibility with engine coolants, preventing leaks and overheating.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 40093200
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 27 × 15.6 × 4.7 cm
- Shipping weight
- 0.12 kg
Parts diagram & fitment
3 vehiclesCoolant Hose With Quick Release Coupling — locate 4M0122449AC Audi Coolant Hose | Engine Cooling in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 2Line 4M0121081BG
- 4Line 4M0121081CT
- 6Hose 4M0122101CL
- 8Hose 4M0122055BK
- 11Sensor 079919523H
- 11Sensor 079919523
- 12Screw N10170302
- 14Hose 4M0122056AC
- 15Valve 5Q0906457K
- 16Bracket 4M0121233CP
- 17Bolt N10124309
- 18Bolt N91096701
- 19Hose 4M0122447J
- 22Water Pipe 4M0121485CJ
- 23Ut"hex Nut Self-locking With Washer Hex Nut N90570803
- 23Collar Nut N01508210
- 24Hose 4M0121449BK
- 28Seal Ring WHT002287B
- 30Clamp N90686902
- 31Clamp N90687001
- 32Clamp N90926501
Diagrams & fitment data powered by oemdiagrams.com
4M0122449AC Audi Coolant Hose | Engine Cooling is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
