Product overview
Genuine OEM SEAT Bonnet Hinge, part number 5F0823301. This part allows the bonnet to open and close. It is located on the front left side of the vehicle. Genuine OEM bonnet hinges are manufactured to exact specifications, ensuring precise alignment and smooth operation for the life of the vehicle.
Technical details
- Category
- Body Exterior
- Country of origin
- Spain
- Customs (HS) code
- 83021000
- Manufacturer
- SEAT
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 28 × 12 × 9 cm
- Shipping weight
- 0.61 kg
Parts diagram & fitment

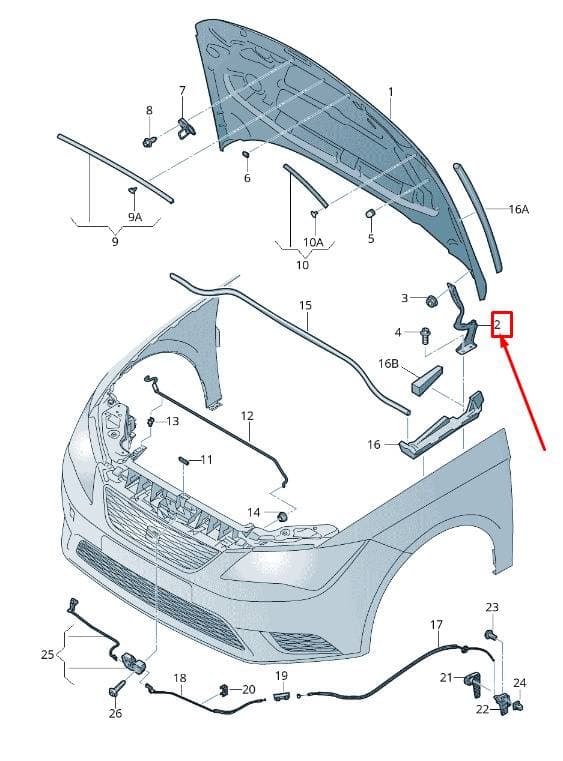

1 vehicleLid Hinge — locate 5F0823301 SEAT Bonnet Hinge | Left in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Superseded by 5F0823301B — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(43)
- 1Bonnet 5F0823031B
- 2HingeLeft5F0823301A
- 2HingeLeft5F0823301B
- 2HingeRight5F0823302
- 2HingeRight5F0823302A
- 2HingeRight5F0823302B
- 3Collar Nut N10609201
- 4Bolt N90822101
- 5Buffer 357827500
- 6Buffer 6H0823481A
- 7Catch Hook 5F0823186A
- 7Catch Hook 5F0823186
- 8Bolt N90820401
- 9Seal 5F0823709B
- 9AClip 6L0839720
- 10Seal 5F0823707A
- 10AClip 1M0837720F
- 11Gasket 5F0823708
- 12Support 5F0823363C
- 12Support 5F0823363D
- 12Support 5F0823363B
- 13Clip 1U0823397
- 14Rubber Bush 171823395
- 15Seal 5F0823723A
- 16Filler PieceRight5F0823722A
- 16Filler PieceLeft5F0823721A
- 16ASeal 5F0823710A
- 16ASeal 5F0823711A
- 16BUnderlay 5F0864714
- 17Lid Cable 5F0823535B
- 17Lid Cable 5F0823535A
- 18Lid Cable 5F0823531C
- 18Lid Cable 5F0823531D
- 18Lid Cable 5F0823531B
- 19Bracket 5N0823411A
- 20Clip N90653901
- 21Handle 6R1823533
- 22Bracket 6R1823633
- 23Screw N10679501
- 24Part N90541001
- 25Lock 5F0823509C
- 25Lock 5F0823509B
- 26Bolt WHT000425
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
5F0823301 SEAT Bonnet Hinge | Left is fitted on: Leon ST Stylance 2012-2016.
