Product overview

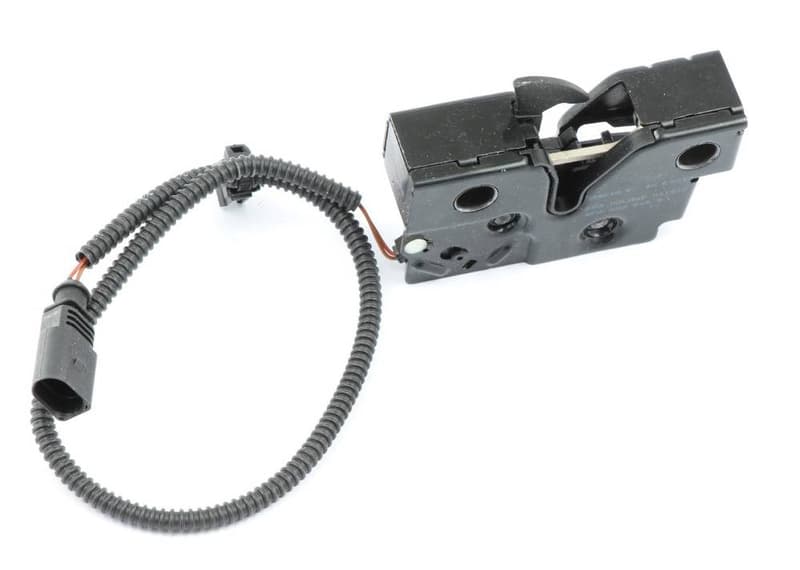

Genuine OEM SEAT Hood Lock Assembly, part number 5F0823509B. This assembly is responsible for securing the vehicle's hood in a closed position, ensuring safety and integrity. It includes a wiring harness for electronic integration with the vehicle's systems. Manufactured with durable materials for long-lasting performance.
Technical details
- Category
- Body Exterior
- Country of origin
- Spain
- Customs (HS) code
- 83012000
- Manufacturer
- SEAT
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 17 × 9.5 × 5 cm
- Shipping weight
- 0.35 kg

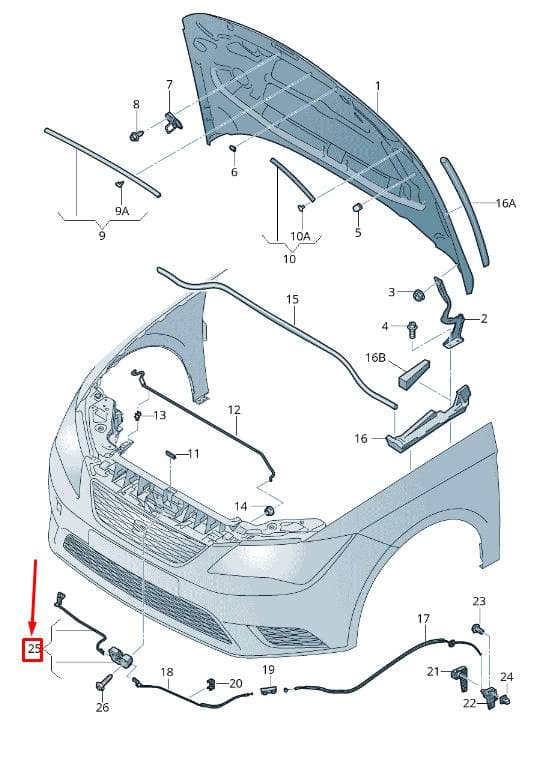

Parts diagram & fitment
1 vehicleBonnet Lock-lower Part — locate 5F0823509B SEAT Hood Lock Assembly | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(43)
- 1Bonnet 5F0823031B
- 2HingeLeft5F0823301A
- 2HingeLeft5F0823301B
- 2HingeRight5F0823302
- 2HingeRight5F0823302A
- 2HingeRight5F0823302B
- 2HingeLeft5F0823301
- 3Collar Nut N10609201
- 4Bolt N90822101
- 5Buffer 357827500
- 6Buffer 6H0823481A
- 7Catch Hook 5F0823186A
- 7Catch Hook 5F0823186
- 8Bolt N90820401
- 9Seal 5F0823709B
- 9AClip 6L0839720
- 10Seal 5F0823707A
- 10AClip 1M0837720F
- 11Gasket 5F0823708
- 12Support 5F0823363C
- 12Support 5F0823363D
- 12Support 5F0823363B
- 13Clip 1U0823397
- 14Rubber Bush 171823395
- 15Seal 5F0823723A
- 16Filler PieceRight5F0823722A
- 16Filler PieceLeft5F0823721A
- 16ASeal 5F0823710A
- 16ASeal 5F0823711A
- 16BUnderlay 5F0864714
- 17Lid Cable 5F0823535B
- 17Lid Cable 5F0823535A
- 18Lid Cable 5F0823531C
- 18Lid Cable 5F0823531D
- 18Lid Cable 5F0823531B
- 19Bracket 5N0823411A
- 20Clip N90653901
- 21Handle 6R1823533
- 22Bracket 6R1823633
- 23Screw N10679501
- 24Part N90541001
- 25Lock 5F0823509C
- 26Bolt WHT000425
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
5F0823509B SEAT Hood Lock Assembly | Genuine OEM is fitted on: Leon ST Stylance 2012-2016.
