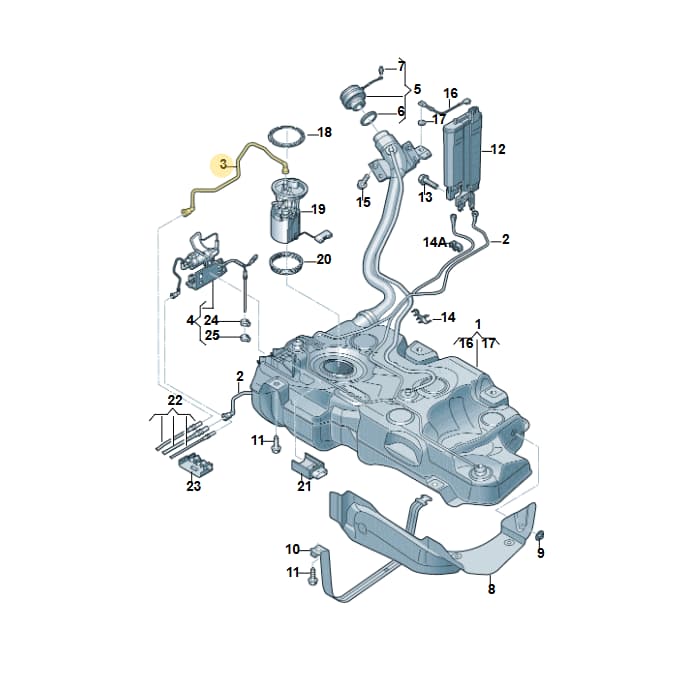

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line, part number 5Q0201293AG. This line is crucial for safely transporting fuel within the vehicle's fuel system, connecting various components to ensure proper fuel delivery. It is positioned within the fuel tank assembly. Measuring approximately 0.355 meters in length, this hose is designed for precise routing and secure connections. Choosing a genuine OEM fuel line ensures correct material composition and resistance to fuel and environmental factors, preventing leaks and maintaining system integrity.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 35.5 × 20.5 × 7.5 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment
7 vehiclesFuel Line — locate 5Q0201293AG Volkswagen Fuel Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Fuel Tank 5Q0201060BH
- 1Fuel Tank 5Q0201060CJ
- 1Fuel Tank 5Q0201060CS
- 1Fuel Tank 5Q0201060AT
- 2Line 5Q0201160F
- 2Line 5Q0201160P
- 3Fuel Line 5Q0201293R
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550H
- 5Part 3AA201550M
- 6Seal Ring 1K0201557A
- 7Clip 1J0201250
- 8Heat Sh 5Q0201307N
- 8Heat Sh 5Q0201307P
- 8Heat Sh 5Q0201307L
- 9Part N91068501
- 10Strap 5Q0201656F
- 11Bolt N90994403
- 12Container 5Q0201801
- 13Bolt N10240003
- 14Clip 5Q0201250C
- 14Clip 5Q0201250G
- 14Clip 5Q0201278A
- 14Clip 5Q0201250B
- 14ADbl Clip 1J0201270A
- 14AClip 1H0201449C
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 5Q0201048A
- 18Part 1K0201375
Diagrams & fitment data powered by oemdiagrams.com
5Q0201293AG Volkswagen Fuel Line | Genuine OEM is fitted on: Leon ST Stylance 2012-2016; Leon ST Stylance 2016-2020; Golf 1.4 BlueMotion 2012-2017; Golf Estate 2013-2017; golf 2.0 2016-2020; Octavia 2017-2020; Audi A3 Sportback 2016-2020.
